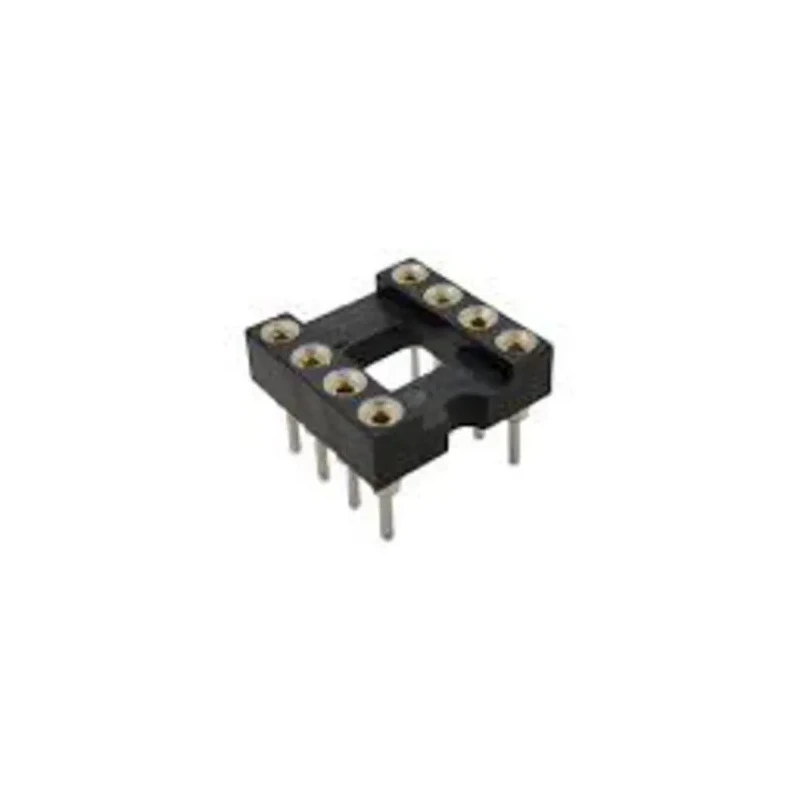

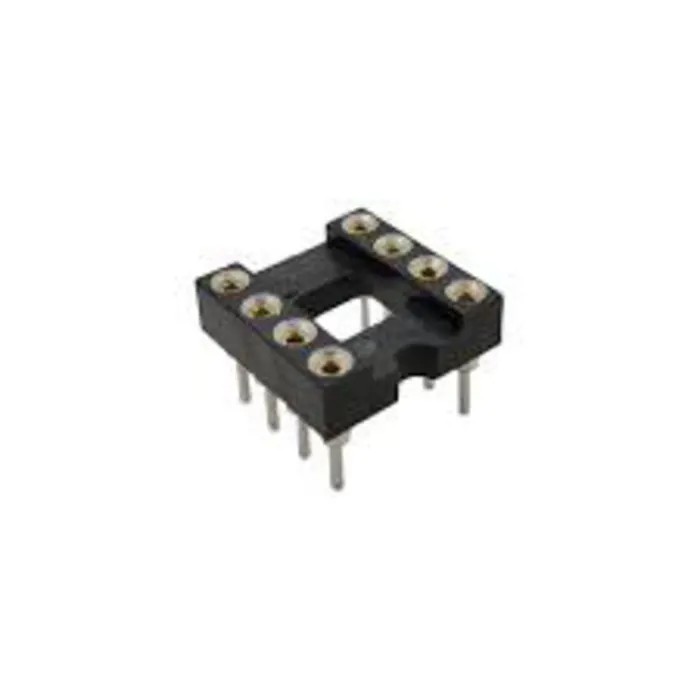

RS PRO 2.54 mm Pitch Vertical 8 Way Through Hole Turned Pin Closed Frame DIL Socket 3A 183-1560

RS PRO 183-1560 is a vertical 8 way DIL socket with a 2.54 mm pitch, designed specifically for electronic component mounting in industrial and laboratory circuits.

This high-quality socket is built with a stamped spring copper insert that ensures a strong and consistent connection, allowing for repeated IC insertions and removals without degradation. The inner contact plating is gold, combined with a tin-plated outer sleeve to provide stability in Hi-Temp soldering processes up to 260°C. The thermoplastic housing material is UL94V-0 rated for high temperature resistance, making it suitable for demanding environments.

The socket supports a current rating of 3A and a maximum operating voltage of 60V, suitable for a wide range of low voltage electronic applications. It operates reliably between -55°C and 105°C, ensuring performance even in extreme temperature conditions. Its vertical and through hole mount configuration allows easy integration into printed circuit boards for robust assembly.

RS PRO's DIL sockets, including model 183-1560, are engineered for industrial and manufacturing use where precision, durability, and ease of use are critical. Their resistance to solder flux and wicking reduces PCB faults and enhances reliability in production line environments.

This DIL socket supports a 2.54 mm pitch with 8 contacts for dual in line package applications. It features a closed frame construction to prevent flux intrusion and solder wicking during soldering. The socket is rated for 3 amperes current and 60 volts voltage suitable for low voltage circuits.

Contacts comprise precision stamped internal spring contacts with gold plated inner contacts and tin-plated outer sleeves. The socket is moulded from UL94V-0 thermoplastic to endure operating temperatures from -55°C to 105°C.

Its vertical orientation and through hole mounting ensure compatibility with PCB insertion or socket mounting. This socket enables multiple insertions and withdrawals without losing connection integrity. It is manufactured with brass and beryllium copper alloy contacts for durability and conductivity.

Widely used in electronics manufacturing, lab instrumentation, and industrial automation, this RS PRO DIL Socket delivers dependable socketing solutions for dual in line packages. Choose RS PRO for trusted performance and quality assurance in electronic components and connectors.
