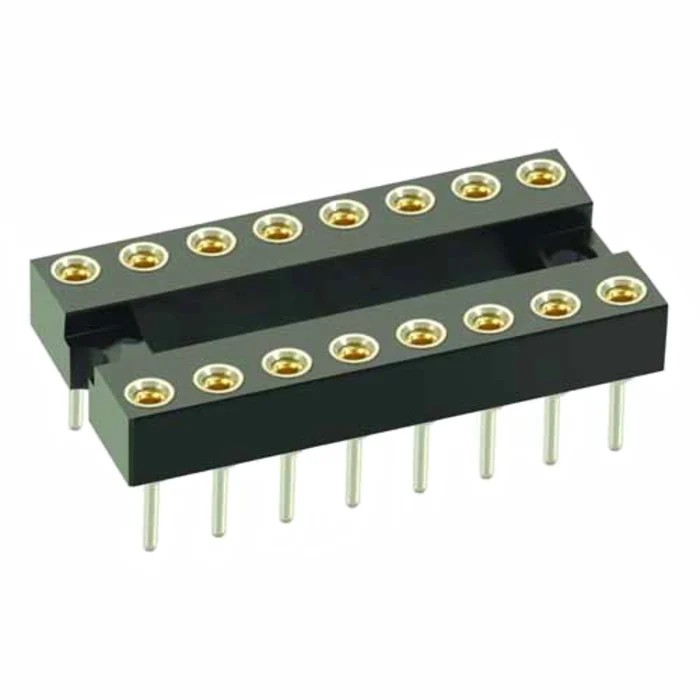

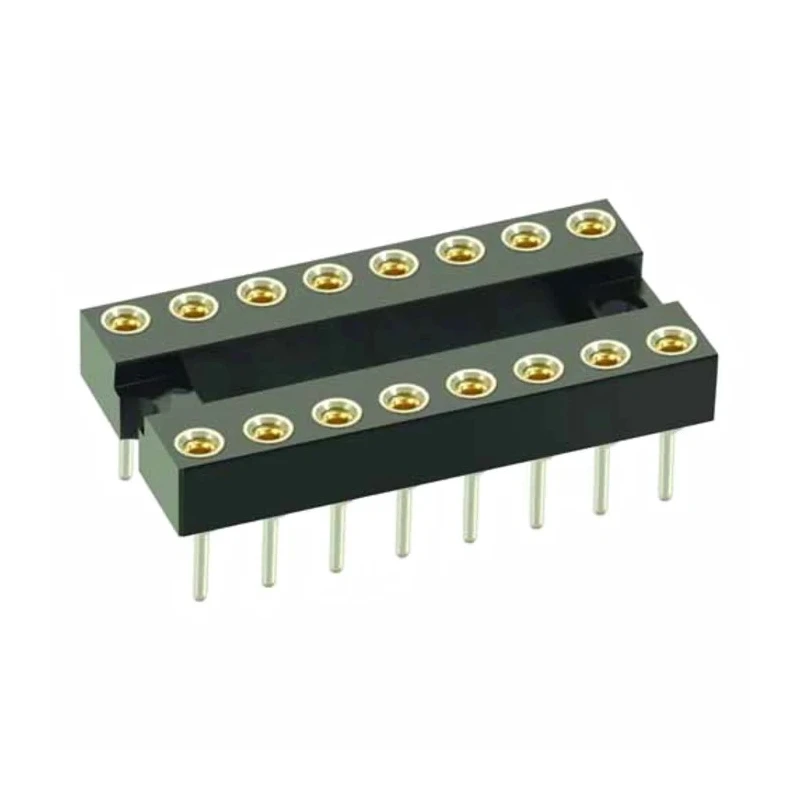

HARWIN DIL Socket 42 Contacts 7.62 mm Pitch Vertical Through Hole Open Frame 1A Current D2928-42

Free Delivery in India | Lowest Global Shipping Charges

HARWIN DIL Socket 42 Contacts 7.62 mm Pitch Vertical Through Hole Open Frame 1A Current D2928-42

Name: HARWIN DIL Socket 42 Contacts 7.62 mm Pitch Vertical Through Hole Open Frame 1A Current D2928-42
Brand: HARWIN
SKU: 414638
Price: 3.2 USD
Availability: InStock



Category DIL Socket Brand HARWIN Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V dc
Brand	HARWIN
Orientation	Vertical
Current	1A
Frame Type	Open Frame
Length	35.5mm
Model	D2928-42
Depth	2.8mm
Width	10.02mm
Mount Type	Through Hole
Housing Material	Plastic
Contact Material	Beryllium Copper Alloy
Series	D2
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	7.62mm
Contact Plating	Gold, Tin over Nickel
Number of Contacts	42
Pin Type	Standard
Row Width	7.62mm

Key Features

Constructed with beryllium copper alloy contacts for excellent conductivity.
Gold and tin plated contacts over nickel for enhanced corrosion resistance.
Rated for 1 amp current and 150V DC voltage.
Temperature range from -55°C to 125°C supports various operating environments.
Plastic housing ensures durable and reliable insulation.
Suitable for solder termination types and compatible with mating pins of 0.40-0.56 mm diameter.
Designed for industrial and electronic component assembly applications.
Manufactured in Switzerland with high quality standards.

Product Description

HARWIN D2928-42 DIL Socket is a precision electronic component designed for industrial and electronic assembly applications. This vertical through hole socket features 42 contacts spaced at a 7.62 mm pitch, facilitating reliable connections in compact printed circuit board designs.

The socket uses high-performance beryllium copper alloy contacts plated with gold and tin over nickel to provide excellent electrical conductivity and corrosion resistance. Its open frame design and plastic housing combine durability with ease of solder termination, suitable for demanding manufacturing environments.

Rated for 1 amp current and 150V DC voltage, the socket supports operating temperatures from -55°C to 125°C, making it ideal for a wide range of industrial, laboratory, and electronic device applications.

Its compact footprint with dimensions of 35.5 mm length, 10.02 mm width, and 2.8 mm depth enables integration into tight PCB layouts while ensuring compatibility with mating pins of 0.40-0.56 mm diameter. This product is manufactured in Switzerland with strict quality control to meet high industry standards.

Constructed with beryllium copper alloy contacts providing excellent conductivity. Gold and tin plated contacts over nickel ensure corrosion resistance. Rated at 1 amp current and 150V DC voltage. Operates within temperature range of -55°C to 125°C.

Plastic housing offers durable insulation. Compact dimensions for space-saving PCB designs. Solder termination type for stable connectivity. Compatible with 0.40-0.56 mm diameter mating pins. Manufactured in Switzerland adhering to quality standards.

This HARWIN D2928-42 socket is suitable for electronics manufacturing, industrial applications, and prototyping in various professional and commercial sectors. It is a reliable and durable component for DIL socket needs.
