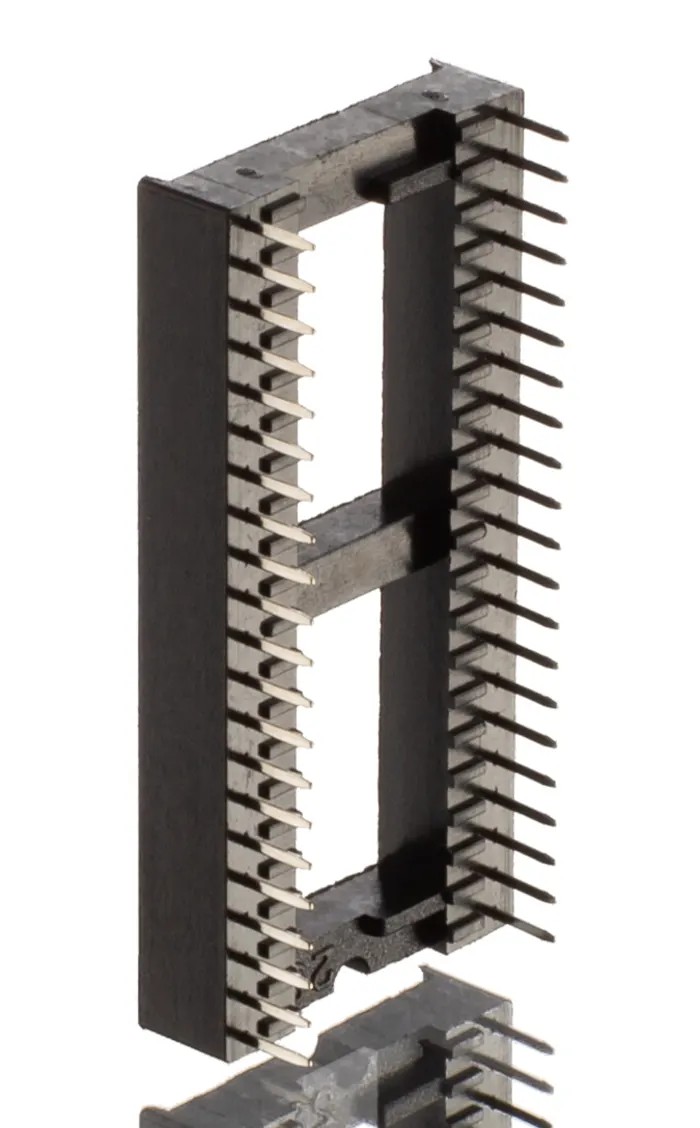

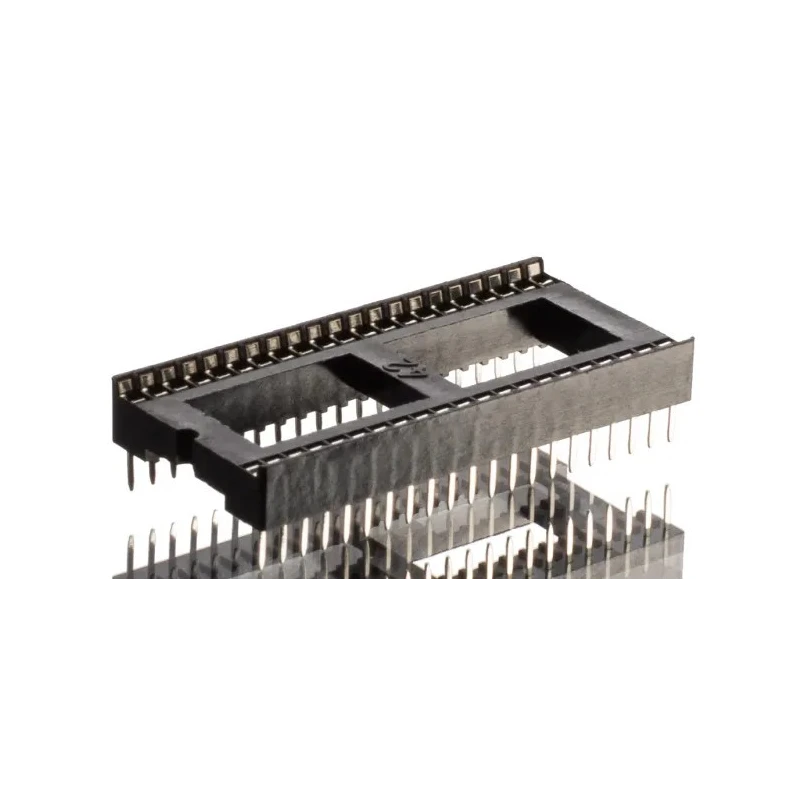

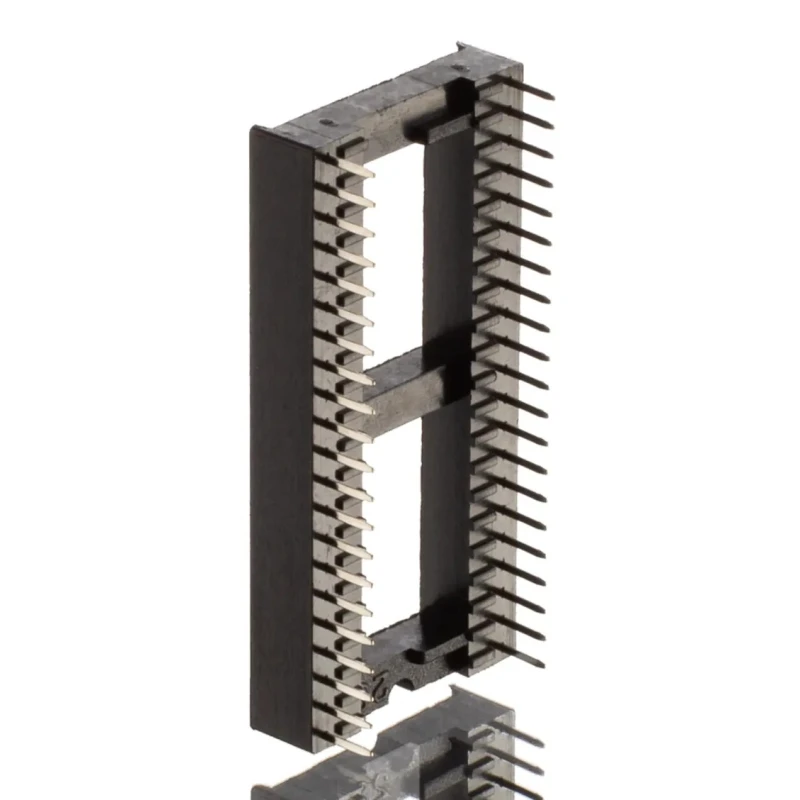

Winslow 1.77 mm Pitch Vertical 42 Way Through Hole Stamped Pin Open Frame DIL Socket 10A W3142/607TRC

Winslow W3142/607TRC is a high-quality vertical 42 way through hole Dual Inline (DIL) stamped pin open frame socket designed for reliable PCB connections in electronic components and power connectors applications. It features a 1.77 mm pitch with a current rating of 10A, suited for industrial and laboratory-grade electronic assemblies.

The socket's 42 stamped pins are tin-plated phosphor bronze, providing excellent conductivity and corrosion resistance. The open frame design combined with a vertical orientation simplifies soldering and replacement in electronic manufacturing and prototyping environments.

The housing is made from durable polybutylene terephthalate material which offers robust insulation and mechanical strength. The compact dimensions of 37.33 mm length, 15.24 mm row width, 5.05 mm width, and 17.78 mm depth make it suitable for dense PCB layouts and space-constrained applications.

This DIL socket operates reliably up to 150°C maximum temperature, supporting demanding industrial, commercial electronic, and testing applications. Its solder termination type ensures secure and stable PCB mounting.

This socket supports 42 pinned contacts with a 1.77 mm pitch spacing. Compact open frame construction allows easy component access and inspection. The tin-plated phosphor bronze contacts deliver consistent electrical performance.

Polybutylene terephthalate housing enhances electrical insulation and mechanical protection. Suitable for use in electronic manufacturing, lab testing, and industrial control devices. Vertical orientation optimizes PCB assembly processes and layouts.

Designed and manufactured to meet general industrial quality without specific certifications. Product originates from Taiwan, Province of China, assuring high production standards.

This DIL socket is ideal for engineers and technicians designing or repairing electronic circuit boards requiring reliable connector solutions. Browse more DIL Sockets and electronic connectors on EnvMart for professional and industrial needs.
