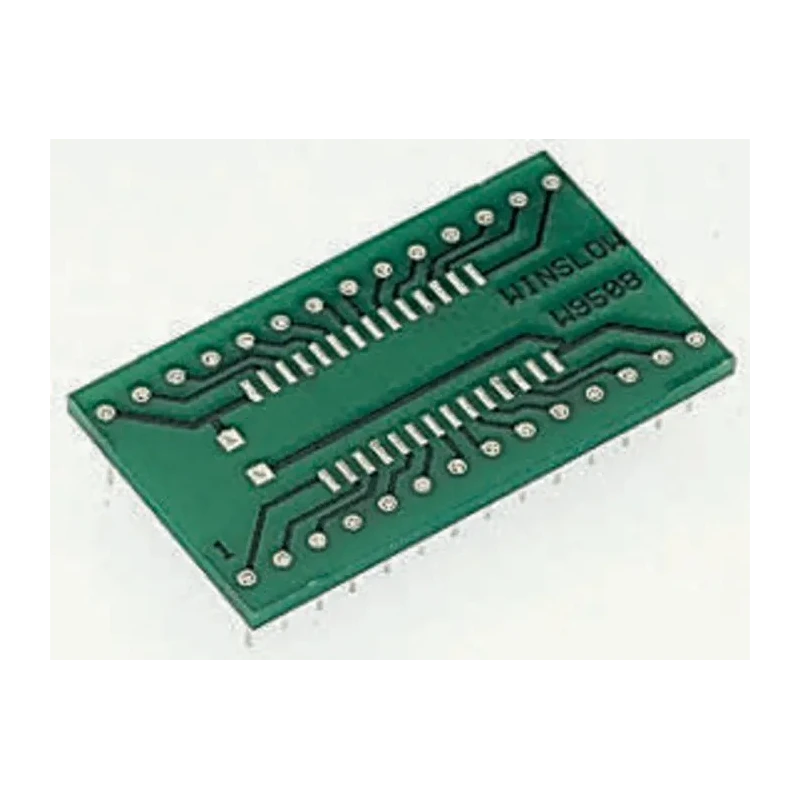

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9513RC
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Winslow |
| Orientation | Straight |
| Model | W9513RC |
| Mount Type | Through Hole |
| Housing Material | FR4 |
| Contact Material | Brass |
| Series | SOP-DIP Iss5 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Connection Gender A | Female |
| Number of Contacts A | 24 |
| Connection Gender B | Male |
| PCB | Epoxy Fibreglass FR4 |
| Connection A | SOP |
| Connection B | DIP |
Key Features
- This adapter supports 24 contacts on both SOP and DIP sides.
- Contacts are made of brass with gold over nickel plating for reliable conductivity.
- The housing material is FR4 epoxy fiberglass, ensuring durability and insulation.
- Mount type is through hole with a straight orientation suitable for PCB mounting.
- Series designation is SOP-DIP Iss5, supporting standard interfacing.
- Designed and manufactured in the United Kingdom.
- It allows developers to convert SOIC packages to DIP, reducing redesign costs.
- Ideal for application in electronics manufacturing and prototyping environments.
Product Description

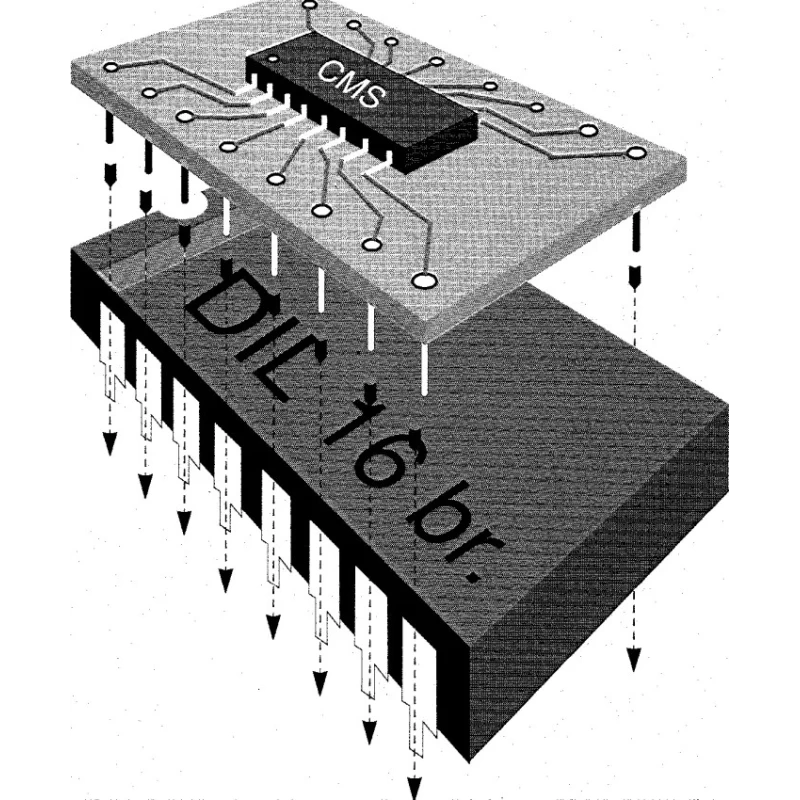

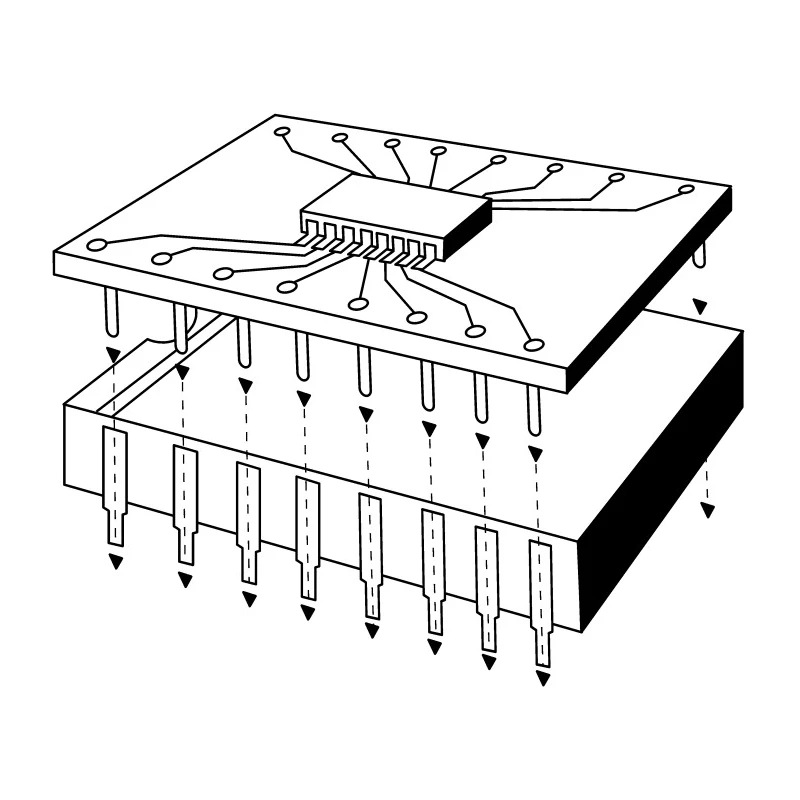

Winslow W9513RC Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter is designed to convert Small Outline Integrated Circuit (SOIC) packages to standard Dual Inline Package (DIP) format. This adapter provides an efficient solution for electronic prototyping and development by allowing seamless interfacing between SOP and DIP components.
The adapter features 24 female contacts on the SOP side and 24 male contacts on the DIP side, all plated with gold over nickel to ensure excellent electrical conductivity and corrosion resistance. The contact material is brass, known for its mechanical strength and reliability. The housing is made from FR4 epoxy fiberglass, giving the adapter structural integrity and electrical insulation suitable for printed circuit boards.
This product supports a 2.54 mm pitch for through hole mounting, with a straight orientation that aligns pins precisely with the PCB holes. It is part of the SOP-DIP Iss5 series, ensuring compatibility with common package standards in electronics manufacturing.
Manufactured in the United Kingdom, this adapter is ideal for reducing development costs by avoiding the need for new PCB designs when switching between SOP and DIP packages. Typical applications include laboratory, industrial manufacturing, electronic testing, and prototyping environments where flexibility and precision are required.
This adapter supports 24 contacts on both SOP and DIP sides. Contacts are made of brass with gold over nickel plating for reliable conductivity. The housing material is FR4 epoxy fiberglass, ensuring durability and insulation.
Mount type is through hole with a straight orientation suitable for PCB mounting. Series designation is SOP-DIP Iss5, supporting standard interfacing. Designed and manufactured in the United Kingdom. It allows developers to convert SOIC packages to DIP, reducing redesign costs.
Ideal for application in electronics manufacturing and prototyping environments. Provides robust and precise pin connection without requiring board redesign. Explore EnvMart's extensive selection of electronic components and IC socket adapters to find solutions tailored to your specific design and manufacturing needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Winslow W9513RC IC socket adapter supports a pitch of 2.54 mm.
This model features 24 contacts on both the SOP and DIP sides.
The contacts are made of brass with gold over nickel plating, while the housing is constructed from FR4 epoxy fiberglass.
The adapter is designed for through hole mounting with a straight orientation suitable for PCB installation.
It is part of the SOP-DIP Iss5 series, ensuring compatibility with standard interfacing.
The connection gender for the SOP side is female, while the DIP side has male connections.
The Winslow W9513RC is manufactured in the United Kingdom.
It is ideal for use in electronics manufacturing, prototyping, laboratory, and industrial testing environments.
The gold over nickel plating enhances electrical conductivity and provides corrosion resistance for reliable performance.
The FR4 epoxy fiberglass housing material provides structural integrity and electrical insulation suitable for printed circuit boards.
