Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9504RC

Free Delivery in India | Lowest Global Shipping Charges

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9504RC

Name: Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter SOP to DIP W9504RC
Brand: Winslow
SKU: 147879



Category IC Socket Adapter Brand Winslow Condition New

Specifications

Country of Origin	United Kingdom
Brand	Winslow
Orientation	Straight
Model	W9504RC
Mount Type	Through Hole
Housing Material	FR4
Contact Material	Brass
Pitch	2.54mm
Contact Plating	Gold over Nickel
Connection Gender A	Female
Number of Contacts A	18
Connection Gender B	Male
PCB	Epoxy Fibreglass FR4
Connection A	SOP
Connection B	DIP

Key Features

Features 18 female contacts on SOP side and 18 male contacts on DIP side.
Gold over nickel plated brass contacts ensure reliable conductivity and corrosion resistance.
Mount type is through hole with straight orientation for easy PCB integration.
Housing is made of FR4 epoxy fiberglass PCB material for durability and insulation.
Compatible with SOIC to DIP socket adaptations, facilitating prototyping and development.
Manufactured in the United Kingdom, ensuring quality craftsmanship.

Product Description

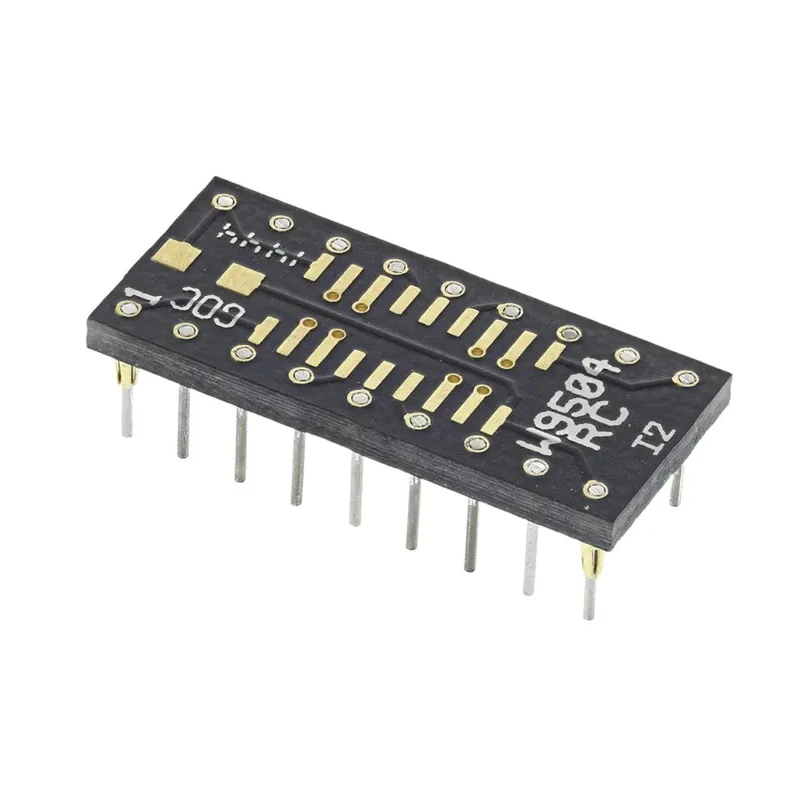

Winslow W9504RC IC Socket Adapter SOP to DIP is a specialized electronic component designed to convert Small Outline Package (SOP) integrated circuits into a dual in-line package (DIP) format. The adapter features a 2.54 mm pitch and is constructed with a through-hole mount design, providing a straight orientation for straightforward PCB installation. This product is highly useful for developers and engineers aiming to adapt SOP ICs for use with DIP socketed circuits, avoiding costly redesigns of PCB layouts.

The adapter has 18 female contacts on the SOP side and 18 male contacts on the DIP side. The contact material is brass with gold over nickel plating, which enhances conductivity and corrosion resistance, ensuring reliable electrical connections over the life of the device.

The housing is made of FR4 epoxy fiberglass, a standard PCB substrate material that offers excellent mechanical stability and electrical insulation. This robust build makes the adapter suitable for a wide range of industrial, laboratory, and commercial electronic applications, including prototyping and testing environments.

Designed and manufactured in the United Kingdom, the W9504RC maintains high production standards. It conforms to no specific approvals or standards but employs quality materials and stable connection methods.

18 contact points on each side for compatibility with corresponding IC and DIP devices. Straight through-hole mounting style supports conventional PCB assembly. Gold plated contacts improve signal integrity and minimize oxidation effects.

FR4 housing enhances durability and insulation properties. Suitable for use in electronics manufacturing, laboratory testing, prototyping, and educational settings.

This IC socket adapter is part of a range of 'Adaptics' that facilitate seamless conversion between different IC package styles to reduce development time and cost. It is an essential tool for electronics engineers needing to interface SOP packaged ICs with through-hole DIP socket systems without PCB redesign.

Explore a wide selection of IC Socket Adapters at EnvMart for your industrial and engineering requirements. Browse our catalog for diverse component adaption solutions to advance your electronics projects.
