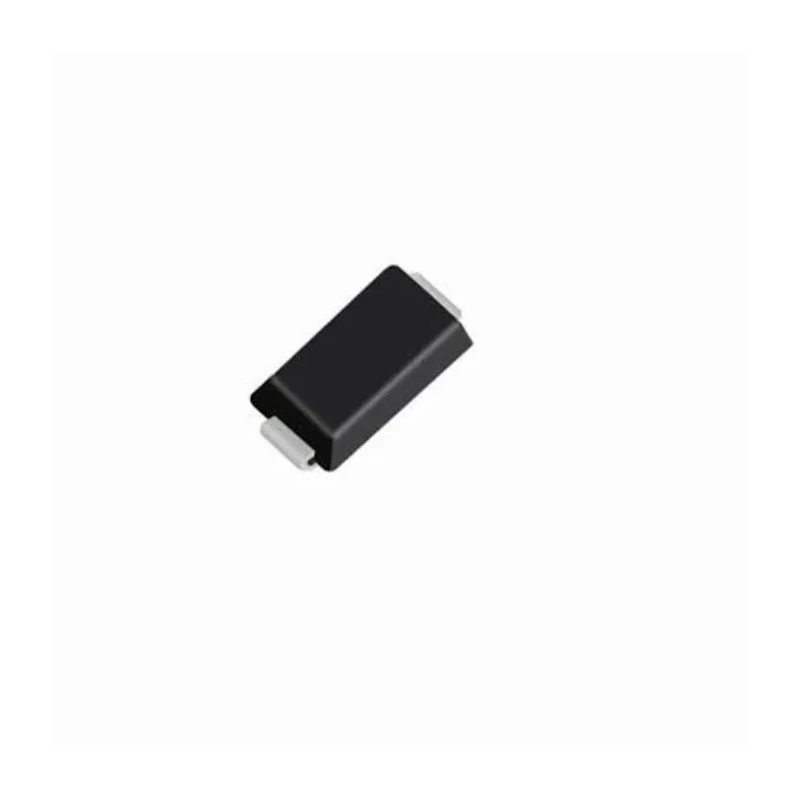

DiodesZetex Surface Mount Fast Recovery Single Diode 200 V 1 A 2-Pin DO-219AA Package FES1DE-7

DiodesZetex FES1DE-7 is a surface mount fast recovery diode designed for use in power factor correction circuits, secondary rectification, and freewheeling applications. It provides ultra-fast switching speeds suitable for high-frequency AC-AC and DC-DC converter circuits.

This single diode device has a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 200 volts, ensuring robust performance under demanding electrical conditions. It features a low forward voltage drop of 0.92 V, contributing to energy efficiency during operation.

The diode is housed in a compact DO-219AA package with precise dimensions of 1.2 mm height, 1.2 mm width, and 2 mm length, enabling space-saving PCB designs. It demonstrates excellent temperature tolerance, operating reliably between -55°C minimum to 105°C maximum temperatures, suitable for high-temperature consumer and industrial applications.

Its fast recovery time of 25 nanoseconds supports efficient switching with minimal losses. The device also boasts a peak non-repetitive forward surge current of 30 A, allowing it to withstand transient electrical surges without damage.

Constructed with a glass passivated die, the diode ensures low leakage current for stable operation. It complies with automotive standards AEC-Q100, AEC-Q101, and AEC-Q200, making it appropriate for automotive electronics and other rigorous industrial environments.

The diode features a DO-219AA package suitable for compact PCB mounting. Maximum continuous forward current is 1 ampere for reliable performance. Offers fast recovery time of 25 nanoseconds for efficient switching. Operates within a temperature range of -55°C to 105°C, ideal for high-temperature applications.

Has a low forward voltage drop of 0.92 V to reduce power losses. Peak non-repetitive forward surge current is 30 A, supporting transient conditions. The device has low leakage current due to glass passivated die construction.

Compact dimensions include 1.2 mm height, 1.2 mm width, and 2 mm length. AEC-Q100, AEC-Q101, and AEC-Q200 automotive standards compliant for automotive and industrial use.

This diode is suitable for industrial power electronics, automotive electronics, consumer electronics, and manufacturing applications. It ensures high efficiency and reliable fast recovery switching needed in modern electronic circuit designs.
