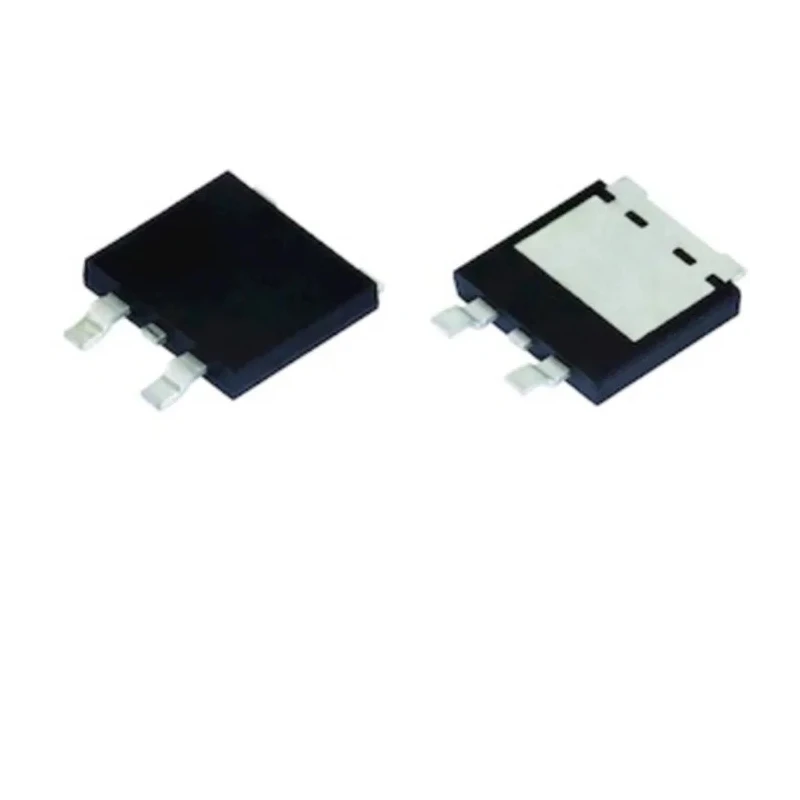

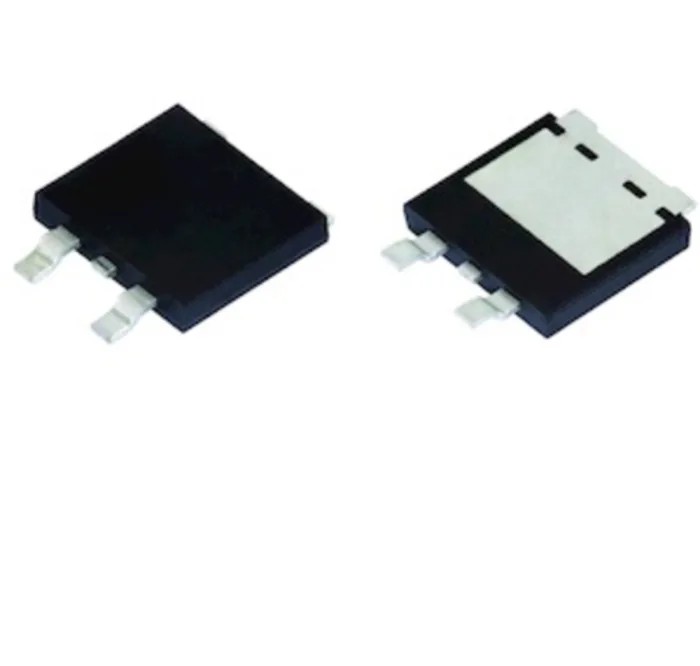

Vishay Schottky Diode 170 V 30 A 3-Pin TO-263AC Surface Mount V30D170C-M3/I

Name: Vishay Schottky Diode 170 V 30 A 3-Pin TO-263AC Surface Mount V30D170C-M3/I
Brand: Vishay
SKU: 412369
Price: 2.37 USD
Availability: InStock



Category Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.08mm
Length	12.93mm
Model	V30D170C-M3/I
Width	10.2mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	TO-263AC
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	3
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	30A
Peak Reverse Repetitive Voltage Vrrm	170V
Diode Configuration	2x Common Cathode Pair
Rectifier Type	Schottky
Peak Reverse Current Ir	10mA
Peak Non-Repetitive Forward Surge Current Ifsm	260A
Maximum Forward Voltage Vf	0.88V

Key Features

The diode has a maximum continuous forward current of 30 A.
It provides a peak reverse repetitive voltage of 170 V for reliable operation.
Low forward voltage drop of 0.88 V minimizes power dissipation.
The 3-pin TO-263AC surface mount package suits automated PCB assembly.
Operates effectively between -40°C and 175°C including automotive-grade use.
Capable of handling peak non-repetitive forward surge current of 260 A.
Designed as a 2x common cathode pair for high-frequency switching applications.
Features a compact footprint with length 12.93 mm and width 10.2 mm.

Product Description

Vishay V30D170C-M3/I Schottky Diode is a high-performance discrete semiconductor designed for surface mounting in power electronics. It delivers a maximum continuous forward current of 30 A and can withstand peak reverse repetitive voltage of 170 V, making it suitable for demanding power rectification tasks in automotive, industrial, and commercial electronic equipment.

This diode employs a trench MOS barrier technology which ensures low forward voltage drop of 0.88 V, thereby effectively minimizing power dissipation and improving energy efficiency. The 3-pin TO-263AC package conforms to automated placement processes and supports compact PCB designs.

Operating temperature range from -40°C to 175°C and automotive AEC-Q101 qualification indicates its robustness and reliability under harsh environmental conditions. The diode’s 2x common cathode pair configuration and 10 mA peak reverse current characteristic suit high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.

Physical dimensions are 12.93 mm in length, 10.2 mm in width, and 1.08 mm in height, providing a compact footprint for space-constrained designs. It can handle a peak non-repetitive forward surge current of 260 A, ensuring durability against transient overload events.

Low forward voltage drop and power losses enhance efficiency. High surge current ratings protect against transient spikes. Schottky diode technology supports fast switching speeds required in power electronics. RoHS compliance ensures the component is environmentally friendly.

Suitable for industrial, automotive, and commercial electronic systems.

This diode is manufactured in China and adheres to RoHS standards. It is an ideal choice for designers requiring reliable, high-current Schottky diodes with a compact standard package.
