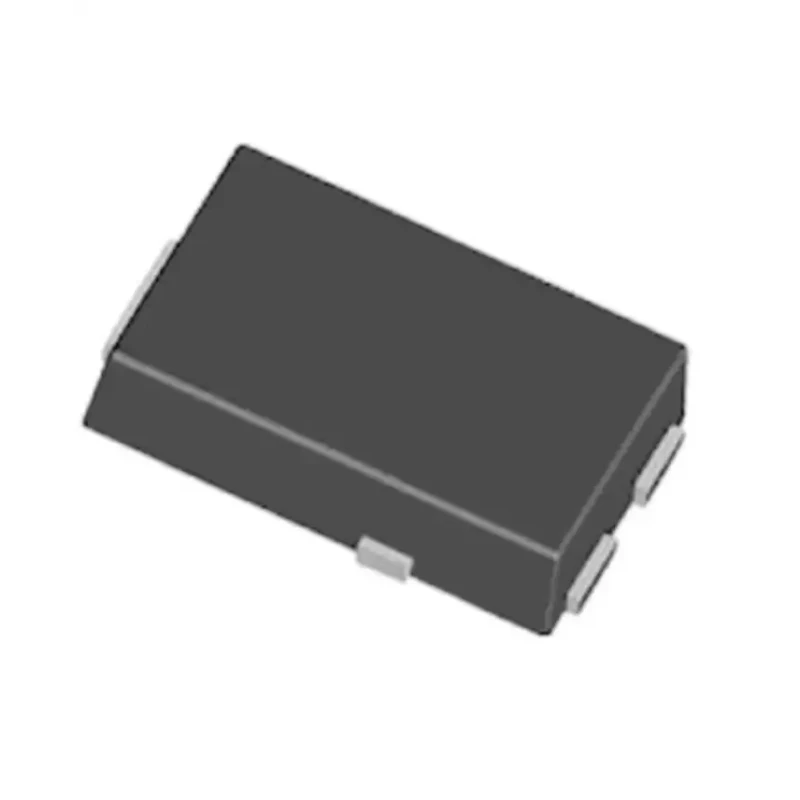

Vishay 60 V 15 A Schottky Diode Single 3-Pin Surface Mount TO-277 V15PM6-M3/H
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 4.75mm |
| Brand | Vishay |
| Height | 4.8mm |
| Length | 6.65mm |
| Model | V15PM6-M3/H |
| Width | 1.2mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-277 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 6.5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 220A |
| Maximum Forward Voltage Vf | 0.64V |
Key Features
- Single diode configuration optimized for low power losses.
- TO-277 surface mount package providing compact dimensions.
- Peak repetitive reverse voltage of 60 V and peak reverse current 6.5 mA.
- Maximum forward voltage of 0.64 V minimizing energy dissipation.
- Wide operating temperature range from -40°C up to 175°C for reliable performance.
- Designed for automotive applications with AEC-Q101 qualification.
- Peak non-repetitive forward surge current of 220 A.
- Low leakage current suitable for high frequency inverter and DC/DC converter applications.
Product Description
Vishay V15PM6-M3/H is a high-performance Schottky diode designed for surface mount applications requiring efficient rectification. Rated for a maximum continuous forward current of 15 A and peak reverse voltage of 60 V, it minimizes forward voltage drop, thus reducing power dissipation in circuits.
The device is housed in a TO-277 package providing compact dimensions with a pin count of three and measured physical attributes including length of 6.65 mm, width of 1.2 mm, height of 4.8 mm, and a diameter of 4.75 mm. It supports a broad operating temperature range from -40°C to 175°C, ensuring stable operation in harsh industrial and automotive environments. The diode features a peak non-repetitive surge current capacity of 220 A to withstand transient high load conditions.
Engineered with Trench MOS Barrier Schottky technology, this rectifier diode allows for low forward voltage drop and fast switching speeds, ideal for high frequency inverters, power supply polarity protection, and DC/DC converter circuits commonly found in commercial, industrial, and automotive sectors.
The V15PM6-M3/H diode complies with the RoHS directive, reflecting Vishay’s commitment to environmental safety. The product is qualified to the automotive standard AEC-Q101, further guaranteeing quality and robustness for automotive system integration.
Single diode configuration optimized for low power losses. TO-277 surface mount package providing compact dimensions. Peak repetitive reverse voltage of 60 V and peak reverse current 6.5 mA. Maximum forward voltage of 0.64 V minimizing energy dissipation.
Wide operating temperature range from -40°C up to 175°C for reliable performance. Designed for automotive applications with AEC-Q101 qualification. Peak non-repetitive forward surge current of 220 A. Low leakage current suitable for high frequency inverter and DC/DC converter applications.
Compliant with RoHS environmental standards. Compact size with length 6.65 mm, width 1.2 mm, height 4.8 mm, and diameter 4.75 mm.
This Schottky Diode is widely utilized in industrial power electronics, automotive power management, and laboratory electronics projects requiring fast, efficient rectification. For additional product options and related Vishay components, explore the Vishay product category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the V15PM6-M3/H Schottky diode is 15 A.
This diode has a peak reverse repetitive voltage rating of 60 V.
The maximum forward voltage drop for this diode is 0.64 V, which helps minimize energy dissipation.
The operating temperature range for this model is from -40°C to 175°C.
This diode is housed in a TO-277 surface mount package.
The peak non-repetitive forward surge current for this model is 220 A.
This diode has a pin count of three.
The V15PM6-M3/H is qualified to the automotive standard AEC-Q101.
The peak reverse current for this diode is 6.5 mA.
Yes, this diode is compliant with the RoHS directive.
The dimensions of this diode are 6.65 mm in length, 1.2 mm in width, and 4.8 mm in height, with a diameter of 4.75 mm.
This Schottky diode is suitable for high frequency inverters, DC/DC converters, and automotive power management applications.
