| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.05mm |
| Length | 2.5mm |
| Model | SD103BWSQ-7-F |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | SD103BWSQ |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-323 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 350mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.5A |
| Maximum Forward Voltage Vf | 0.37V |
| Peak Reverse Recovery Time trr | 10ns |

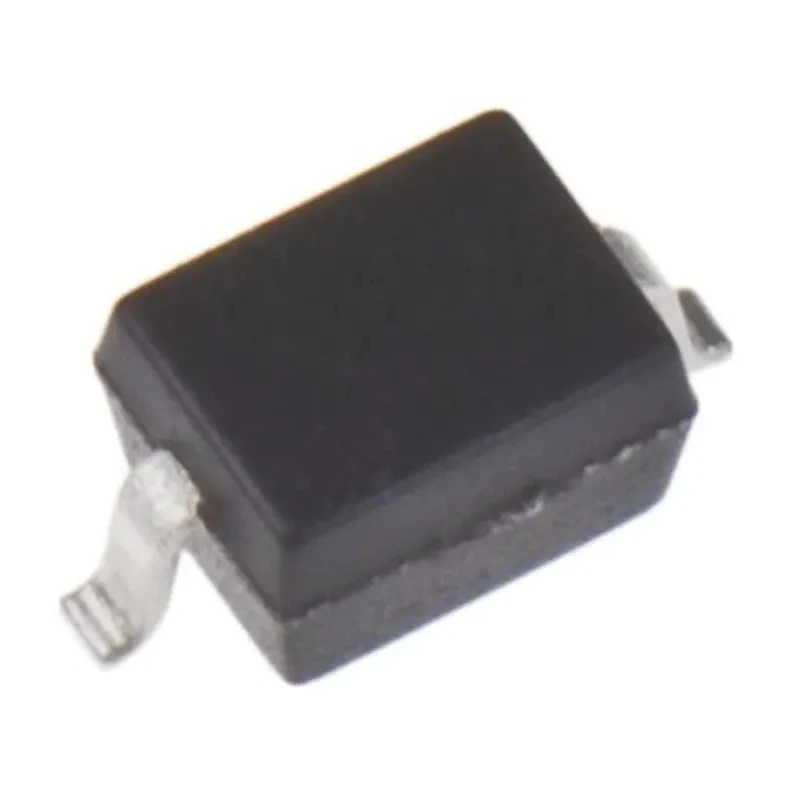

DiodesZetex SD103BWSQ-7-F is a high-performance surface mount Schottky diode designed for applications demanding reliable and efficient diode characteristics. It offers a maximum peak reverse voltage of 30 V and sustains a continuous forward current of up to 350 mA, making it suitable for various electronic circuitry requiring fast and efficient rectification.
This single diode features a compact 2-pin SOD-323 package optimized for surface mounting in space-constrained assemblies. The diode's low forward voltage drop of 0.37 V improves power efficiency, while its ultra-fast switching properties are evidenced by a peak reverse recovery time of only 10 nanoseconds, reducing switching losses in high-frequency circuits.
The device conforms to the automotive AEC-Q101 standard, making it ideal for automotive electronics such as polarity protection, switching, and recirculating diode applications. It operates reliably over a wide temperature range from -65°C to 125°C, ensuring robustness in demanding environments.
Further benefits include its guard ring structure that provides transient voltage protection and low reverse current leakage at a maximum peak reverse current of 5 µA. The diode's small dimensions (2.5 mm length, 1.3 mm width, 1.05 mm height) support high-density PCB layouts in industrial, automotive, instrumentation, and communication equipment.
This diode utilizes a Schottky barrier design for fast switching performance. Features a low maximum forward voltage drop of 0.37 V for improved efficiency. Surface mount package type SOD-323 with a compact 2-pin configuration.
Meets automotive AEC-Q101 standard ensuring reliability in automotive applications. Operates reliably between -65°C to 125°C ambient temperature range. Includes guard ring construction for protection against transient voltages.
Offers negligible reverse recovery time of 10 ns to minimize switching losses. Pin dimensions: length 2.5 mm, width 1.3 mm, and height 1.05 mm ensuring compact footprint. This component is suitable for applications in automotive electronic modules, power management circuits, switching power supplies, and general purpose rectification.
