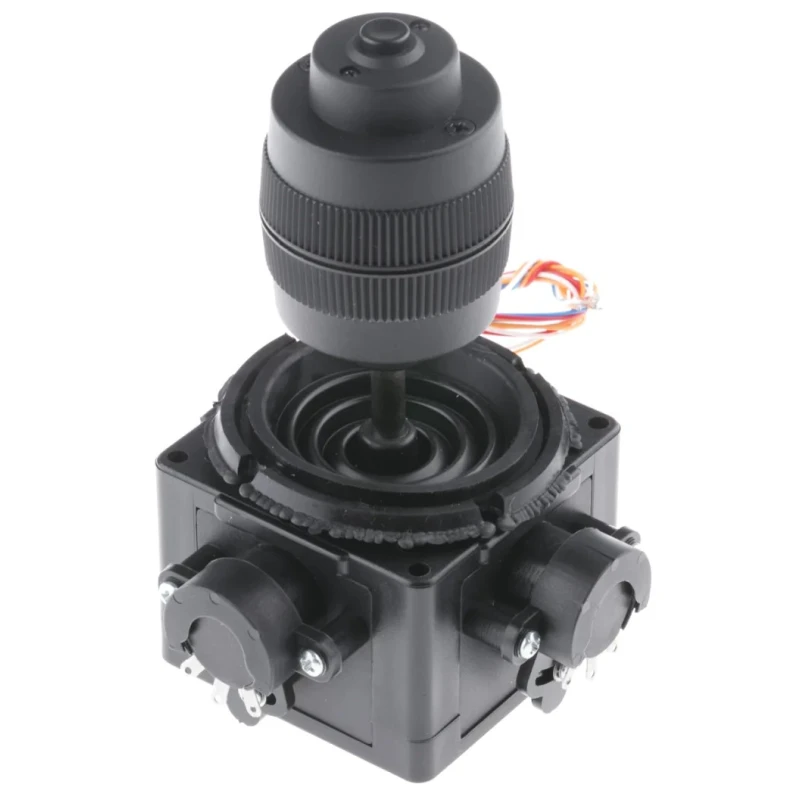

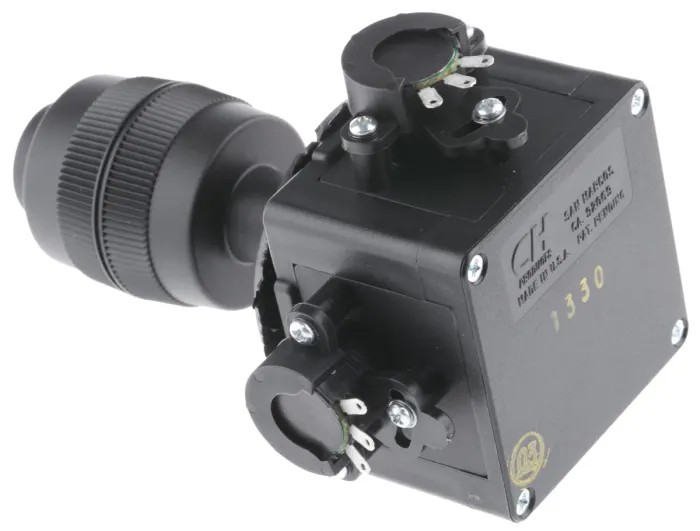

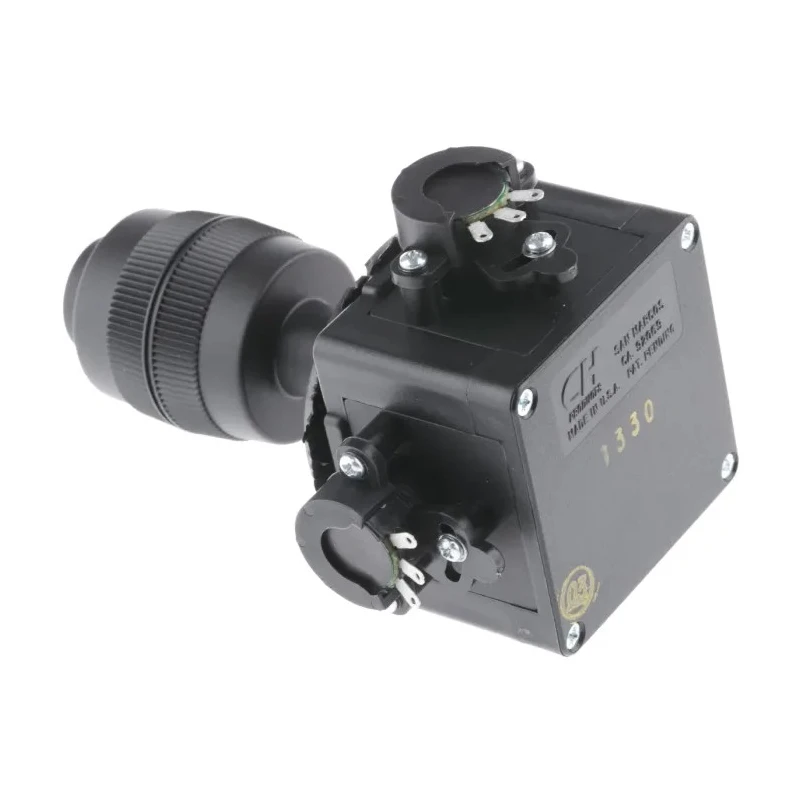

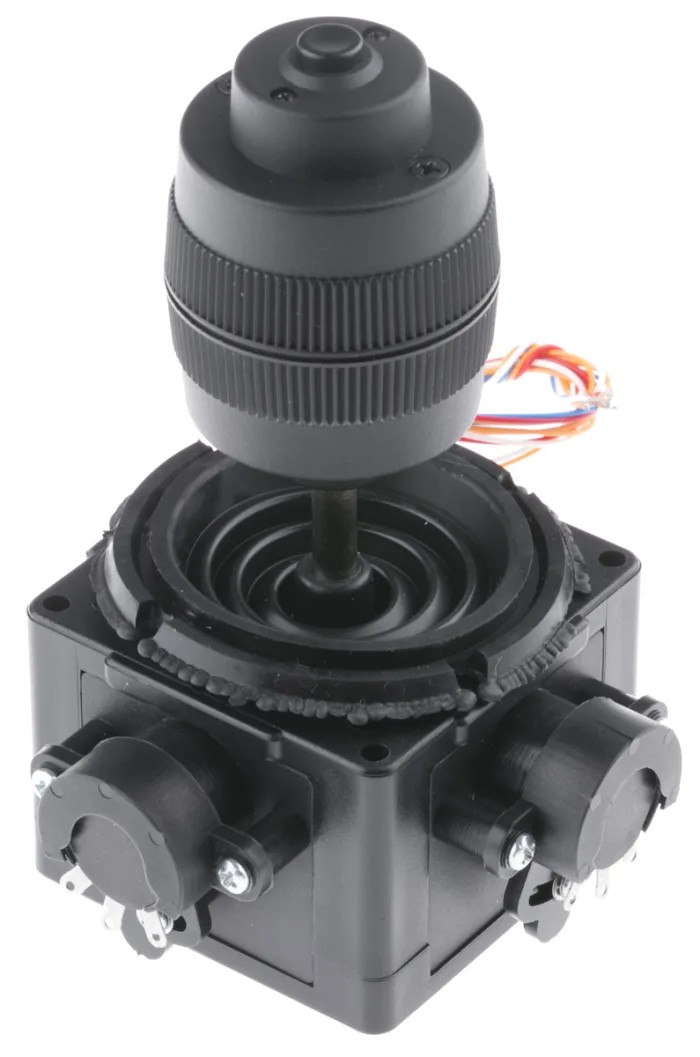

CH Products 3-Axis Potentiometer Joystick Passive S40L091P-50

CH Products S40L091P-50 3-Axis Potentiometer Joystick Passive is a compact and low-profile device designed for precise multidimensional control. Built with high-quality components, this joystick employs a stainless steel ball pivot system and high-grade plastic bearing surfaces to ensure long-lasting durability and accurate return-to-center repeatability. The device operates with self-centering functionality and offers ±30° joystick travel on three axes, making it suitable for a variety of control applications.

This joystick is equipped with potentiometers rated at 5kΩ resistance with ±20% tolerance and a power rating of 0.5W, providing stable and reliable electrical output. Its extended mechanical life of 5 million operations ensures longevity in demanding industrial environments. The joystick is designed to function reliably within operating temperatures ranging from -25°C to 85°C, thus suitable for harsh and variable conditions.

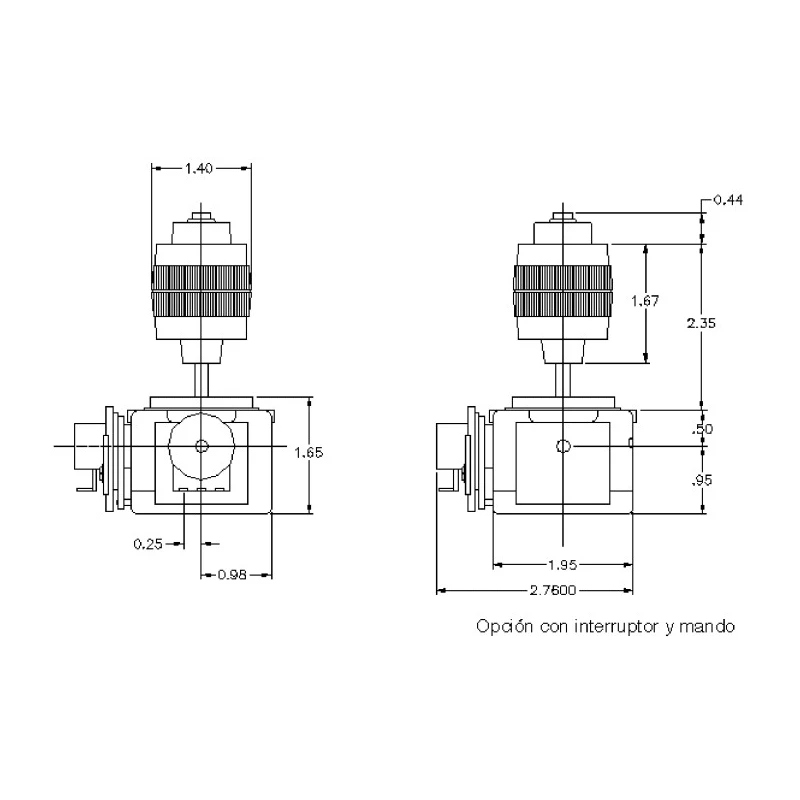

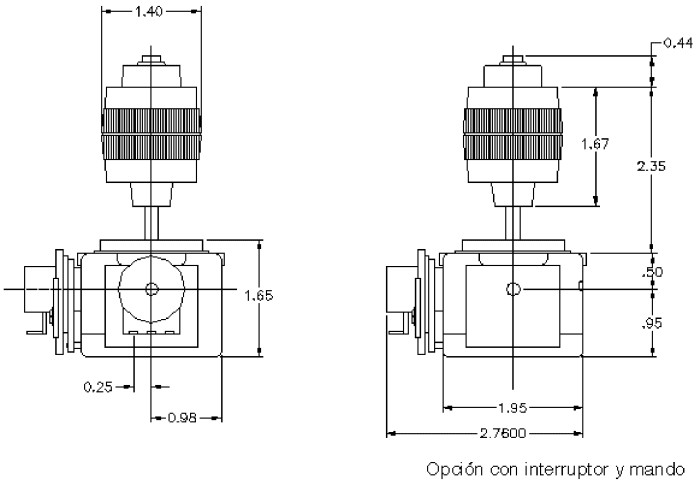

The S40L091P-50 model includes a two-piece panel sealing kit to accommodate panel thicknesses from 1.3 mm to 4.75 mm, enhancing sealing and protection when mounted. The third axis control is achieved via rotational displacement of the handle and features an optional SPST switch, which can be included based on application needs.

Ideal for use in industrial, robotics, electric mobility, and CCTV control systems, this joystick prioritizes accuracy and low operating force, making it effective for precise control tasks. The design meets RoHS standards, ensuring compliance with environmental directives.

The joystick supports three axis control with a ±30° travel range. High-grade materials such as stainless steel and quality plastics improve longevity and performance. Potentiometers are rated at 5kΩ ±20% resistance and 0.5W power rating.

Mechanical life expectancy reaches 5 million operations. Operating temperature ranges from -25°C to 85°C for robust environmental tolerance. Includes a sealing kit for panel thickness between 1.3 mm and 4.75 mm. Applications include electric wheelchairs, CCTV, robotics, and other precision control fields.
