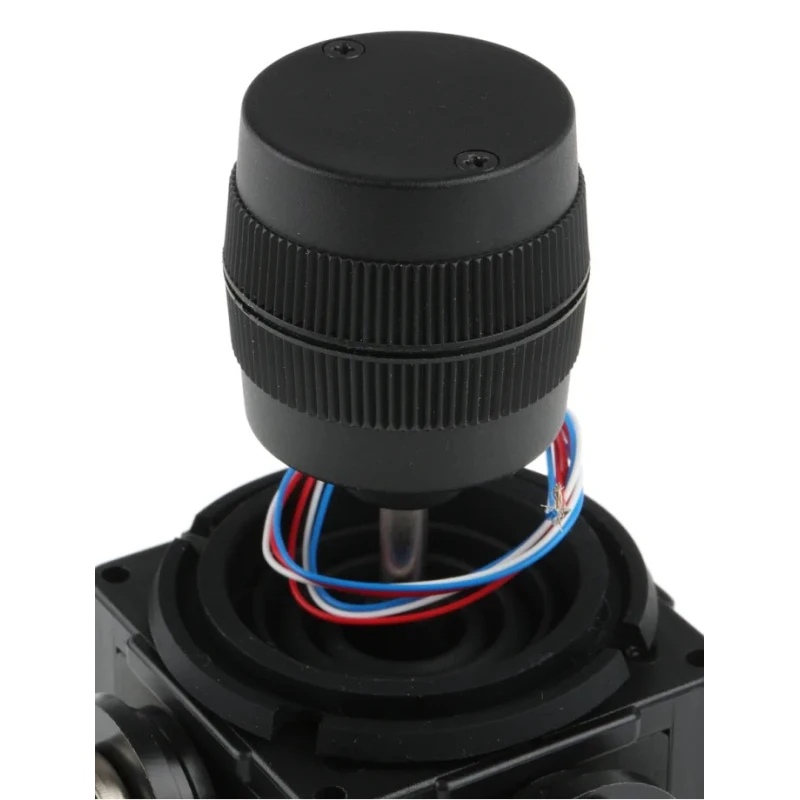

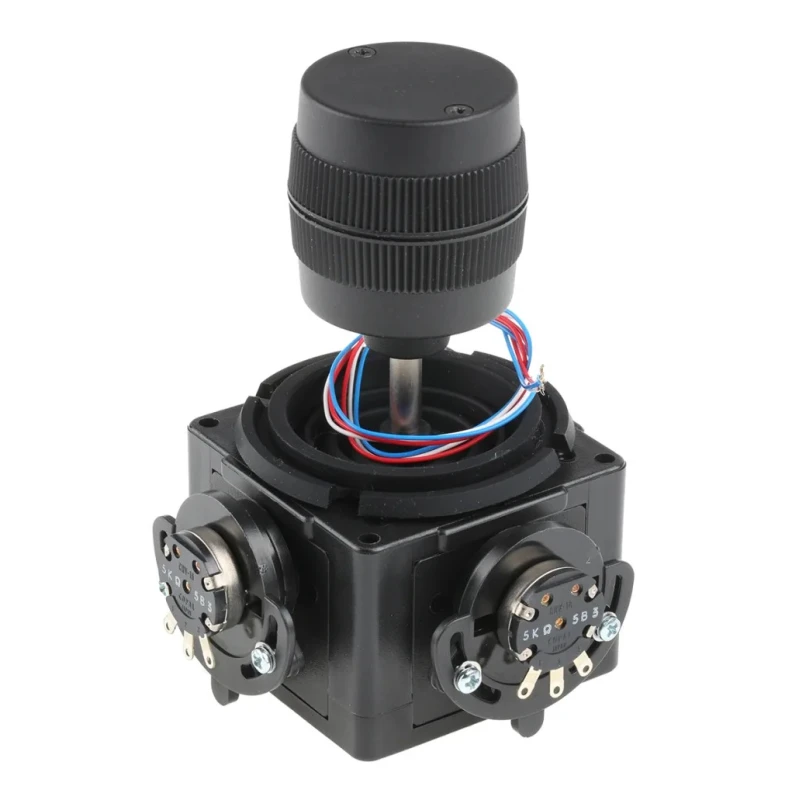

CH Products 3-Axis Potentiometer Joystick Castle Passive S30L081P-50
Specifications
| Country of Origin | India |
|---|---|
| Brand | CH Products |
| Model | S30L081P-50 |
| Handle Type | Castle |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Number of Axes | 3 |
| Standards/Approvals | RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Mechanical Life | 5000000Operations |
| Switch Technology | Passive |
| Joystick Travel | ±30° |
| Joystick SwitchBrand | NEUTRAL |
| CH Products S40L091P 3-Axis Potentiometer Joystick PassiveBrand | CH Products |
Key Features
- The joystick supports 3 axes for multi-directional control.
- It features a self-centering function with ±30° joystick travel.
- Equipped with durable SPST contact configuration for reliable switching.
- Designed for operation within -25°C to 85°C temperature range.
- Offers mechanical life of up to 5,000,000 operations.
- Constructed with stainless steel ball pivot system and high-grade plastic bearing surfaces for accurate, repeatable centering.
- Potentiometers resistance is rated at 5kohm ±20% with ±5% linearity.
- Terminal type is solder suitable for PCB mounting.
Product Description
CH Products S30L081P-50 3-Axis Potentiometer Joystick Castle Passive is a precision low-profile controller offering multi-axes finger-positioning with self-centering capabilities, suitable for advanced control applications.
This joystick features a castle handle type and passive switch technology using SPST contact configuration ensuring reliable operation. It delivers ±30° joystick travel and supports three axes for comprehensive spatial control. The mechanical life of 5,000,000 operations assures long-term durability for demanding industrial and medical applications.

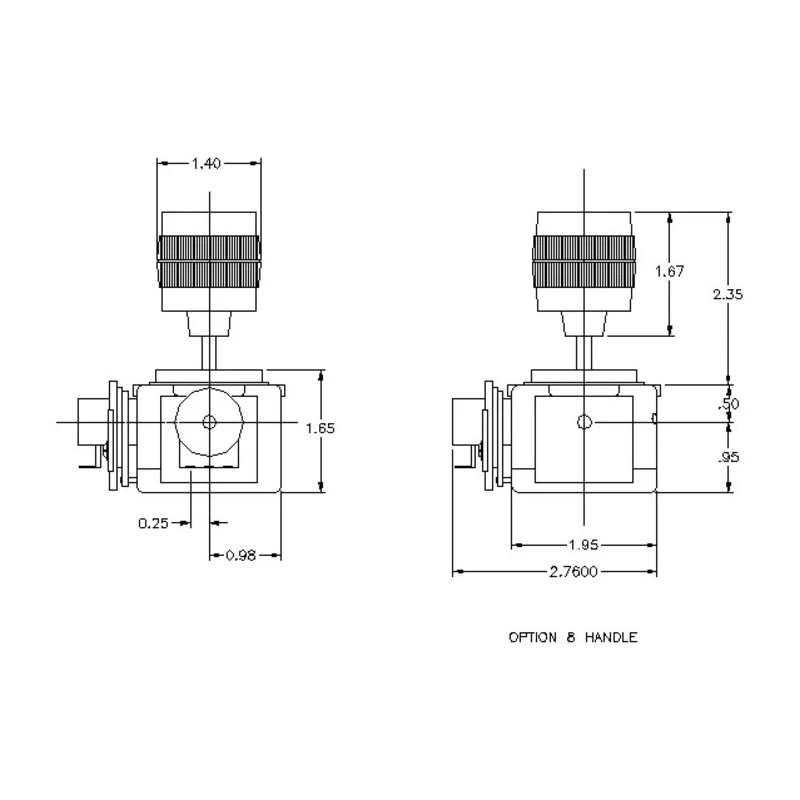

The joystick incorporates a stainless steel ball pivot system along with high-grade plastic bearing surfaces to guarantee accurate return-to-center repeatability. Potentiometers are rated at 5kohm resistance with ±20% tolerance and ±5% linearity, powered at 0.5W. It accommodates panel thickness ranging from 1.3mm to 4.75mm with a dual and three-axis self-centering design including a 2-piece panel sealing kit.
Designed for operating temperatures from -25°C to 85°C, this joystick is ideal for precision use in electric wheelchairs, CCTV systems, robotic controls, and other similar industrial automation applications. The 3rd axis control is achieved via rotational displacement of the handle, expanding functionality.
Additional certifications include compliance with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards ensuring safety and quality. The joystick supports 3 axes for multi-directional control. Self-centering feature with ±30° travel for precise control.
Robust SPST switch contact configuration ensures reliability. Stainless steel ball pivot and plastic bearings provide longevity. Operates reliably from -25°C to 85°C environmental conditions. Mechanical life spans up to 5 million operations ensuring durability.
Potentiometer resistance 5kohm ±20% with ±5% linearity for accurate response. Suitable for panel thickness between 1.3mm and 4.75mm with sealing kit. Applicable in electric wheelchairs, CCTV, and robotic control systems.
Certified to ANSI/ESD and BS EN industry standards for compliance. Explore more in our comprehensive range of Joysticks and electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably within a temperature range of -25°C to 85°C.
The joystick supports three axes for multi-directional control.
It features a joystick travel of ±30° for precise control.
It is equipped with a SPST contact configuration for reliable switching.
The joystick has a mechanical life of up to 5,000,000 operations.
The potentiometers are rated at 5kohm ±20% with ±5% linearity.
The terminal type is solder suitable for PCB mounting.
It complies with RoHS, ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007 standards.
This joystick features a castle handle type for control.
It is suitable for applications in electric wheelchairs, CCTV systems, and robotic controls.
The joystick incorporates a stainless steel ball pivot system and high-grade plastic bearing surfaces.
It can accommodate panel thicknesses ranging from 1.3mm to 4.75mm.
