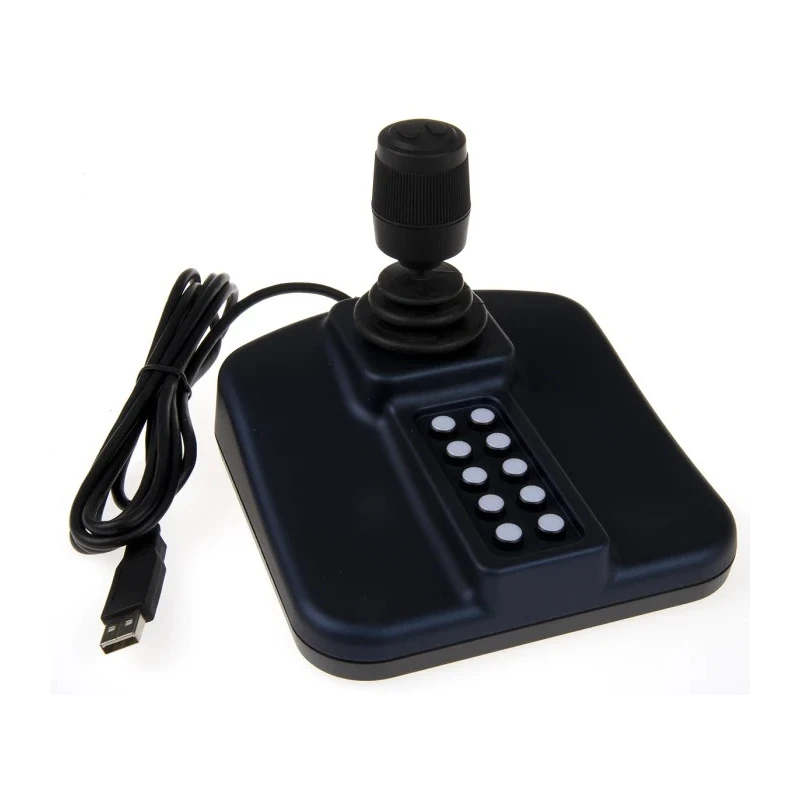

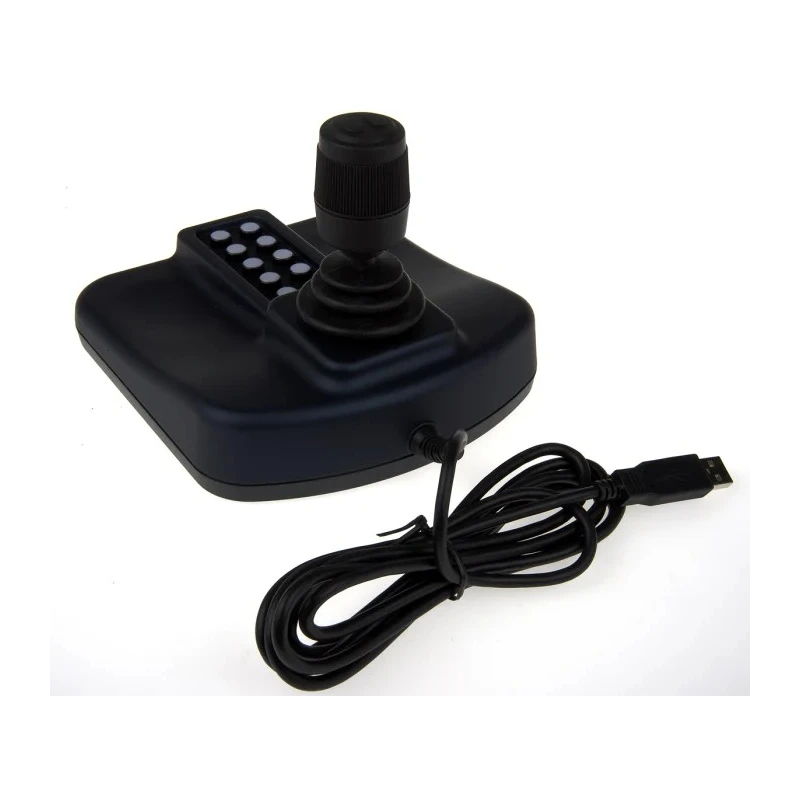

CH Products 3-Axis Joystick Knob Hall Effect Switch Technology 300mA 100-650

CH Products 100-650 3-Axis Joystick Knob with Hall Effect switch technology and 300mA contact current is a high-performance control device designed for precise three-axis positioning in industrial and automation applications. The joystick offers smooth, sprung-to-centre movement for X, Y, and Z axes, where X and Y provide 36° travel (18° from center), and Z provides 60° travel (30° from center), ideal for pan, tilt, and zoom (PTZ) camera control.

The knob handle controls are complemented by 2 tactile push buttons positioned for easy thumb or finger actuation, while the base contains ten LED illuminated tactile push buttons, all of which are programmable, allowing versatile custom configurations. The push buttons have an ultra-long lifecycle of 10 million cycles, and the joystick mechanical life rating is 3 million cycles, ensuring long-term durability.

Constructed with stainless steel contacts and robust components, this joystick operates reliably within temperature ranges from -25°C to +85°C, suitable for various environmental conditions. The device connects via USB with a 2 meter Type A cable, eliminating the need for external power supplies and simplifying installation and maintenance procedures.

This joystick is compatible with multiple operating systems, including Windows, OSX, and Linux, using standard DirectX Human Interface Device (HID) drivers, facilitating easy integration into diverse systems without complex driver installations.

This 3-axis joystick is commonly used in industrial automation, security surveillance for pan-tilt-zoom cameras, machine control, and other applications demanding precise multi-axis input control. It provides smooth, durable operation with programmable buttons for enhanced control flexibility.

Features three-axis movement for precise X, Y, and Z positioning control. X and Y axes provide 36° travel while Z axis provides 60° travel. Equipped with stainless steel contacts and a knob-style handle. Includes 2 tactile push buttons on top and 10 LED illuminated tactile push buttons on the base.

Push buttons are programmable with a life cycle of 10,000,000 cycles. Mechanical life rated at 3,000,000 cycles for reliable durability. Operates across a wide temperature range from -25°C to +85°C. USB connectivity with 2-meter Type A cable for easy installation and power supply.

Compatible with Windows, OSX, and Linux using standard DirectX HID drivers. Explore a wide range of precision Joysticks and controls in EnvMart's electronics catalog for your industrial and automation needs.
