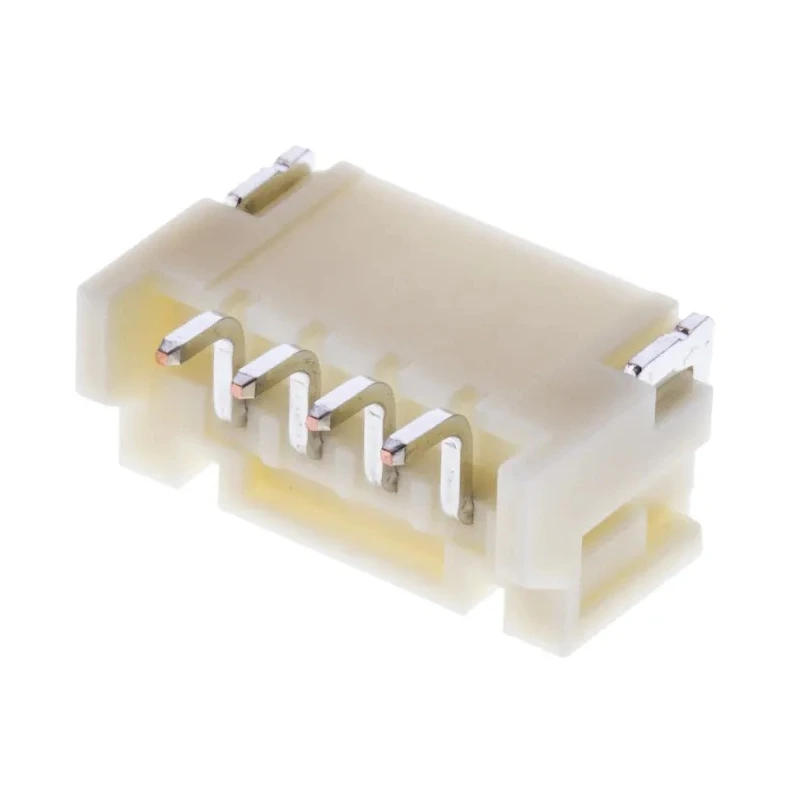

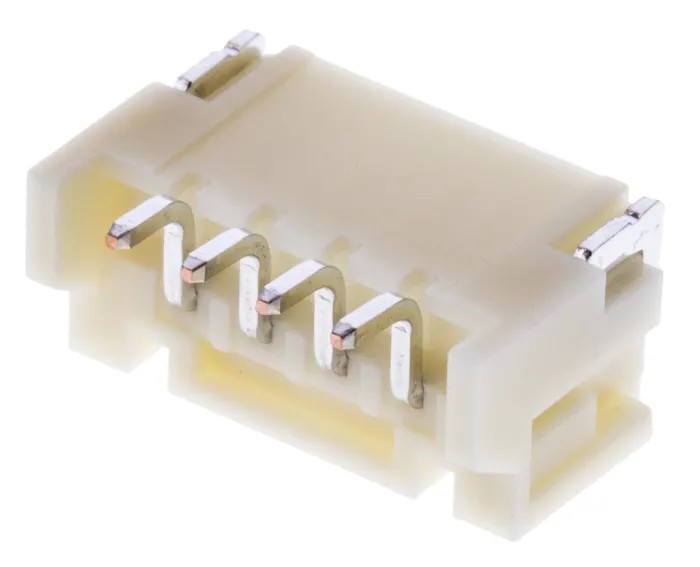

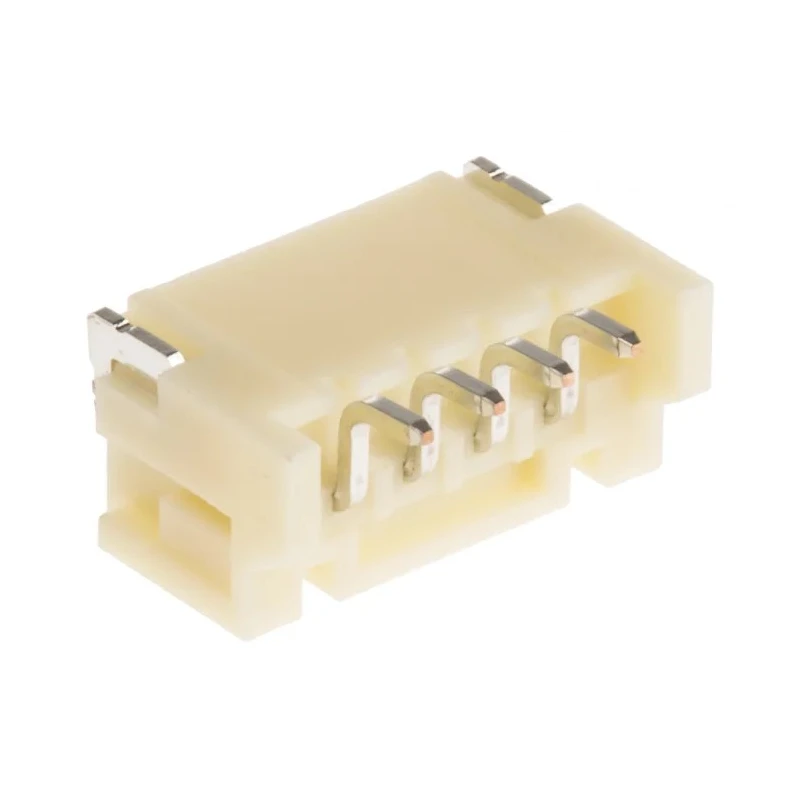

JST PH Series Right Angle Surface PCB Header, 4 Contact(s), 2 mm Pitch, 1 Row, Shrouded S4B-PH-SM4-TB(LF)(SN)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 100V |
| Brand | JST |
| Orientation | Right Angle |
| Current | 2A |
| Model | S4B-PH-SM4-TB(LF)(SN) |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | PH |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-1366Brand: JSTManufacturers Part No.: S4B-PH-SM4-TB(LF)(SN) |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact design ensures efficient internal wiring to printed circuit boards.
- Fully shrouded header enhances connector protection and safety.
- Rated current of 2 amperes supports low power electronic applications.
- Operating temperature range from -25°C to 85°C for versatile environmental use.
- Constructed from copper alloy contacts with tin plating for optimal conductivity and durability.
- Surface mount configuration with right-angle orientation for compact PCB layouts.
- Supports wire sizes from 32 AWG to 24 AWG, accommodating varied wiring needs.
- Designed for ease of solder termination ensuring secure connection.
Product Description
The JST S4B-PH-SM4-TB(LF)(SN) is a Right Angle Surface PCB Header from the PH series, designed for reliable wire-to-board connections in electronic assemblies. Featuring 4 contacts with a 2 mm pitch arranged in a single row, this shrouded header provides a compact and secure interface for internal wiring on printed circuit boards. Its fully shrouded design protects the contacts and enhances safety during installation and operation.
Manufactured using copper alloy contacts with tin plating, this header ensures excellent electrical conductivity and corrosion resistance. The connector is engineered for surface mount technology (SMT) with a right-angle orientation, optimizing PCB space and layout flexibility. Operating efficiently within a temperature range of -25°C to 85°C, it is suitable for a broad spectrum of industrial, commercial, and laboratory electronic applications.
Rated for 2 amperes of current and a voltage rating of 100 V ac, the PH series header supports moderate power requirements. It is compatible with wire sizes ranging from 32 AWG to 24 AWG, facilitating various wiring configurations. The connector uses a solder termination type for secure, long-lasting connections to the PCB.
Applications include power connectors for electronic devices, industrial control systems, instrumentation, and communications equipment. This header meets stringent reliability standards and is sourced from manufacturing facilities in Malaysia, ensuring consistent quality.
Compact design for high-density PCB wiring integration. Shrouded header for enhanced protection and contact safety. Rated for 2A current with 100V voltage capacity. Surface mount right-angle layout for space-saving PCB design.
Temperature operating range from -25°C to 85°C. Copper alloy contact with durable tin plating. Solder termination ensuring reliable electrical contact. Supports 4 contacts in a single row with 2 mm pitch.
Explore the comprehensive range of JST connectors and power connectors within our Electronics & Electricals category at EnvMart for reliable components suited to industrial, laboratory, and commercial electronic assembly needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The JST S4B-PH-SM4-TB(LF)(SN) PCB header is rated for a current of 2 amperes.
This model has a voltage rating of 100 V AC.
The contacts of this header are arranged with a pitch of 2 mm.
The operating temperature range for this model is from -25°C to 85°C.
It uses a solder termination type for secure connections to the PCB.
This header features 4 contacts arranged in a single row.
The contacts are made from copper alloy with tin plating for optimal conductivity and corrosion resistance.
This model has a right-angle orientation, which is suitable for compact PCB layouts.
It supports wire sizes ranging from 32 AWG to 24 AWG.
The JST S4B-PH-SM4-TB(LF)(SN) is manufactured in Malaysia.
This header is part of a wire-to-board connector system.
The fully shrouded design enhances connector protection and safety during installation and operation.
