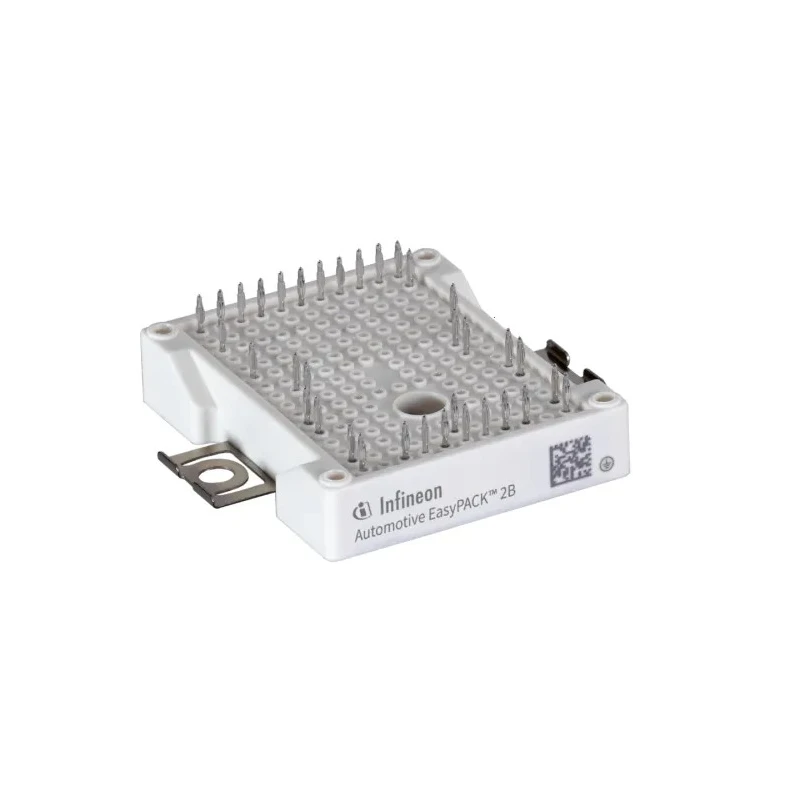

Infineon Half Bridge IGBT Module AG-EASY2B 300A 750V, PCB Mount FF300R08W2P2B11ABOMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon Half Bridge IGBT Module AG-EASY2B 300A 750V, PCB Mount FF300R08W2P2B11ABOMA1

Name: Infineon Half Bridge IGBT Module AG-EASY2B 300A 750V, PCB Mount FF300R08W2P2B11ABOMA1
Brand: Infineon
SKU: 423182
Price: 107.94 USD
Availability: InStock



Category IGBT Module Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	16.4mm
Length	51mm
Model	FF300R08W2P2B11ABOMA1
Mount Type	PCB
Configuration	Half Bridge
Maximum Operating Temperature	150°C
Package Type	AG-EASY2B
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, UL 94 VO module frame
Maximum Continuous Collector Current Ic	300A
Maximum Collector Emitter Voltage Vceo	750V
Maximum Collector Emitter Saturation Voltage VceSAT	1.18V
Automotive Standard	AQG 324
Maximum Power Dissipation Pd	20mW
Maximum Gate Emitter Voltage VGEO	±20 V

Key Features

Compact and flexible design suitable for hybrid and electric vehicle inverters.
Uses Benchmark EDT2 IGBT technology allowing high blocking voltage and current density.
Supports a maximum power dissipation of 20 milliwatts.
Certified with RoHS compliance and UL 94 VO module frame standard.
Operates reliably in temperature range from -40°C to 150°C.
Package type AG-EASY2B with half bridge configuration.
Maximum gate emitter voltage rating of ±20 V.
Low collector emitter saturation voltage of 1.18 V for efficient operation.

Product Description

The Infineon FF300R08W2P2B11ABOMA1 Half Bridge IGBT Module delivers a robust solution for power electronics, designed for PCB mounting with a half bridge configuration. It supports a continuous collector current rating of 300 A and a maximum collector emitter voltage of 750 V, making it ideal for demanding industrial, automotive, and electric vehicle inverter applications.

This module incorporates the Benchmark EDT2 generation IGBT technology, which provides excellent current density and short circuit ruggedness for reliable inverter performance under harsh environmental conditions. It achieves a low collector emitter saturation voltage of 1.18 V, enhancing energy efficiency and reducing power loss.

Designed with the AG-EASY2B package, it offers a compact size with dimensions of 51 mm in length and 16.4 mm in height. The device has a maximum power dissipation of only 20 milliwatts, contributing to efficient thermal management. It operates safely within a temperature range from -40°C to 150°C, suitable for automotive and industrial environments.

It is fully compliant with RoHS directives and certified to meet UL 94 VO flame retardant module frame standards. Additionally, the module satisfies the automotive AQG 324 standard, ensuring its robustness and reliability in automotive systems.

Compact and flexible design optimized for electric vehicle and hybrid inverter systems. High power and voltage ratings suitable for industrial and automotive power electronics. Efficient thermal and electrical performance with low saturation voltage.

Compliance with RoHS and UL 94 VO standards ensures safety and environmental friendliness. Qualified to rigorous automotive standards for high reliability.

This high-performance IGBT Module is a prime choice for industrial applications including power inverters, motor drives, HVAC systems, and electric vehicle power management. EnvMart provides detailed technical data and sourcing convenience for the Infineon FF300R08W2P2B11ABOMA1 module.
