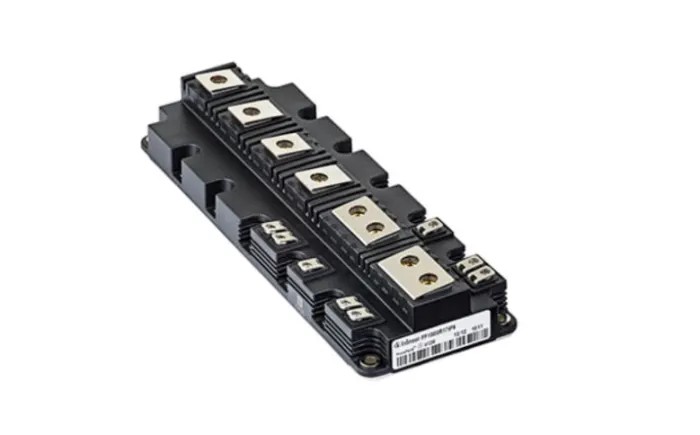

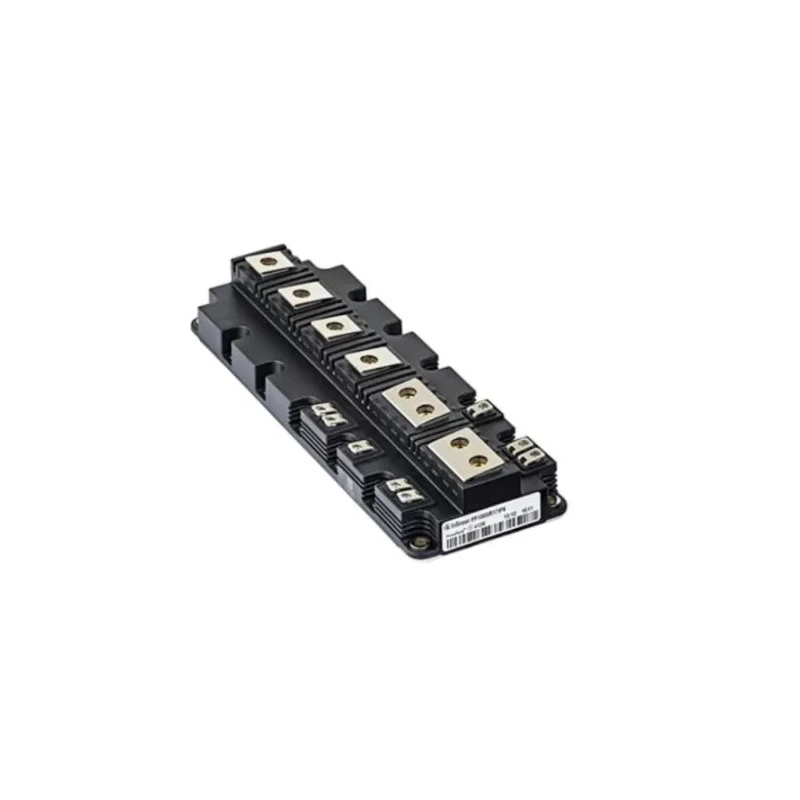

Infineon N-Channel Inverter 1800 A 1200 V 10-Pin PRIME3 Surface Mount Module FF1800R12IE5PBPSA1

Infineon FF1800R12IE5PBPSA1 is a high-performance N-Channel inverter module designed for demanding industrial and commercial applications. Featuring a maximum continuous collector current of 1800 amps and a collector emitter voltage of 1200 volts, this module uses advanced TRENCHSTOP IGBT5 technology combined with .XT interconnection for enhanced reliability and efficiency.

The module is packaged in a PRIME3 surface mount package with a 10-pin configuration, allowing convenient integration on PCBs. Its robust copper bonds provide excellent current carrying capabilities, while sintering of chips grants outstanding power cycling endurance.

Operating temperature range spans from -40°C to 175°C, making it suitable for a wide environmental spectrum. The module features a maximum power dissipation of 20 milliwatts and a maximum gate emitter voltage of 20 volts, further underlining its industrial robustness.

This inverter module is ideal for use in applications such as high power frequency converters, uninterruptible power supply (UPS) systems, motor control drives, and photovoltaic solar energy converters. Its advanced design reduces total power losses by up to 20%, significantly cutting cooling efforts and enabling higher system overload conditions.

Compact physical size with a length of 247 millimeters, width of 86 millimeters, and height of 38.25 millimeters facilitates space-efficient system layouts. Features PRIME3 packaging for high power dissipation and durability.

Consists of 2 TRENCHSTOP IGBT5 transistors for efficient switching. Operates between -40°C and 175°C ambient temperatures. Designed for high power converters, UPS systems, motor drives and solar applications. Equipped with 10 pins and copper bonds for high current capacity.

Reduces total losses up to 20% for improved energy efficiency. Enables higher system overload conditions while reducing cooling requirements. Compact dimensions: 247 mm length, 86 mm width, and 38.25 mm height.

Infineon’s innovative semiconductor technology and PRIME3 packaging ensures reliable operation in industrial, laboratory, HVAC, manufacturing, and renewable energy applications. Browse similar IGBT Modules and inverters to find complementary products for advanced power electronics solutions.
