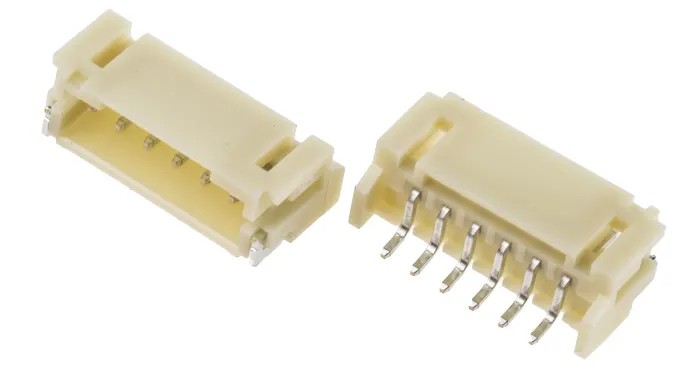

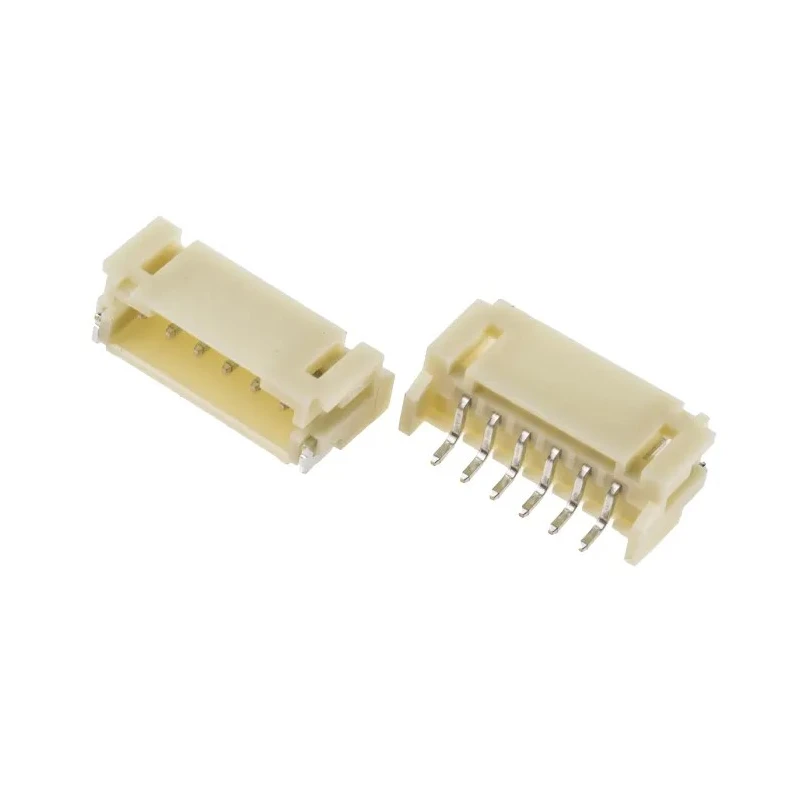

JST PH Series Right Angle Surface PCB Header 6 Contacts 2 mm Pitch 1 Row Shrouded S6B-PH-SM4-TB(LF)(SN)

JST S6B-PH-SM4-TB(LF)(SN) is a PH Series Right Angle Surface PCB Header designed to provide a high-density, reliable, and cost-effective wire-to-board connection. Featuring 6 male contacts arranged in a single row at a 2 mm pitch, this shrouded header ensures secure mating with connectors to prevent contacts from damage or short circuits. The surface mount type facilitates easy soldering onto printed circuit boards enhancing manufacturing efficiency.

With a current rating of 2 A and voltage rating of 100 V AC, it suits a wide range of electronics applications requiring moderate power handling. The tin-plated copper alloy contacts offer excellent conductivity and corrosion resistance, extending connector life and reliability in industrial and commercial electronic devices.

Operating temperature range from -25°C to 85°C enables use in diverse environments including industrial controls, communication equipment, and consumer electronics. The low insertion force side entry design simplifies assembly and reduces mechanical stress during connector insertion and withdrawal.

The JST PH Series is tailored for compact PCB mounting, supporting wire sizes between 32 AWG and 24 AWG, making it versatile for various wiring harnesses and cable designs. This connector type is extensively used in manufacturing, laboratory instruments, telecommunications, automotive electronics, and HVAC control systems.

Supports current up to 2 A for efficient circuit operation. Fully shrouded header prevents accidental contact and enhances durability. Surface mount with solder termination enables reliable PCB attachment. Wide temperature range supports diverse environmental conditions.

Tin plating on copper alloy contacts ensures durability and conductivity. Right angle orientation optimizes PCB space and wiring layout. Low insertion force improves ease of assembly and maintenance. Accommodates wire sizes from 32 AWG to 24 AWG for broad application.

Rated to 100 V for safe intermediary voltage electronic applications. Suitable for industrial, laboratory, electronics manufacturing, and communication equipment.

Explore the complete range of JST connectors and PCB Headers in the Electronics & Electricals category on EnvMart for tailored solutions that enhance your product designs and manufacturing efficiency.
