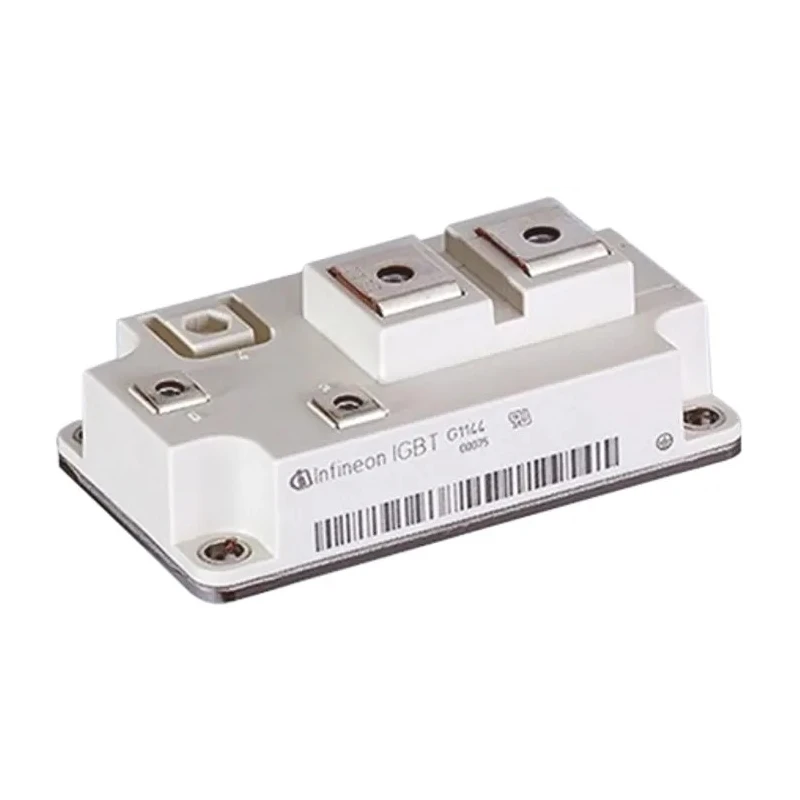

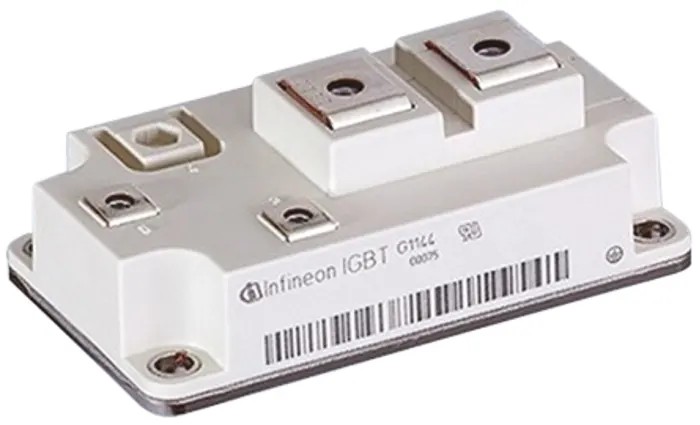

Infineon N-Channel IGBT Module 400 A 1.2 kV 5-Pin 62 mm Surface Mount FZ400R12KE3HOSA1

Infineon FZ400R12KE3HOSA1 N-Channel IGBT Module offers high efficiency and fast switching capabilities with a maximum continuous collector current rating of 400 A and a collector emitter voltage of 1.2 kV. It is designed for surface mounting in compact 62 mm package style with 5 pins, optimised for industrial power electronics applications.

Featuring a maximum power dissipation of 2.25 kW, it handles demanding electrical loads with low conduction losses, supported by a maximum gate emitter voltage of 20 V. The module supports switching speeds up to 1 MHz, making it ideal for use in inverters, UPS systems, industrial drives, and other power conversion systems requiring fast and reliable switching.

Operating reliably in temperature extremes from -40°C to 125°C, this IGBT module maintains stable performance for industrial, manufacturing, commercial, and construction applications. Its low collector emitter saturation voltage of 2.15 V contributes to energy efficiency, reducing heat generation under load.

The module's physical dimensions of 106.4 mm length, 61.4 mm width, and 36.5 mm height allow easy integration into power assemblies with surface mounting. The FZ400R12KE3 series from Infineon is well suited for hard and soft switching tasks, providing robust semiconductor solutions for vehicle, industrial, and commercial equipment.

This IGBT Module supports high frequency switching up to 60 kHz and beyond. It is part of Infineon’s broad IGBT range, including ECONOPACK and PrimePACK packages. Offers reliable switching for applications such as industrial machinery and agricultural vehicles.

The device incorporates TrenchStop TM and Fieldstop technology for optimized switching performance. Its durable surface mount package facilitates efficient heat dissipation in power modules. Explore additional Infineon semiconductor products at EnvMart to enhance your industrial power electronics solutions.
