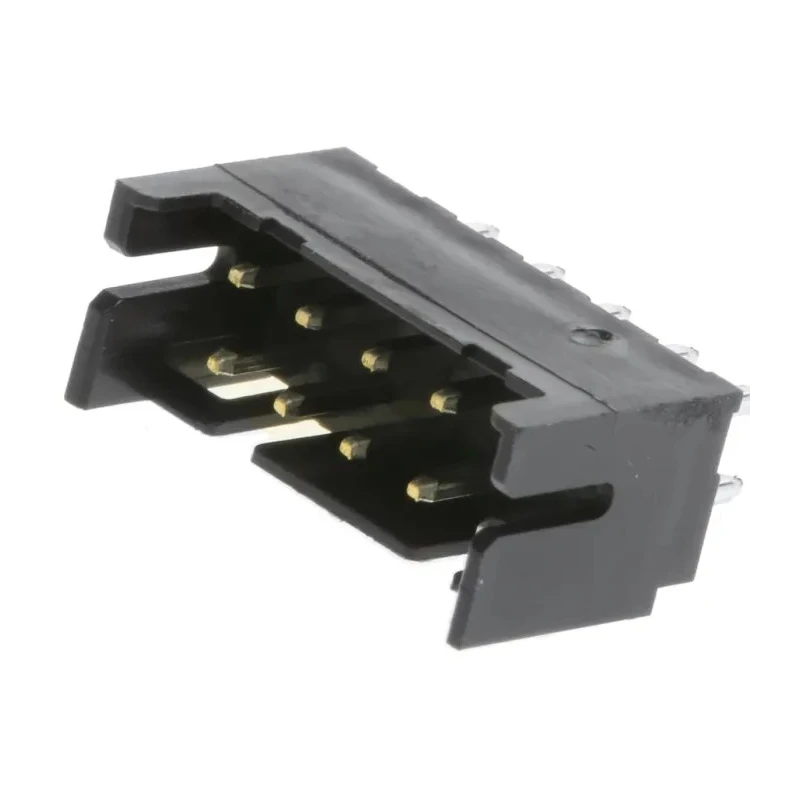

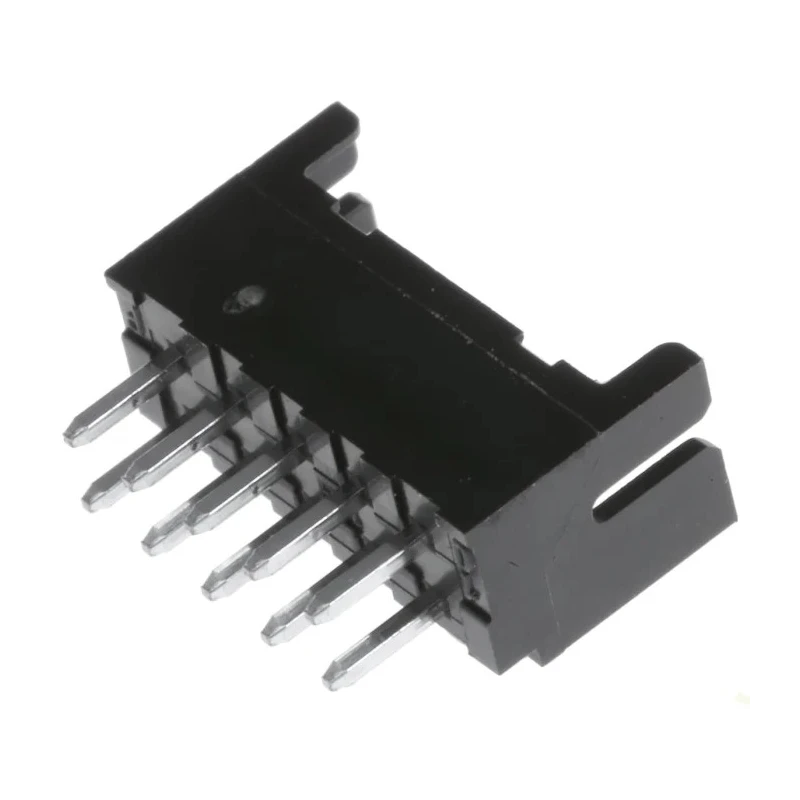

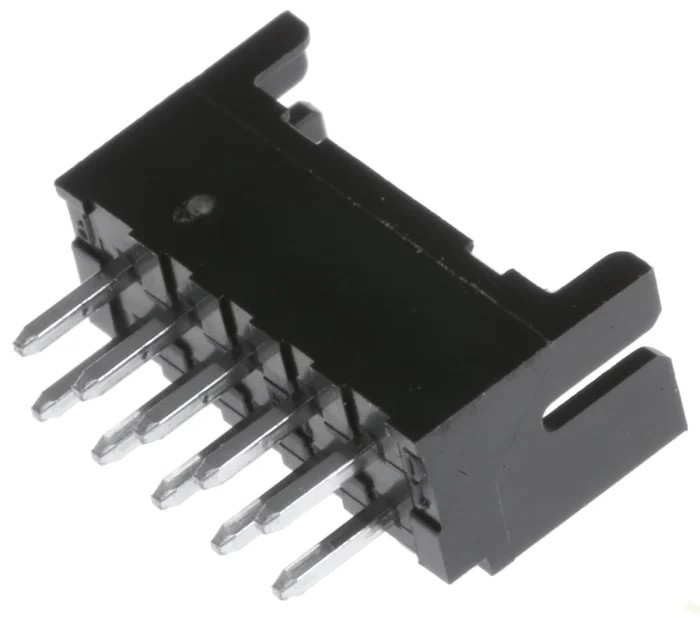

Hirose DF11 Series Straight Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 2 Row, Shrouded DF11
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-9008Brand: HiroseManufacturers Part No.: DF11-10DP-2DSA(24) |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Compact design enables two rows of contacts within 5 mm depth saving PCB space.
- Shrouded housing with guide ribs prevents incorrect insertion and twisting.
- Locking mechanism secures reliable mating connection.
- Constructed with polyamide housing and copper alloy male contacts plated in tin.
- Suitable for both board-to-board and wire-to-board applications.
- Rated for 2 A current and 250 V voltage.
- Operating temperature range from -30°C to +85°C for broad environmental tolerance.
- Through-hole mounting facilitates strong mechanical and solder joint strength.
Product Description
Hirose DF11 Series Straight Through Hole PCB Header DF11 is a high-density 10-contact connector featuring a 2.00 mm pitch and compact double-row design. It provides a space-saving footprint with a package depth below 5 mm, making it ideal for integration in compact portable electronic devices and industrial equipment.
The connector housing is made from durable polyamide material, shrouded to prevent incorrect mating, and equipped with guide ribs and a locking mechanism to ensure secure and reliable connections. Male contacts are constructed of copper alloy with a tin plating finish, designed for robust solder termination and high conductivity.
This through-hole mounted PCB header supports current ratings up to 2 amperes and voltages up to 250 volts, suitable for various power and signal applications. Its temperature operating range from -30°C to 85°C ensures reliable performance in diverse environmental conditions.
Applications include board-to-board and wire-to-board connectivity in devices such as digital cameras, liquid crystal displays, digital video recorders, car navigation systems, access control units, and precision measurement instruments. The locking feature and metal fittings on SMT variants enhance mechanical retention and reduce solder joint failures.
Compact double-row 10-contact design with 2 mm pitch. Shrouded polyamide housing with guide ribs for secure mating. Male copper alloy contacts with tin plating for durability and conductivity. Through-hole mount type ensures reliable PCB attachment.
Current rating of 2 A and voltage rating of 250 V. Operating temperature range from -30°C to 85°C. Suitable for board-to-board and wire-to-board applications. Robust locking mechanism to prevent accidental disconnection.
Ideal for compact electronic and instrumentation devices. Manufactured in Malaysia to stringent quality standards. Discover more connectors and PCB hardware in the Electronics & Electricals category on EnvMart for industrial, laboratory, and commercial applications.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 2 A and a voltage of 250 V.
The DF11 series features a 2 mm pitch and has 10 contacts arranged in a double-row configuration.
The housing is made from polyamide, while the male contacts are constructed from copper alloy with a tin plating finish.
It operates within a temperature range of -30°C to 85°C, allowing for use in various environmental conditions.
This model utilizes a through-hole mounting type, which ensures strong mechanical and solder joint strength.
It is suitable for both board-to-board and wire-to-board applications in devices such as digital cameras and navigation systems.
Yes, it features a robust locking mechanism that secures the connection and prevents accidental disconnection.
The orientation of this model is straight, facilitating easy installation on PCBs.
The compact design allows for a housing depth of less than 5 mm, saving PCB space.
It uses solder termination, designed for robust soldering to PCBs.
This PCB header is manufactured in Malaysia to stringent quality standards.
The contact gender for this model is male, suitable for various connectivity needs.
