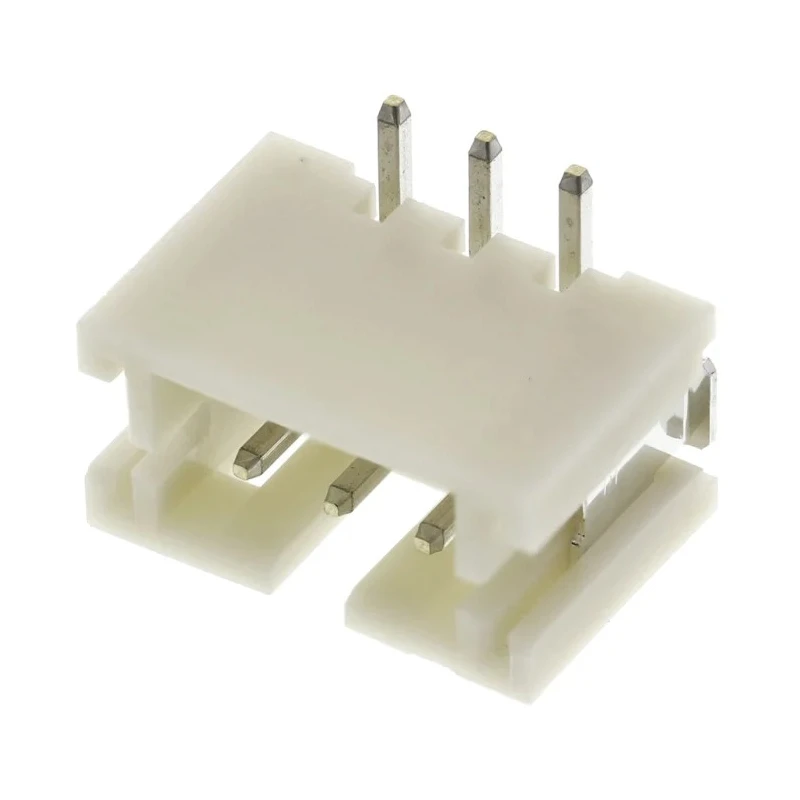

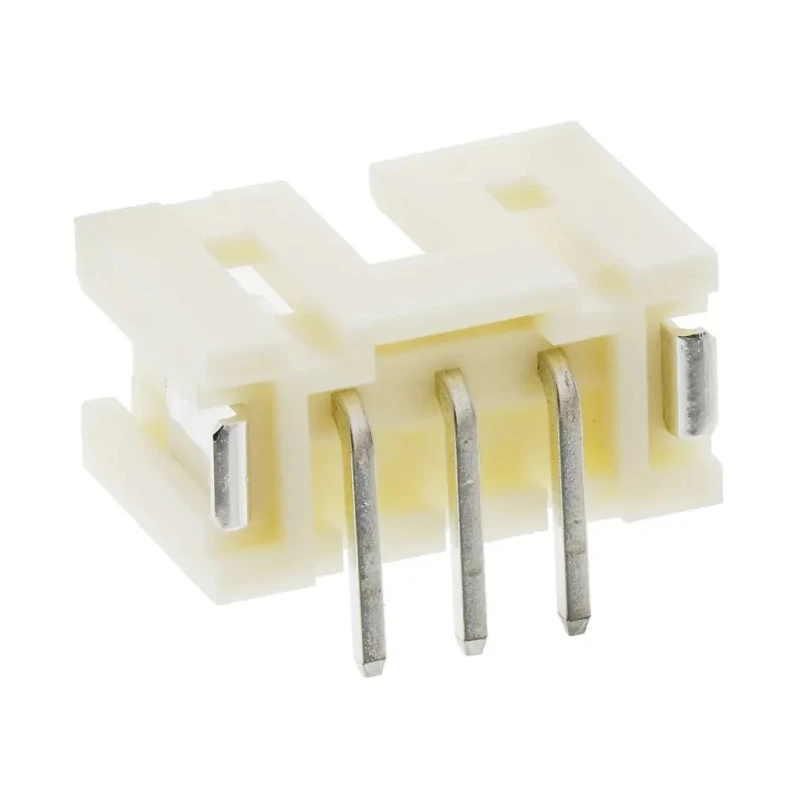

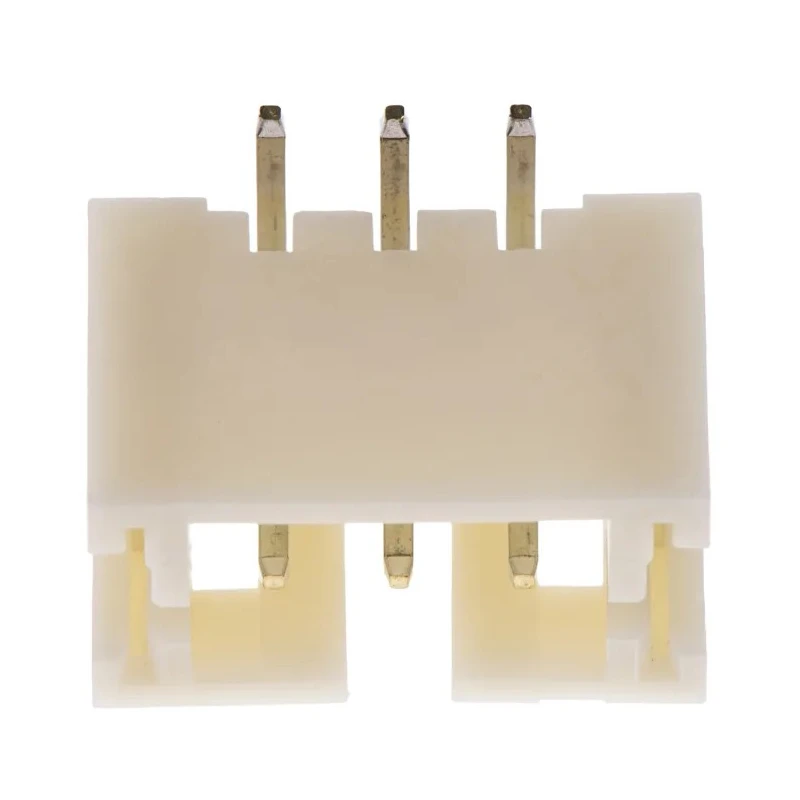

JST PH Series Straight Surface PCB Header 3 Contacts 2 mm Pitch 1 Row Shrouded B3B-PH-SM4-TB(LF)(SN)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 100V |
| Brand | JST |
| Orientation | Straight |
| Current | 2A |
| Model | B3B-PH-SM4-TB(LF)(SN) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | PH |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 688-1329PBrand: JSTManufacturers Part No.: B3B-PH-SM4-TB(LF)(SN) |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Compact and reliable wire-to-board connector suitable for PCB mounting.
- Features a current rating of 2 A and voltage rating up to 100 V AC.
- Constructed with polyamide housing and copper alloy tin-plated contacts for durability.
- Designed for surface mount with a low insertion force top entry style.
- Operating temperature range from -25°C to 85°C ensures stable performance in various environments.
- Male contact gender with solder termination for robust connection.
- Fully shrouded header provides additional protection and safety.
- Ideal for high-density internal wire connections to printed circuit boards.
Product Description
JST B3B-PH-SM4-TB(LF)(SN) PH Series straight surface PCB header offers a compact, reliable connection solution for electronics assembly. This surface mount header is designed with 3 contacts arranged in a single row with 2 mm pitch, making it suitable for high-density wire-to-board applications. The fully shrouded housing made of polyamide provides mechanical protection while ensuring electrical safety.
The connector supports a current of 2 A and voltage up to 100 V AC, making it ideal for medium power electronic circuits. The contacts are made from copper alloy with tin plating to ensure reliable conductivity and resistance to corrosion. The solder termination type with male contact gender ensures a secure attachment to PCB pads.
Operating reliably in temperatures ranging from -25°C to 85°C, this JST PH series header is versatile for industrial, consumer electronics, and manufacturing uses. Its low insertion force top entry design facilitates easy assembly on PCBs, enhancing production efficiency and reliability.
Compact and reliable wire-to-board connector suitable for PCB mounting. Features a current rating of 2 A and voltage rating up to 100 V AC. Constructed with polyamide housing and copper alloy tin-plated contacts for durability.
Designed for surface mount with a low insertion force top entry style. Operating temperature range from -25°C to 85°C ensures stable performance in various environments. Male contact gender with solder termination for robust connection.
Fully shrouded header provides additional protection and safety. Ideal for high-density internal wire connections to printed circuit boards.
This product is made in Malaysia and meets industry requirements for durability and safety, though without specific certifications. Suitable for use in electronic manufacturing, industrial automation, and PCB assembly applications.
Explore more JST connectors and similar PCB header components in the Electronics & Electricals category on EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2 A and a voltage rating of up to 100 V AC, making it suitable for medium power electronic circuits.
The housing is made from polyamide, while the contacts are constructed from copper alloy with tin plating for reliable conductivity and corrosion resistance.
It operates reliably within a temperature range of -25°C to 85°C, ensuring stable performance in various environments.
This unit features 3 contacts arranged in a single row with a 2 mm pitch, designed for high-density wire-to-board applications.
It uses a solder termination type with male contact gender, ensuring a secure attachment to PCB pads.
Yes, it is specifically designed for surface mounting with a low insertion force top entry style, facilitating easy assembly on PCBs.
The orientation of this model is straight, which is typical for many PCB headers.
This PCB header is made in Malaysia, adhering to industry requirements for durability and safety.
It uses a wire-to-board connector system, ideal for connecting wires directly to printed circuit boards.
The fully shrouded header provides additional protection and safety for the contacts, enhancing reliability in connections.
The pitch size of this model is 2 mm, which is suitable for high-density applications.
It is suitable for use in electronic manufacturing, industrial automation, and PCB assembly applications, given its specifications.
