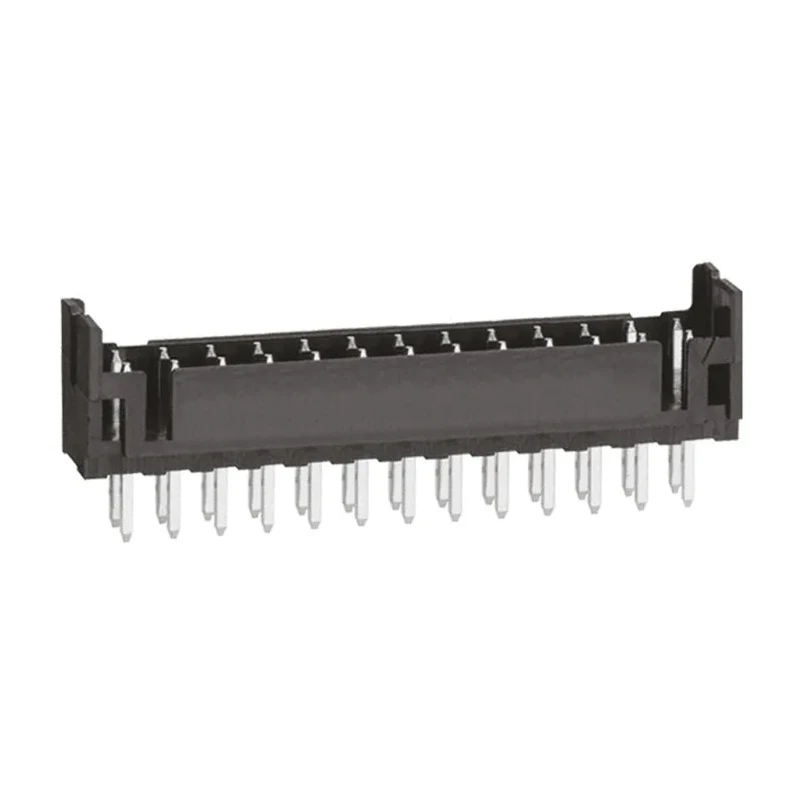

Hirose DF11 Series Straight Through Hole PCB Header 26 Contacts 2 mm Pitch 2 Row Shrouded DF11

Hirose DF11 Series Straight Through Hole PCB Header model DF11 offers a compact and robust solution with 26 contacts arranged in two rows at 2 mm pitch. The shrouded connector features guide ribs to prevent improper mating and a secure locking mechanism that ensures stable connections in electronic assemblies.

The header uses copper alloy contacts plated with tin for reliable electrical conductivity and resistance against corrosion. Its polyamide housing provides durability and electrical insulation suitable for demanding environments.

This through hole mounted PCB header is solder terminated, providing strong mechanical and electrical connections to printed circuit boards. Its current rating of 2 A and voltage rating of 250 V make it suitable for various industrial and commercial electronics applications.

Operating temperature range spans from -30°C to 85°C, making this connector versatile for various conditions encountered in industrial, automotive, and consumer electronics devices. The double row configuration optimizes PCB real estate by allowing a high contact density within a minimal footprint.

Compact double row design with 2 mm pitch increases space efficiency. Shrouded with guide ribs to prevent incorrect insertion and twisting. Locking mechanism secures connection to the corresponding connector housing. Contacts made of copper alloy plated with tin ensure conductivity and durability.

Suitable for board-to-board and wire-to-board connector systems. Through hole mount type with solder termination for PCB installation. Operates reliably between -30°C and 85°C temperature range. Rated for 2A current and 250V operating voltage.

Housing manufactured from durable polyamide material. Ideal for applications requiring compact and secure PCB connections.

This Hirose DF11 Series PCB header is widely used in various electronic components assemblies including digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement devices where reliable and compact PCB interconnections are essential.

EnvMart customers can explore a wide range of digital and analog connectors in our catalog to complement this PCB header for efficient and robust electronics design and manufacturing.
