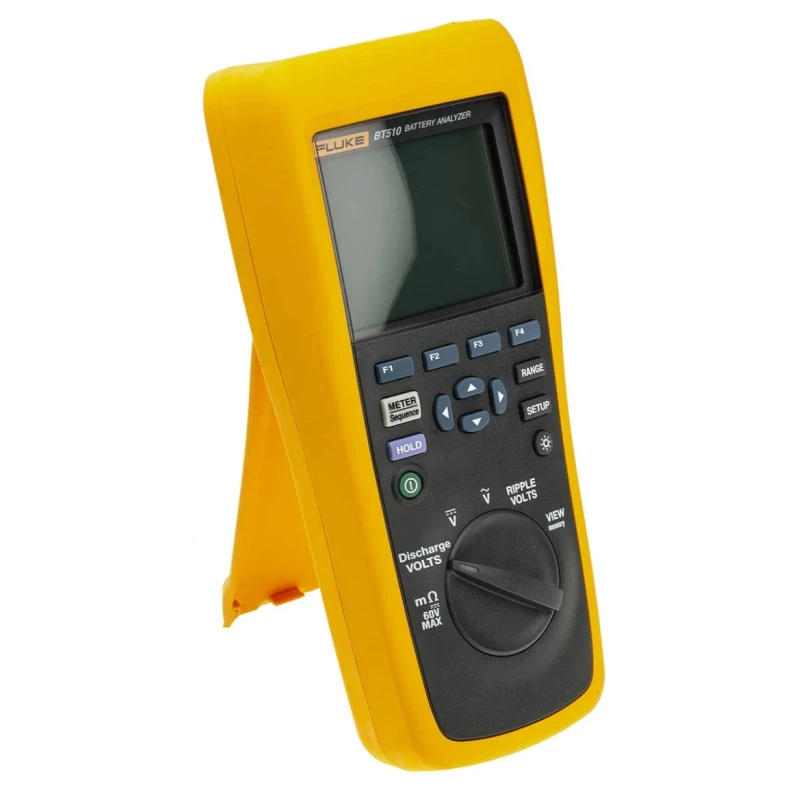

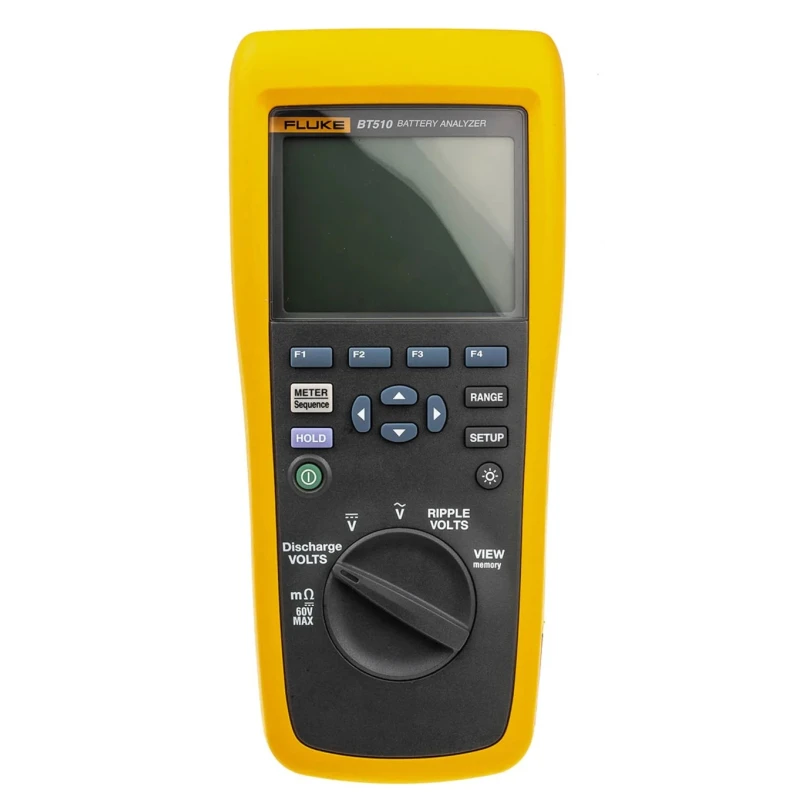

Fluke Battery Tester All Chemistries Compatibility CAT III 600V Portable Diagnostic Instrument FLUKE-BT510

Fluke FLUKE-BT510 Battery Tester is a portable diagnostic instrument from the Fluke 500 Series designed for maintenance, troubleshooting, and condition assessment of stationary batteries and battery banks in critical backup applications. It is compatible with all battery chemistries and features advanced measurement capabilities to streamline field testing for users in automation, electronics, electrical, and mechanical sectors.

This battery tester measures internal resistance with an ultra-fine 0.001 milliohm resolution, enabling precise diagnostics of battery conditions. It can capture DC voltage up to 1000 volts to assess high-voltage battery strings safely, complying with CAT III 600V safety standards. The device logs up to 999 records per test position with time stamps, providing traceable history for thorough analysis.

The FLUKE-BT510 supports wireless data transfer for remote display and mobile review while measuring. Its internal 7.4V 3000mAh lithium-ion rechargeable battery allows over eight hours of operation, ensuring uninterrupted field use. Multiple configurable reference thresholds for voltage and resistance allow automated pass, warn, or fail indications during testing, improving efficiency.

Temperature measurement capability is provided via a compatible probe with an integrated temperature sensor, enabling recording at the negative battery post. Data can be exported post-test through USB connection or wirelessly to included PC software and mobile applications, supporting PDF, CSV, and graphical report formats.

Sequence mode supports automatic saving of voltage, resistance, and temperature measurements, eliminating manual save inputs and simplifying string testing workflows. This versatile tester is ideal for maintenance of UPS and data center battery strings, troubleshooting intercell strap resistance in battery banks, periodic condition testing of stationary lead-acid batteries, and on-site trend analysis and report generation.

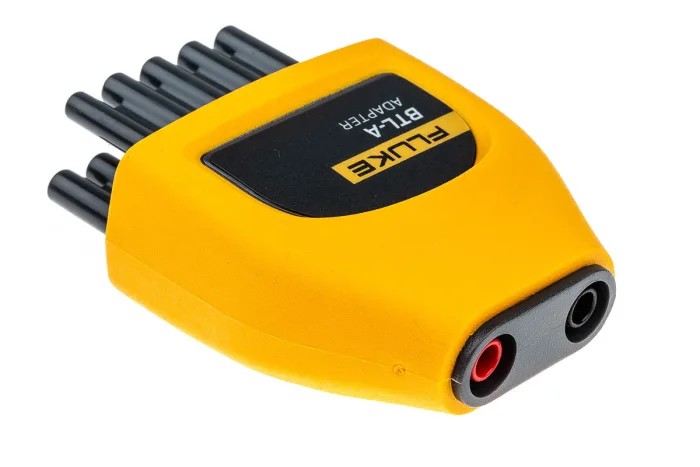

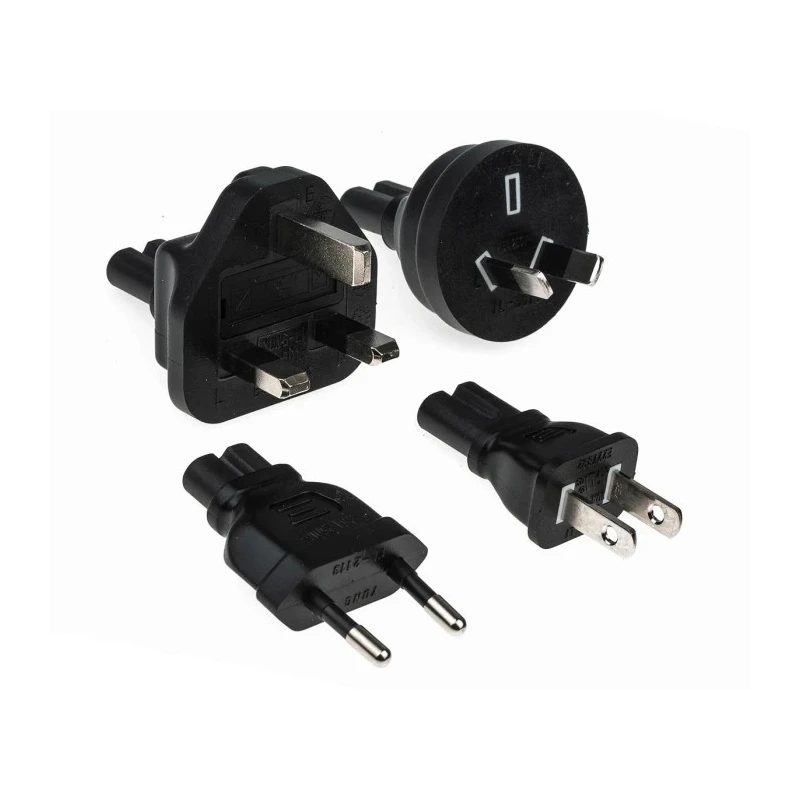

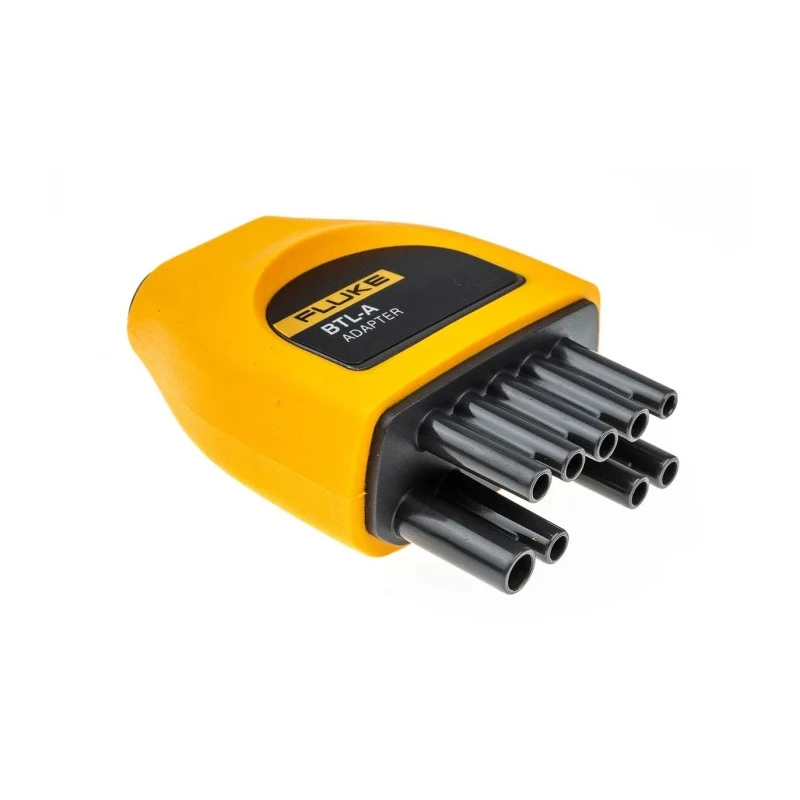

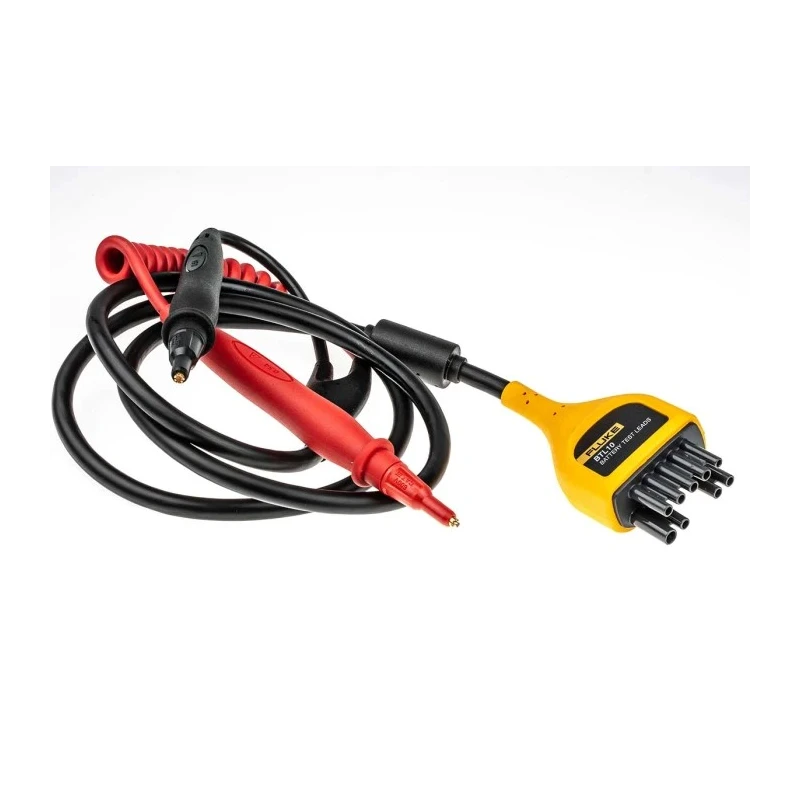

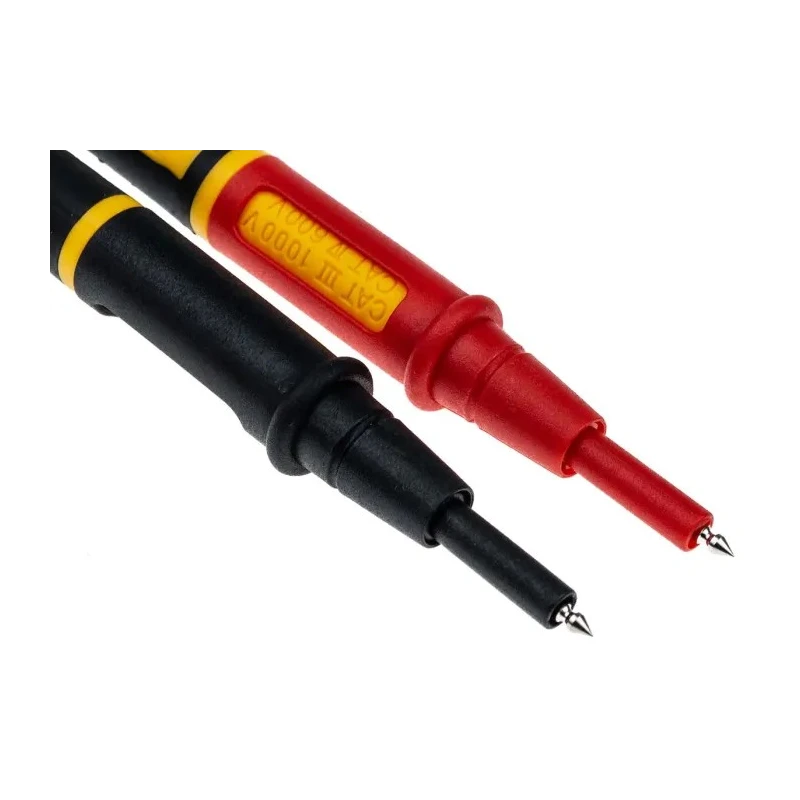

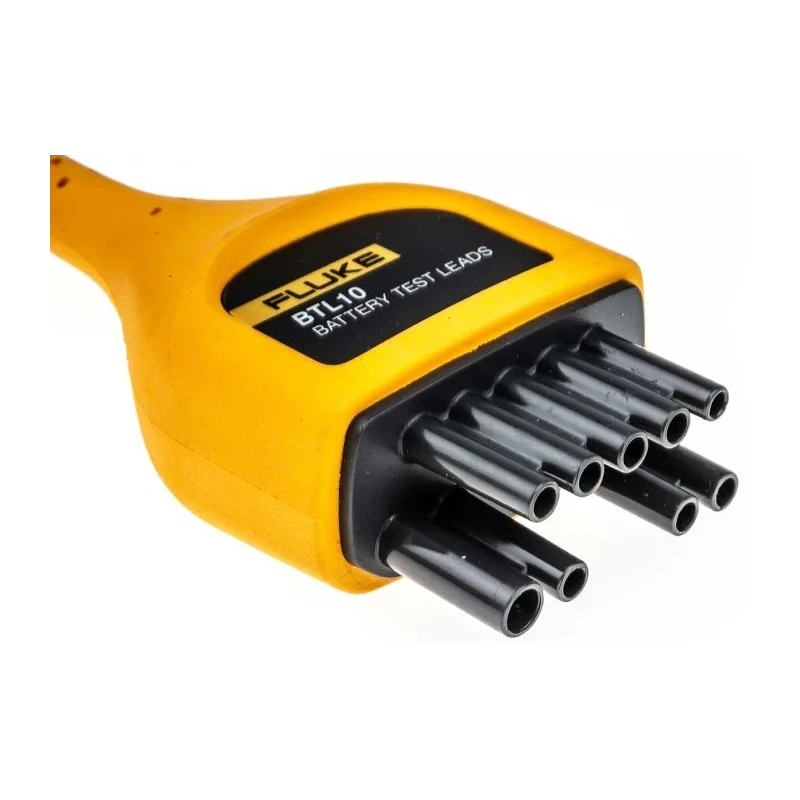

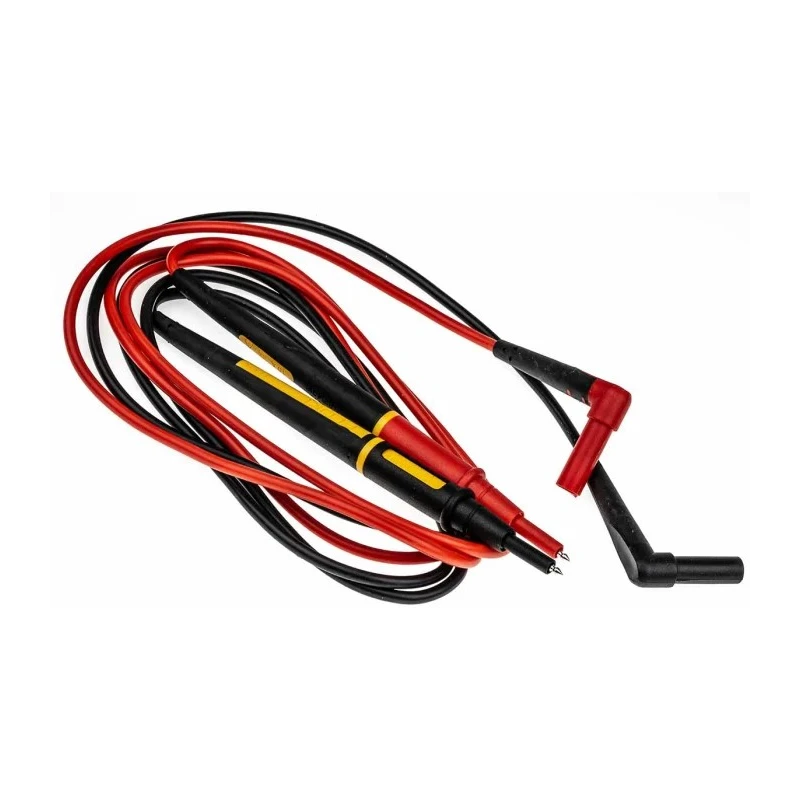

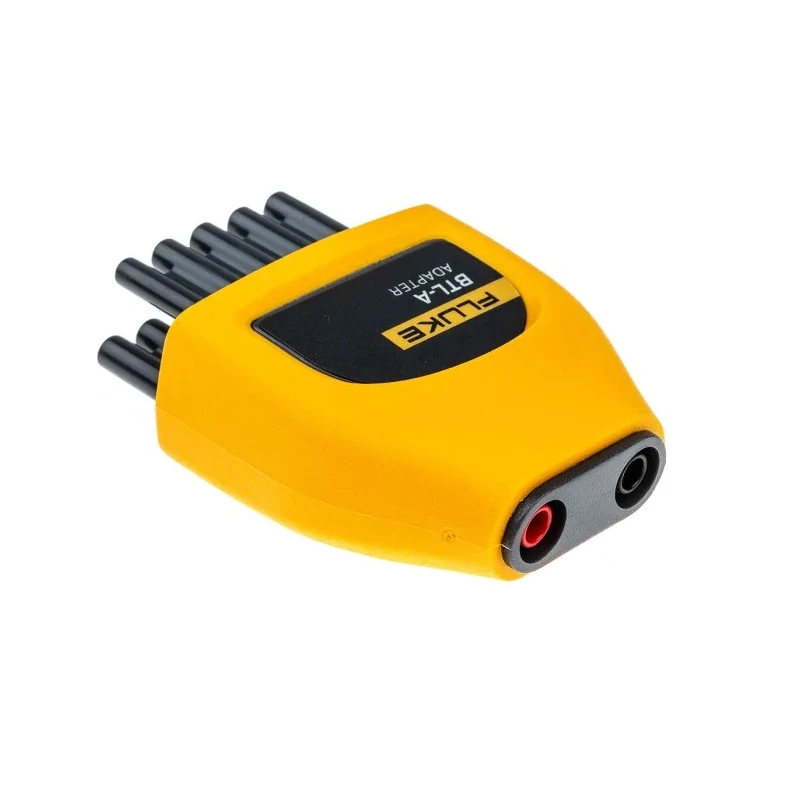

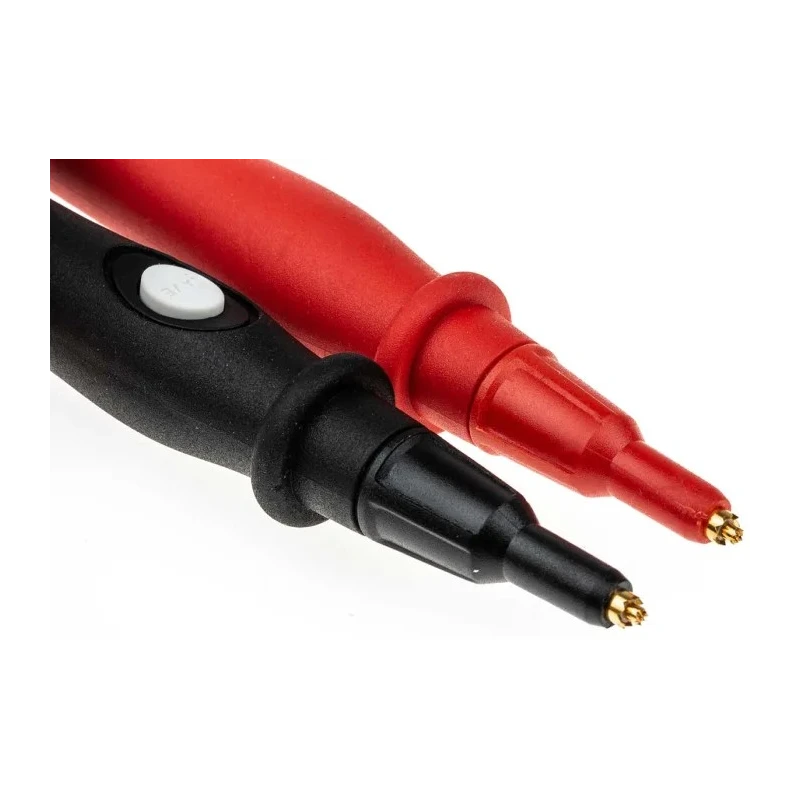

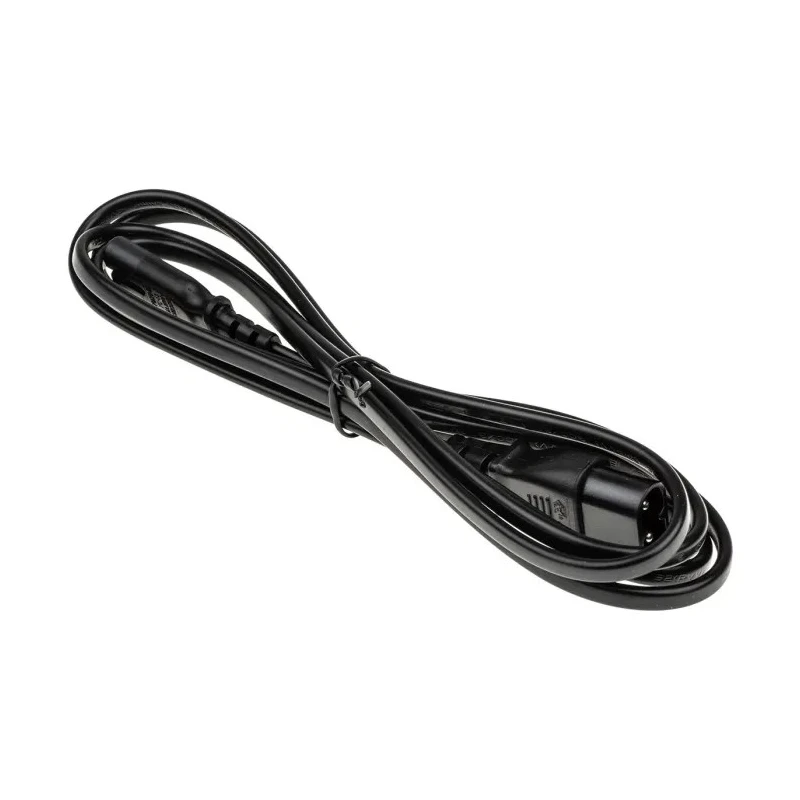

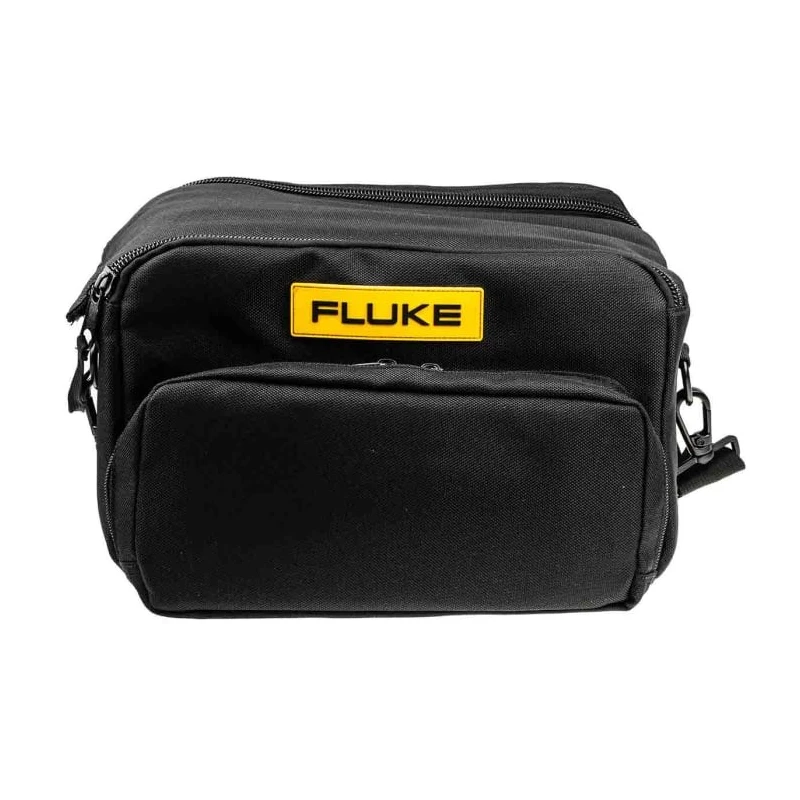

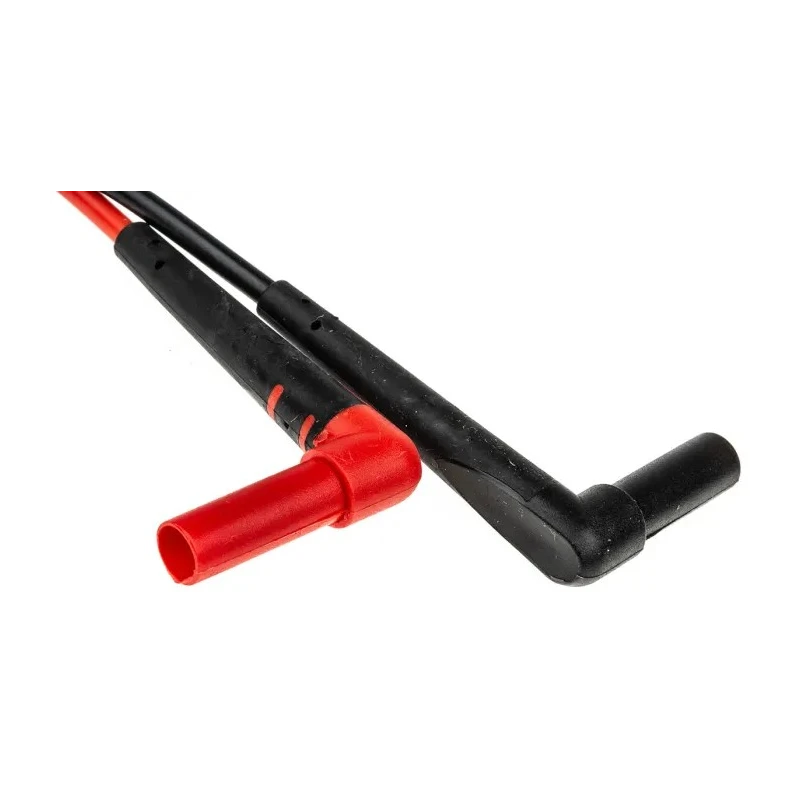

The product is supplied with a battery analyzer, 4-wire test pin set, BTL10 Basic Test Lead set, TL175 TwistGuard test leads with adapter, BP500 lithium-ion battery, BC500 AC charger, mini-USB cable, shoulder strap, belt strap, magnetic hanging strap, FlukeView® Battery Management Software, soft carrying case, spare fuses (2), and a zero-ohm calibration resistor.

Measures internal resistance with 0.001 milliohm resolution for accurate diagnostics. Captures DC voltage up to 1000 volts for high voltage string assessment. Includes wireless data transfer for remote display and mobile review.

Operates over eight hours on a 7.4V 3000mAh lithium-ion battery. Features CAT III 600V safety rating for battery power equipment testing. Logs up to 999 records per position with timestamps for traceability. Allows configuration of multiple thresholds with pass/warn/fail outcomes.

Records temperature via compatible probe with integrated sensor. Exports data via USB or wireless for PDF, CSV, and graphical reports. Sequence mode captures measurements automatically without manual saves. Ideal for maintenance, troubleshooting, and condition testing of stationary batteries.
