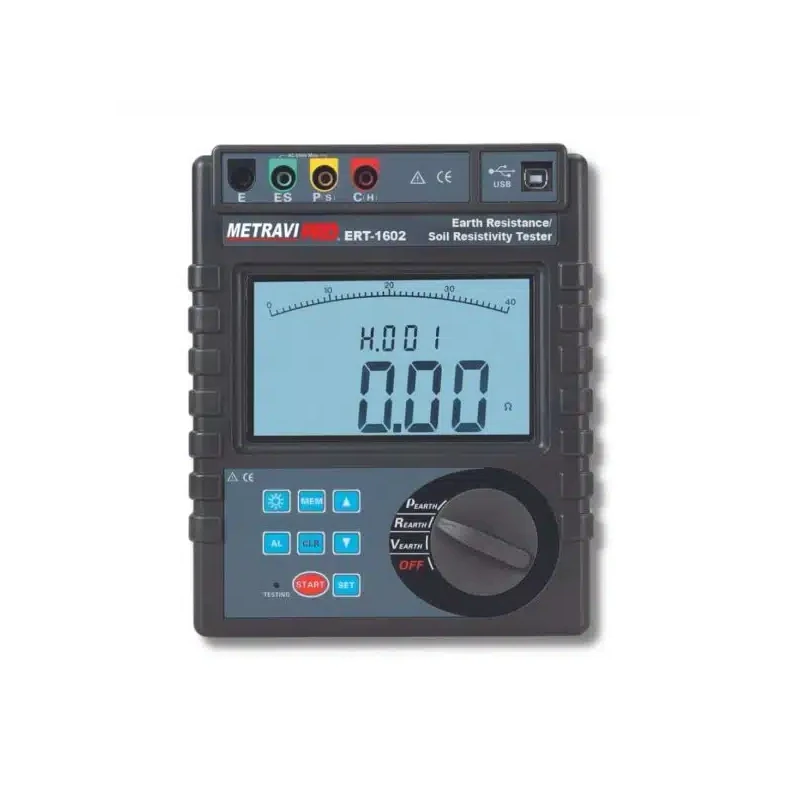

Metravi Earth Resistance and Soil Resistivity Tester PRO ERT-1602 image-1

Free Delivery in India | Lowest Global Shipping Charges

Metravi Earth Resistance and Soil Resistivity Tester PRO ERT-1602

Name: Metravi Earth Resistance and Soil Resistivity Tester PRO ERT-1602
Brand: Metravi
SKU: ADSYH
Price: 429.31 USD
Availability: InStock



SKU ADSYH Category Resistance Meters Brand Metravi Condition New

Specifications

Country of Origin	India
Brand	Metravi
Model	PRO ERT-1602
Weight	Meter 950g/Test wires 1560g/Auxiliary rods 935g
Electromagnetic Compatibility	IEC61326 (EMC)
Safety Standards	IEC61010-1 CAT III 300V/CAT IV 150V Pollution 2
Overload Protection	Earth resistance interfaces C(H)-E
Data hold	Hold function with “HOLD” symbol
Storage Temperature & Humidity	-20–60°C Less than 70%RH
Test Frequency	128Hz/111Hz/105Hz/94Hz (AFC)
USB interface	Audible “toot-toot-toot” alarm when value exceeds set limit
Alarm Function	Audible alert for over-limit readings
Auto Power-off	15 minutes after power-on without operation
Withstand Voltage	Greater than 20MΩ insulation (500V between circuit and enclosure)
Line Voltage	AC voltage to ground up to 600V max
Interference Test	Auto detection—voltage Greater than 5V triggers interference symbol
Data Access	Read function with “READ” symbol
Working Temperature & Humidity	-10–40°C Less than 80%RH
Overflow Indication	“OL” displayed when exceeding measurement range
LCD Dimension	Frame 128×75mm/Window 124×67mm
Tester Dimension	212×175×76mm
Testing Wires	Red 20m/Black 20m/Yellow 10m/Green 10m/Red 1.6m/Black 1.6m (6 pcs total)
Auxiliary Earth Rods	4 pcs Φ10×150mm
Auxiliary Earth Test Range	0.00kΩ–30kΩ (100R+rC Less than 50kΩ

Key Features

Import FFT (fast Fourier transform) technology, and AFC (automatic frequency control) technology, with unique anti-interference ability and environmental adaptability to ensure high repeated test consistency.
The large LCD, white backlight, and bar graph make the readings clear at a glance.
Features USB interface with data upload function; storage data can be uploaded to the computer and can be saved and printed.
Audio-visual Alarm and Overload Protection.
Earth Resistance: Rated current change-pole method, measurement current 20mA Max
Soil Resistivity: Wenner 4-pole measurement; Voltage to Earth: Average rectifier
Earth Voltage: Average rectification (between P(S)-ES)

Product Description

Metravi ERT-1602 / PRO ERT-1602 Digital Earth Resistance Tester is a high-precision instrument designed for accurate measurement of earth resistance, soil resistivity, and earth voltage in electrical systems. Ideal for power utilities, telecom installations, industrial plants, and grounding system maintenance, this tester ensures reliable safety verification and performance analysis. It supports 2-wire, 3-wire, and 4-wire testing methods, providing flexibility for various field conditions. With a wide measurement range up to 30kΩ for earth resistance and up to 600V AC for earth voltage, it delivers dependable results with ±2% accuracy. The backlit LCD display, bargraph indication, and data hold function ensure easy reading and efficient operation. Equipped with data logging up to 300 sets and USB interface, it enables seamless data storage and transfer. Built-in alarms, overload protection, and rugged IP54 design make it suitable for demanding environments, making it an essential tool for engineers and technicians. Available on EnvMart, these Resistance Meters are perfect for accurately measuring electrical resistance in circuits and components. Metravi Resistance Meters provide precision and reliability, making them ideal for professional electricians and laboratory use.
