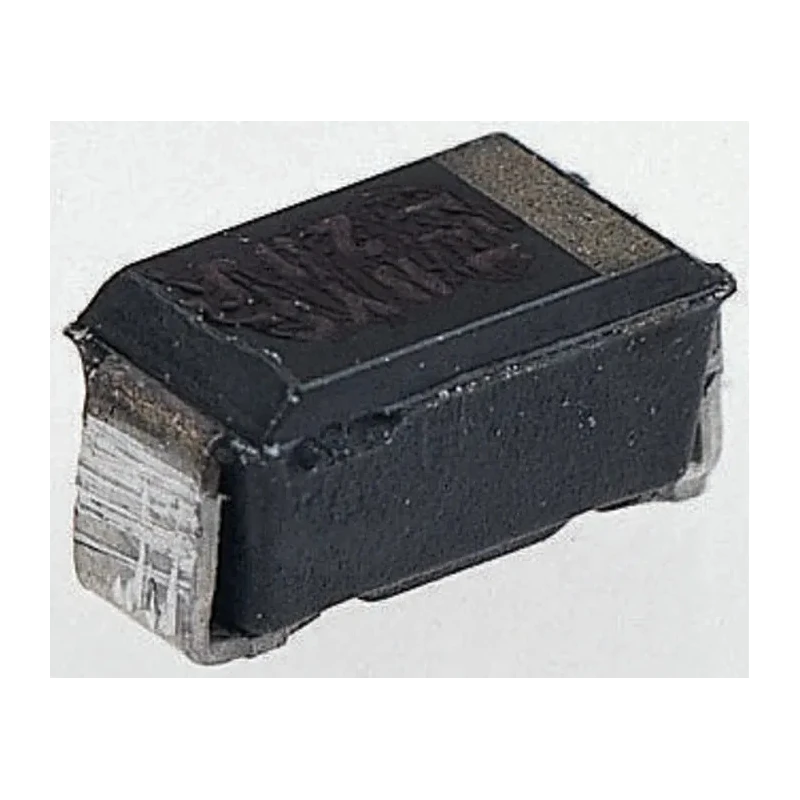

STMicroelectronics 1200 V 1 A Surface Mount Switching Diode DO-214AA STTH112U

STMicroelectronics STTH112U is a high-performance surface mount switching diode in a DO-214AA package designed for electronic applications requiring reliable switching and rectification. It supports a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 1200 V, making it suitable for various industrial and electronic uses.

The diode features a low forward voltage drop of 1.9 V which contributes to efficient power management and minimal energy loss. With a fast peak reverse recovery time of 75 ns, it is optimized for switching operations in power supplies and signal circuits.

Operating within a wide temperature range from -50°C to 175°C, the STTH112U diode performs robustly under demanding environmental conditions. Its peak non-repetitive forward surge current of 18 A allows it to withstand transient current spikes, enhancing circuit protection.

The physical size is compact with precise dimensions of 4.6 mm length, 3.95 mm width, 2.45 mm height, and a pin diameter of 0.86 mm, enabling efficient layout in compact PCB designs. The diode’s two-pin single configuration simplifies integration into standard electronic assemblies.

This switching diode is ideal for industrial electronics, power management, and switching regulator circuits. It is compliant with industry standards but without specific automotive or additional certifications, and is optimized for a variety of commercial and industrial applications requiring high voltage and fast switching capabilities.

DO-214AA package for reliable surface mounting. Maximum continuous forward current of 1 Ampere ensures robust operation. Peak reverse repetitive voltage rated at 1200 Volts. Low forward voltage drop of 1.9 Volts increases efficiency.

Fast switching with a peak reverse recovery time of 75 nanoseconds. Operates within a wide temperature range from -50°C to 175°C. Peak non-repetitive forward surge current up to 18 Amperes for surge protection. Compact dimensions: 4.6 mm length, 3.95 mm width, 2.45 mm height, and 0.86 mm diameter.

Two-pin single diode configuration for straightforward circuit integration. Designed for switching applications, ideal for industrial and electronic circuits. Explore more from the Semiconductor Switching Diodes category at EnvMart for innovative and reliable components.
