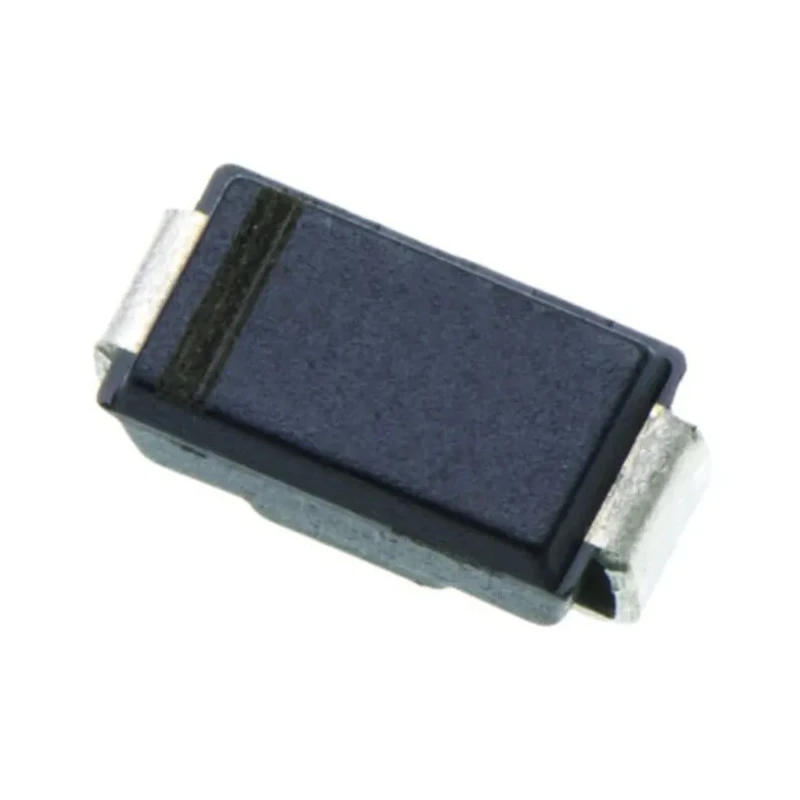

onsemi Silicon Junction Switching Diode 1 A Forward Current 100 V DO-214AC Package S1B

Free Delivery in India | Lowest Global Shipping Charges

onsemi Silicon Junction Switching Diode 1 A Forward Current 100 V DO-214AC Package S1B

Name: onsemi Silicon Junction Switching Diode 1 A Forward Current 100 V DO-214AC Package S1B
Brand: onsemi
SKU: 365067
Price: 0.14 USD
Availability: InStock



Category Switching Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.2mm
Length	4.75mm
Model	S1B
Width	2.95mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	DO-214AC
Sub Type	Silicon Junction
Minimum Operating Temperature	-55°C
Pin Count	2
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	1.1V
Peak Reverse Recovery Time trr	1.8μs
Maximum Forward Current If	1A
Maximum Peak Reverse Repetitive Voltage Vrrm	100V

Key Features

The diode provides a peak non-repetitive forward surge current of 30 amperes.
Operates efficiently within a wide temperature range from -55°C to 150°C.
Has a maximum forward voltage drop of 1.1 volts to minimize power loss.
Compact dimensions of 4.75 mm length, 2.95 mm width, and 2.2 mm height optimize PCB space.
Designed for surface mount technology with a 2-pin DO-214AC package configuration.
Peak reverse recovery time of 1.8 microseconds supports high-speed switching applications.
No industry automotive or standard approvals are applicable for this component.
Ideal for discrete semiconductor switching, protection, power supply, and rectification tasks.

Product Description

onsemi S1B is a silicon junction switching diode designed for applications requiring reliable rectification and switching performance. This surface-mount diode supports a maximum forward current of 1 ampere and can withstand a maximum peak reverse repetitive voltage of 100 volts, making it suitable for moderate power electronics circuit protection.

The diode body is encapsulated in a compact DO-214AC package measuring 4.75 mm in length, 2.95 mm in width, and 2.2 mm in height. This small form factor assists in saving PCB space in high-density assemblies, while the 2-pin configuration ensures compatibility with surface mount assembly processes.

With a peak non-repetitive forward surge current rating of 30 amperes, the S1B diode provides robustness against transient overload conditions. Its maximum forward voltage drop of 1.1 volts helps to reduce conduction losses, improving energy efficiency in switching power supplies and converters.

The diode's peak reverse recovery time of 1.8 microseconds supports medium switching speed applications. It is rated for an operating temperature range extending from -55°C to 150°C, suitable for industrial and commercial environments.

While this component does not carry specific standards or automotive approvals, it belongs to a trusted line of ON Semiconductor rectifier and switching diodes built for consistent quality and long-term reliability in various industrial, laboratory, and electronic manufacturing use cases.

The diode is ideal for use in discrete semiconductor switching circuits, protection devices, power supplies, and signal rectification tasks. Its robust electrical and thermal performance qualifies it for use in industrial, telecommunications, and consumer electronic equipment.

Engineers benefit from ease of integration in PCB layouts due to the compact DO-214AC package and surface mount suitability. Explore other ON Semiconductor Switching Diodes and components in the EnvMart catalog to find complementary parts for your designs and production needs.
