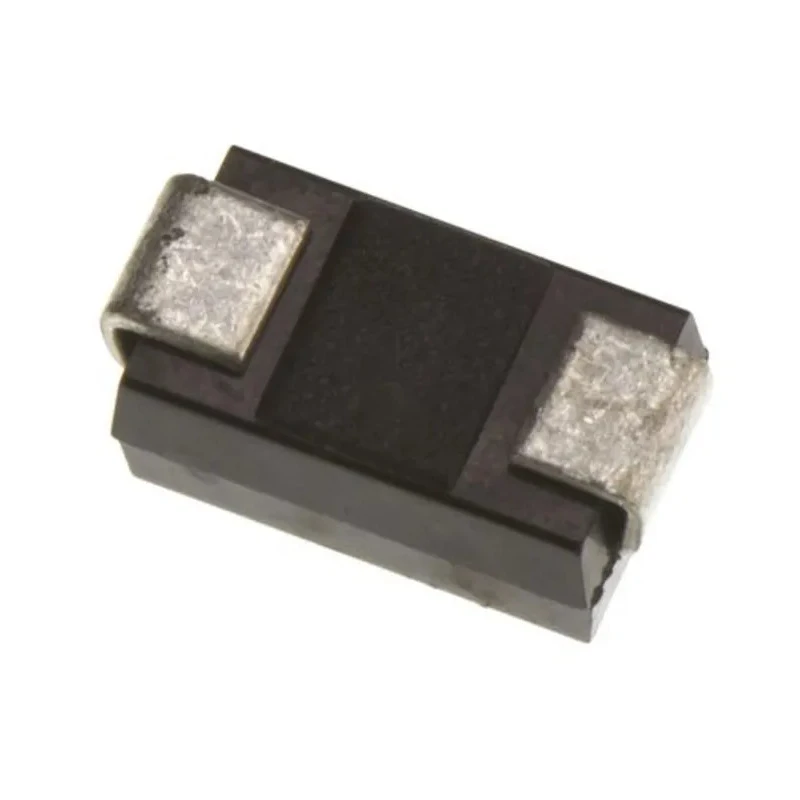

onsemi Silicon Junction Single Switching Diode, 1 A Forward Current, 600 V Voltage, Surface Mount DO-214AC Package S1J

Free Delivery in India | Lowest Global Shipping Charges

onsemi Silicon Junction Single Switching Diode, 1 A Forward Current, 600 V Voltage, Surface Mount DO-214AC Package S1J

Name: onsemi Silicon Junction Single Switching Diode, 1 A Forward Current, 600 V Voltage, Surface Mount DO-214AC Package S1J
Brand: onsemi
SKU: 271106
Price: 0.09 USD
Availability: InStock



Category Switching Diodes Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.2mm
Length	4.75mm
Model	S1J
Width	2.95mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	DO-214AC
Sub Type	Silicon Junction
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Power Dissipation Pd	1.4W
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	1.1V
Peak Reverse Recovery Time trr	3ns
Maximum Forward Current If	1A
Maximum Peak Reverse Repetitive Voltage Vrrm	600V

Key Features

Single diode configuration optimized for switching applications.
Maximum forward current of 1 ampere ensures efficient conduction.
Surface mount type with DO-214AC package for PCB integration.
High peak reverse repetitive voltage of 600 volts withstands transient spikes.
Maximum forward voltage drop of 1.1 volts minimizes power loss.
Compact size with length 4.75 mm, width 2.95 mm, and height 2.2 mm.
Operates reliably between -55°C and 150°C ambient temperature range.
Peak non-repetitive forward surge current capability of 30 amperes.

Product Description

onsemi S1J silicon junction switching diode is engineered for electronic applications requiring reliable switching performance. This single diode features a surface mount DO-214AC package, providing easy integration into printed circuit boards. The device supports a continuous forward current of 1 ampere and withstands peak reverse voltages up to 600 volts, making it suitable for voltage spike protection and switching circuits.

The compact diode measures 4.75 mm in length, 2.95 mm in width, and 2.2 mm in height, facilitating its use in space-constrained designs. Its maximum forward voltage of 1.1 volts ensures low conduction losses. Additionally, it operates efficiently over a wide temperature range from -55 to 150 degrees Celsius.

This diode boasts a peak non-repetitive forward surge current rating of 30 amperes, enabling it to handle transient overcurrent conditions safely. The extremely fast reverse recovery time of 3 nanoseconds allows rapid switching, critical for high-frequency circuits.

Typical use cases include power supply circuits, signal rectification, voltage clamping, and industrial electronic assemblies. It is ideal for applications in the manufacturing, automation, and semiconductor industries where durable and high-performance Switching Diodes are required.

Single diode configuration optimized for switching applications. Maximum forward current of 1 ampere ensures efficient conduction. Surface mount DO-214AC package suitable for automated assembly. High peak reverse voltage rating of 600 volts withstands spikes.

Compact dimensions with a length of 4.75 mm and width of 2.95 mm. Wide operating temperature from -55°C to 150°C for harsh environments. Peak surge current of 30 amperes supports transient conditions. Fast reverse recovery time of 3 nanoseconds for high-speed switching.

Low forward voltage drop of 1.1 volts reduces power loss. Designed for applications in power electronics, industrial automation, and manufacturing. Choose onsemi S1J for reliable industrial semiconductor diode performance. Explore more high-quality semiconductor components at EnvMart.
