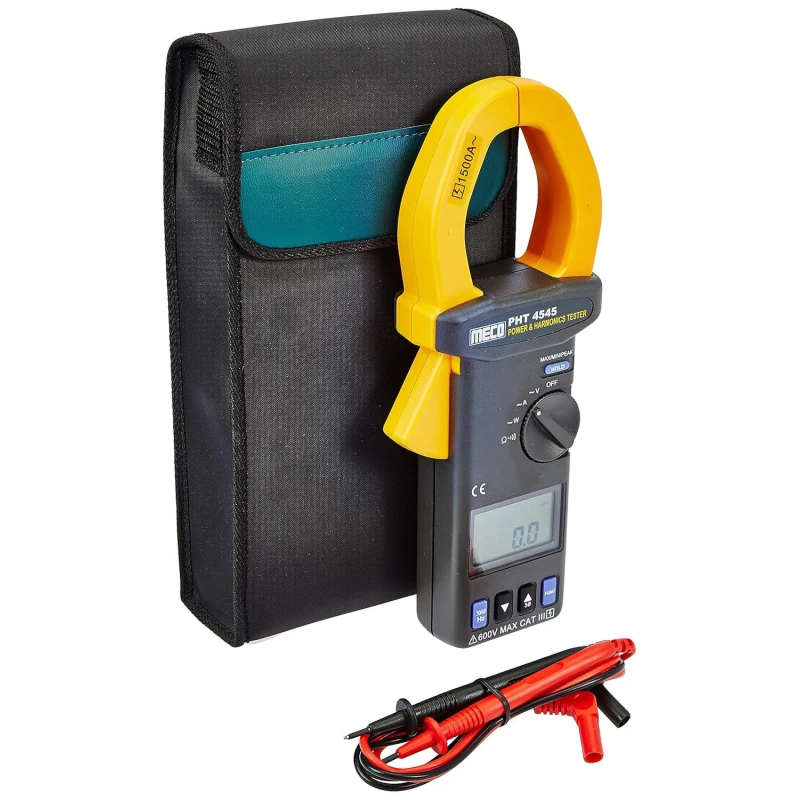

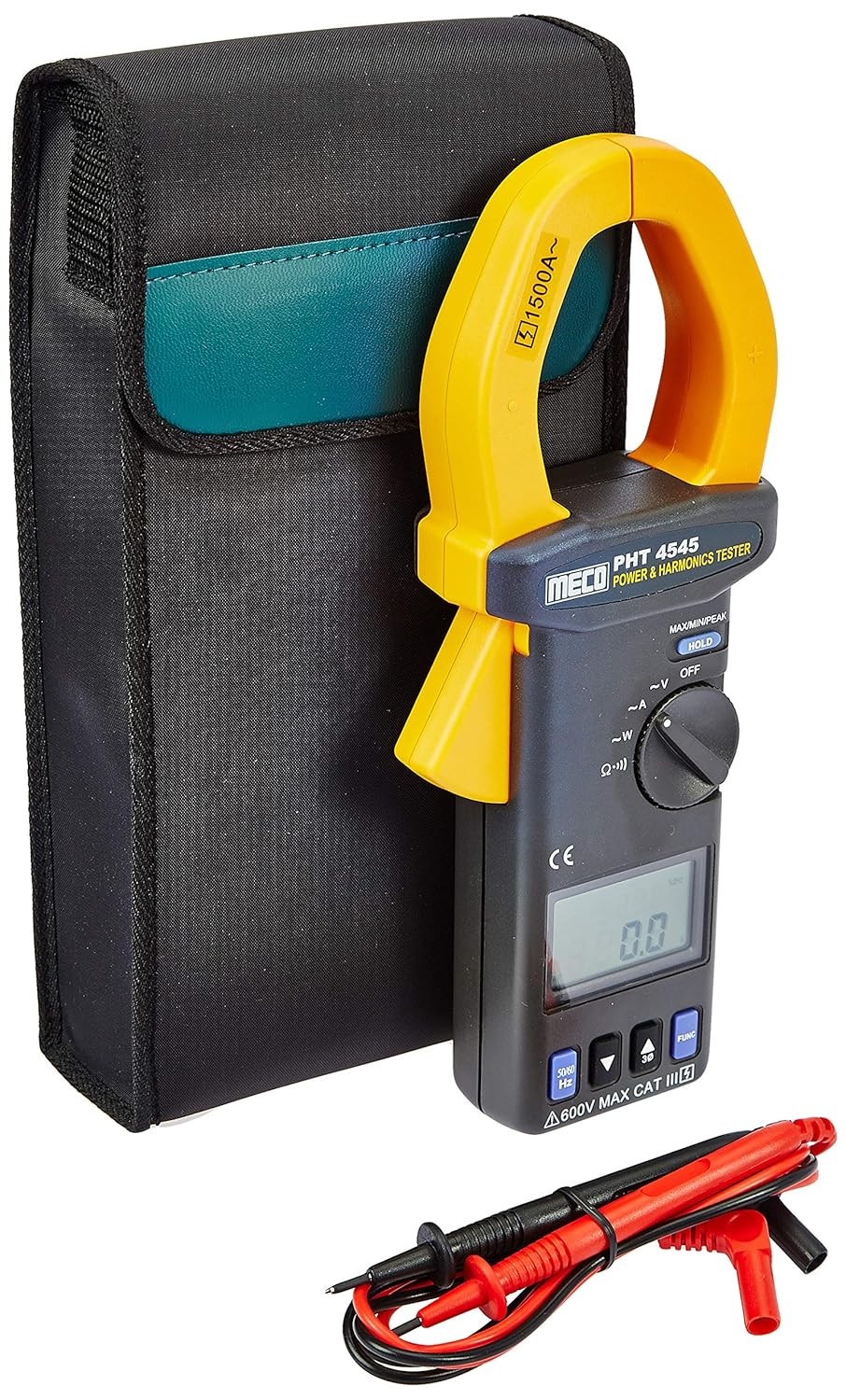

Meco Ac Clamp On Power & Harmonics Tester PHT4545
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Meco PHT 4545 /Test Leads x 1 Pair /Battery Installed /Instruction Manual x 1 Pc /Carrying Bag x 1 Pc |
| Operating Humidity | Less than 85%Relative |
| Power Consumption | 10mA (approx) |
| Display | 4+4 Digits LCD |
| Brand | Meco |
| Dimension | 271×112×46mm (approx) |
| Power | Two 1.5V AA battery |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Model | PHT4545 |
| Weight | 0.65 Kg |
| Auto Power Off | 30 Minutes |
| Storage Humidity | Less than 75% Relative |
| Option | Alligator Clips |
| Jaw opening | Cable Dia 55mm (approx) |
| LCD Update Rate | 2times /sec |
| No.of Samples /Period | 512(V&A) 256(W) |
Key Features
- W, KW, HP, VA, KVA, VAR, KVAR
- PF, Phase Angle (Φ)
- Energy (WH, KWH)
- Balanced 3Φ Power Quality
- Balanced 3Φ Sequence
- Programmable CT Ratio (1 to 250)
- Dual Displays (W + PF, VA + KVAR...)
- Active power in HP
- Resistance and Continuity with Beeper
Product Description
The Meco PHT4545 is a high-precision clamp-on meter designed to measure AC power parameters along with harmonic content for professional power quality analysis. It is ideal for electricians and energy auditors assessing the performance of electrical systems. It offers true RMS measurements of voltage, current, active/reactive power, power factor, and total harmonic distortion (THD). The large LCD display, waveform capture, and USB data output enhance diagnostic capabilities in industrial environments. It plays a vital role in energy efficiency analysis, system troubleshooting, and load balancing.
Available on EnvMart, these Digital Analyzers are designed for accurate analysis of electrical parameters and power quality. Meco Digital Analyzers provide precision, durability, and reliability for industrial, laboratory, and maintenance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Meco PHT4545 can measure W, KW, HP, VA, KVA, VAR, KVAR, power factor (PF), phase angle (Φ), and energy (WH, KWH).
The maximum jaw opening of the Meco PHT4545 is approximately 55mm, suitable for various cable diameters.
The Meco PHT4545 features a 4+4 digits LCD display for clear visibility of measurements.
The Meco PHT4545 operates within a temperature range of -10°C to 50°C.
The Meco PHT4545 weighs approximately 0.65 kg, making it portable for field use.
The package includes the Meco PHT 4545, a pair of test leads, an installed battery, an instruction manual, and a carrying bag.
The Meco PHT4545 has a power consumption of approximately 10mA.
The Meco PHT4545 operates in humidity levels of less than 85% relative humidity.
The Meco PHT4545 is powered by two 1.5V AA batteries.
The storage temperature range for the Meco PHT4545 is -20°C to 60°C.
The LCD of the Meco PHT4545 updates at a rate of 2 times per second.
The Meco PHT4545 features an auto power off function that activates after 30 minutes of inactivity to conserve battery life.
