BK Precision Metrix Function Generator 0.001 Hz Min, 20 MHz Max FM Modulation GX320

BK Precision GX320 Function Generator is a versatile and high-performance instrument designed for education, scientific research, and electronic product design. Operating over a frequency range from 0.001 Hz to 20 MHz with FM modulation capabilities, it is suitable for generating accurate sine, triangle, square, and arbitrary waveforms.

Built with Direct Digital Synthesis (DDS) technology, the GX320 provides enhanced frequency accuracy of ±20 ppm and excellent frequency stability. It offers internal and external Amplitude Modulation (AM) and Frequency Modulation (FM), along with features such as GATE, BURST, FSK, and PSK modulation methods. Adjustable phase synchronization allows multiple generators to be cascaded precisely for complex testing scenarios.

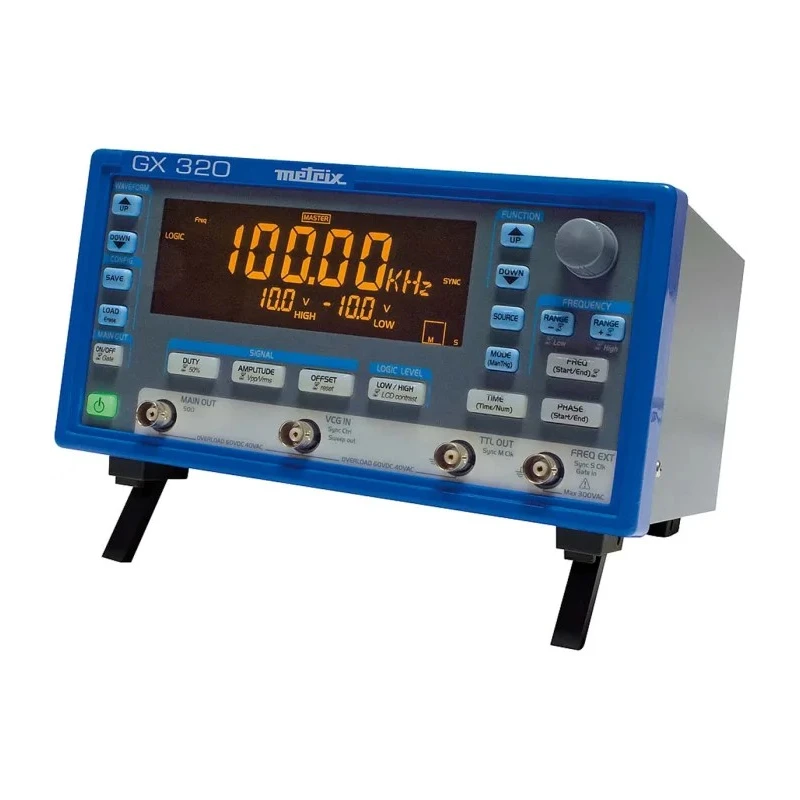

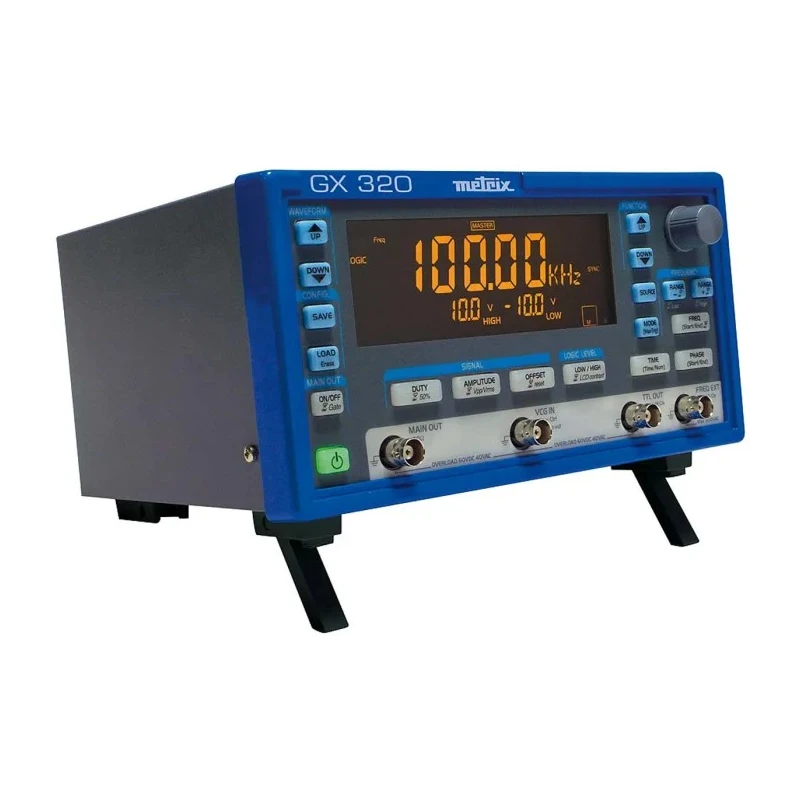

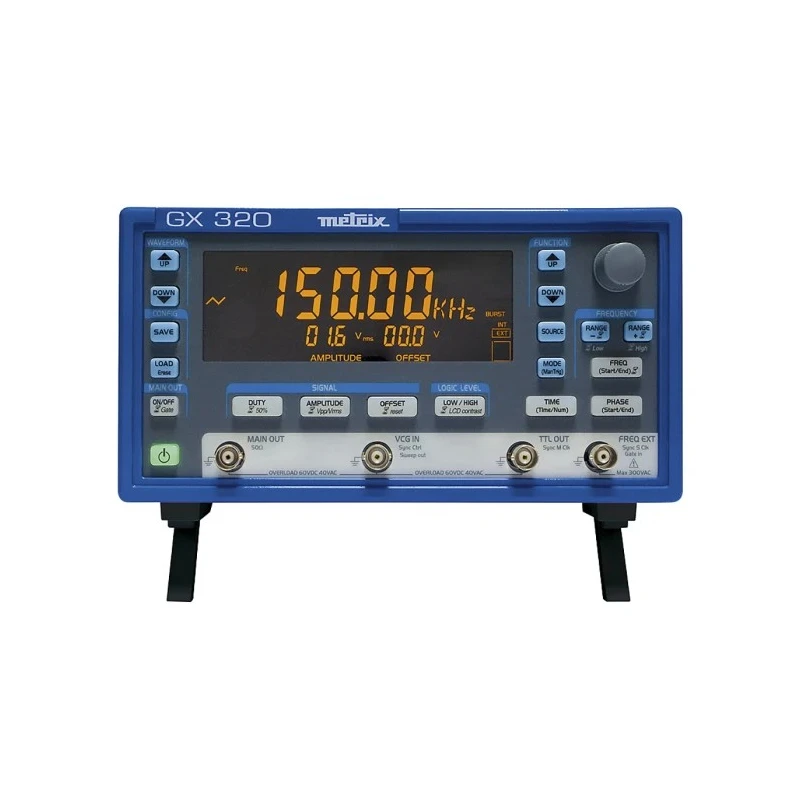

The unit features a large, easy-to-read LCD screen (125mm x 45mm) showing 5-digit frequency readouts with 20mm high digits. The TTL output level is fixed at 5V, with digital amplitude and offset controls for precise waveform shaping. The device has an output impedance of 50Ω and an input impedance of 1mΩ. Operating temperature ranges from 0°C to 40°C, making it reliable in typical laboratory and industrial conditions.

The compact form factor with dimensions 190 mm (L) x 227 mm (W) x 130 mm (H) and a weight of 2.9 kg makes it portable and easy to integrate into test setups. Standards compliance with IEC/EN assures safety and performance. The plug type is RJ45 for connectivity.

Typical applications include R&D, education, training, test, and production environments across laboratories, electronics manufacturing, and industrial product design. The GX320 is supplied with mains power lead, multi-language operating manuals, programming manuals, and necessary USB/Ethernet cables depending on model variants.

Utilizes DDS technology for high frequency accuracy and stability. Includes sinewave, triangle, square, arbitrary waveforms with frequencies from 0.001 Hz to 20 MHz. Supports internal and external AM, FM modulation, GATE, BURST, FSK and PSK.

Features adjustable phase synchronization for cascading generators. Large 125mm x 45mm LCD screen displaying 5-digit frequency readings. Equipped with TTL output level of 5V and digital amplitude and offset controls. Time base accuracy of ±20 ppm ensures precise signal generation.

Compact and robust design with IEC/EN standards compliance. Discover a comprehensive range of measuring and testing instruments at EnvMart to complement your laboratory and industrial testing requirements.
