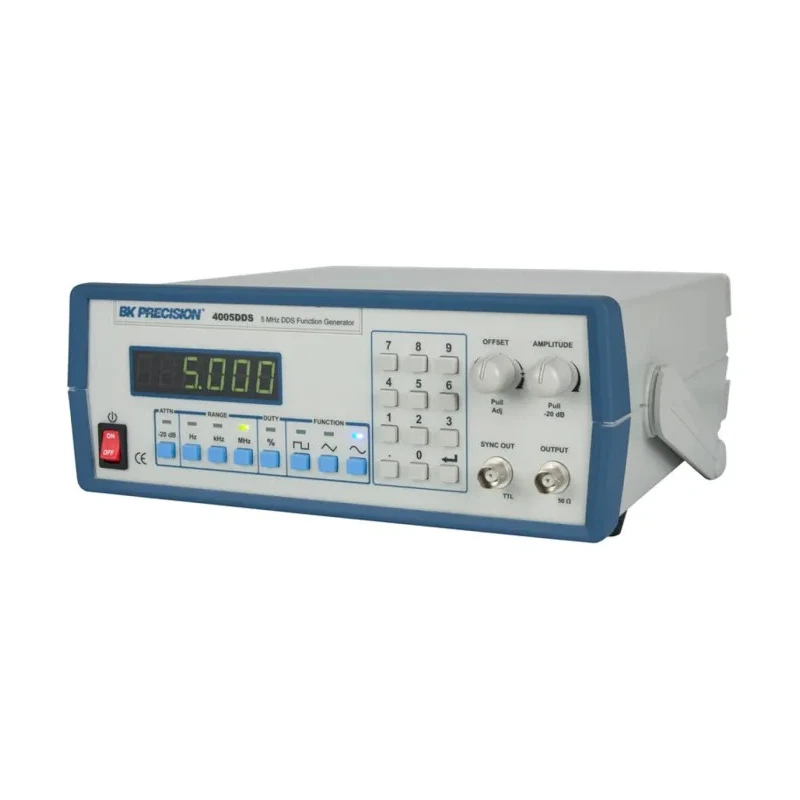

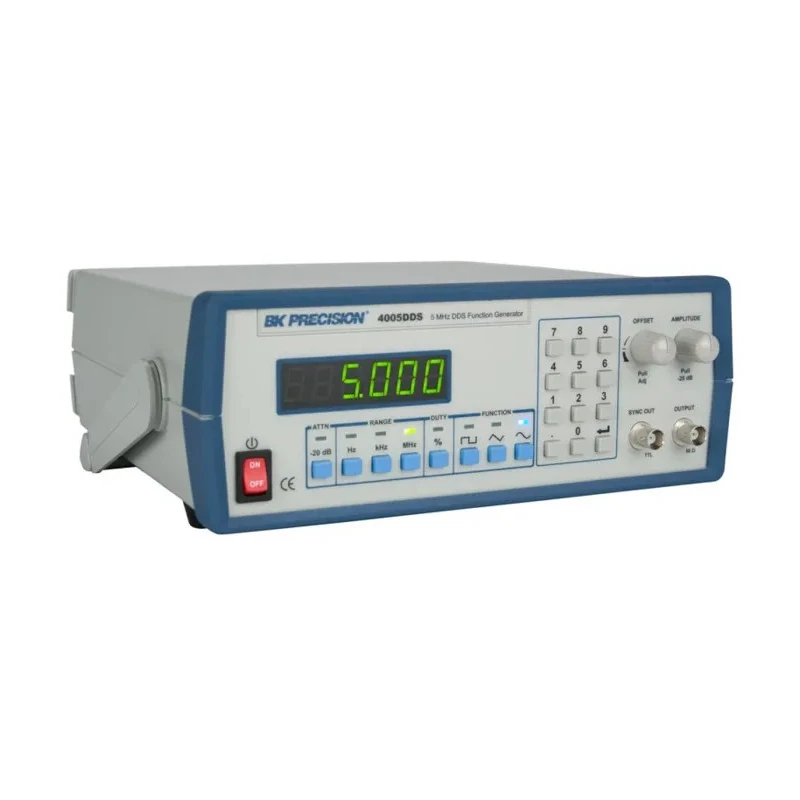

BK Precision 5 MHz DDS Function Generator, 1 Hz to 5 MHz Frequency Range, 20 V Pk-Pk Output Amplitude BK4005DDS

BK Precision BK4005DDS Function Generator is a versatile direct digital synthesis (DDS) instrument designed for accurate waveform generation from 1 Hz minimum to 5 MHz maximum frequency. It produces sine, square, triangle, and arbitrary waveforms with precision suitable for industrial, laboratory, HVAC, educational, and electronic manufacturing applications.

The output voltage can be varied up to 10 V peak-to-peak into a 50 Ω load, or up to 20 V peak-to-peak for an open circuit. This flexibility combined with a continuously variable DC offset allows users to inject signals directly into circuits at the required bias levels.

The device's compact form factor (Length: 279.4 mm, Width: 297.2 mm, Height: 101.6 mm) and moderate weight (2.3 kg) make it portable yet durable enough for sustained professional use.

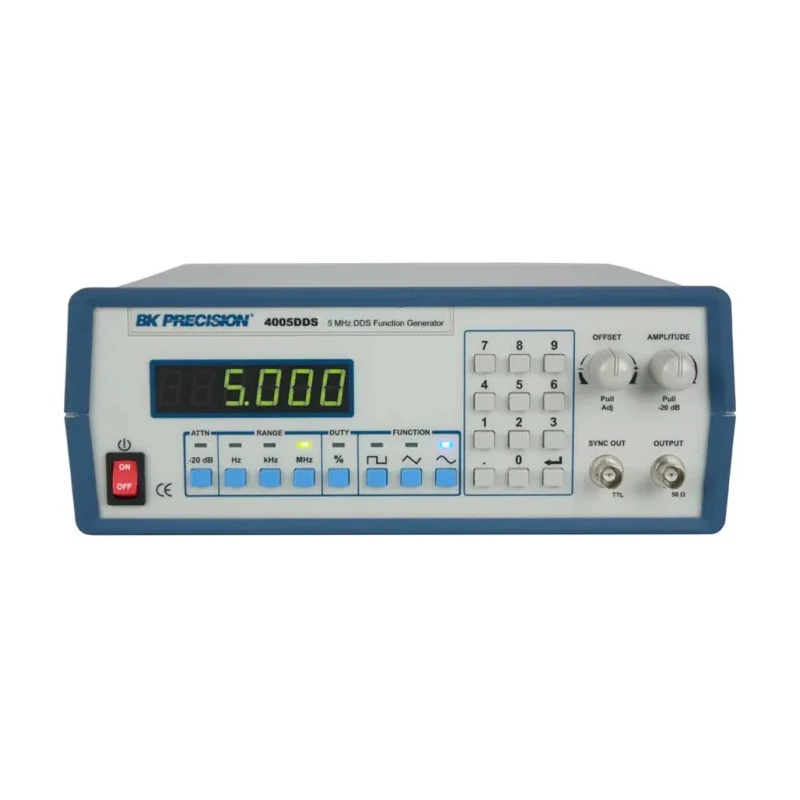

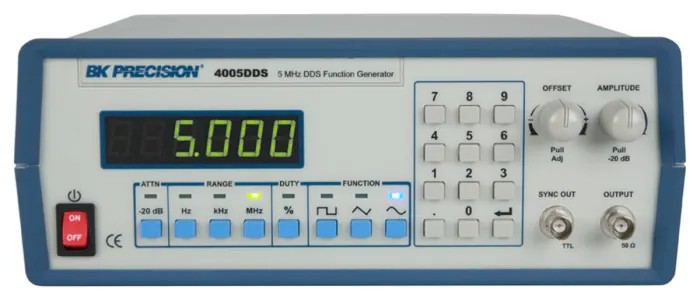

Additional features include a bright LED display, numeric keypad for rapid frequency entry, and front panel controls that allow output attenuation up to 40 dB, adjustable duty cycle, and DC offset. This model maintains a time base accuracy of 0.02%, ensuring signal stability and reliability.

It operates safely within environmental temperatures ranging from 0°C to 40°C and comes with an output impedance of 50 Ω, meeting common signal generation standards. The attenuator supports -20 dB for refined signal amplitude control.

This Function Generator is ideal for testing, calibration, and research within electronics labs, manufacturing facilities, educational institutions, and other industrial domains where precise frequency signals are required.

The device supports sine, square, and triangle waveforms for versatile signal generation. Utilizes direct digital synthesis (DDS) technology for accurate frequency output. Features a bright LED display with numeric keypad for quick frequency input.

Adjustable duty cycle and DC offset allow precise signal conditioning. The output amplitude reaches up to 20 V peak-to-peak for open circuit and 10 V peak-to-peak into 50 Ω load. Compact dimensions and sturdy build make it suitable for various industrial and laboratory environments.

Operates within 0°C to 40°C, ensuring reliable performance in typical lab conditions. Output impedance standardized at 50 Ω for compatibility with test equipment. The attenuator supports up to -20 dB to manage signal levels effectively.
