Tektronix Waveform Generator 25 MHz Maximum Frequency 1 Hz Minimum Frequency USB Interface Capacitive Touch Display AFG31021

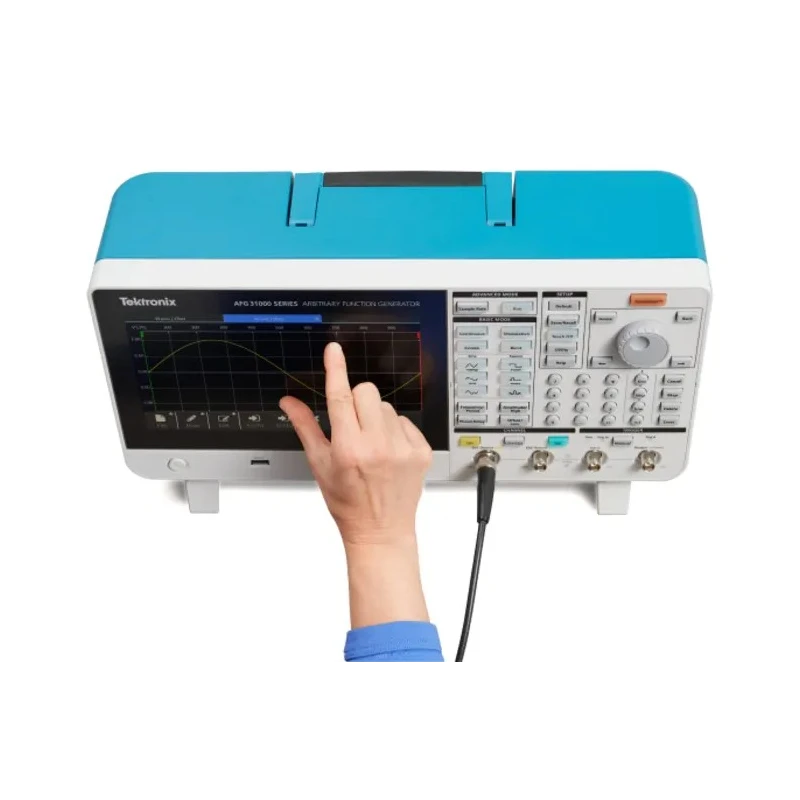

Tektronix AFG31021 Waveform Generator is a high-performance instrument designed for precise waveform generation with a maximum frequency of 25 MHz and minimum frequency as low as 1 Hz. Equipped with a modern 9-inch capacitive touch display, the device offers intuitive operation akin to smart devices, enabling easy navigation and quick access to commonly used settings.

The AFG31021 incorporates patented InstaView™ technology that allows engineers to monitor actual waveforms in real time directly at the device under test, eliminating dependency on oscilloscopes and probes, thus improving testing accuracy and efficiency. It supports advanced waveform programming with sequencing options enabling up to 256 steps for complex waveforms and includes a built-in ArbBuilder for creating arbitrary waveforms on the instrument itself.

This single-channel generator provides 14-bit vertical resolution ensuring low distortion output of standard waveforms such as sine, square, ramp, pulse, and noise. It features a frequency sweep, burst, and modulation modes including AM, FM, and PM to accommodate diverse testing requirements.

The device outputs are robustly protected from overvoltage and overcurrent events to safeguard the instrument and the device under test. Additionally, it includes a unique Double Pulse Test application to generate voltage pulses with varying widths for semiconductor testing.

Constructed to operate reliably between 0°C and 50°C, the waveform generator complies with RoHS standards and features USB interface connectors. Its compact dimensions (Length 412.8 mm, Width 143.3 mm, Height 191.8 mm) and a weight of 4.7 kg support convenient deployment in laboratory and industrial environments.

Supports advanced waveform generation and programming capabilities. Features patented InstaView™ real-time waveform monitoring technology. 9-inch capacitive touch screen with smart device-like interaction for easy control.

Supports sequencing with up to 256 steps for complex waveform programming. Built-in ArbBuilder enables arbitrary waveform creation without PC connection. Outputs protected against overvoltage and current to prevent instrument damage.

Includes built-in Double Pulse Test application for DUT voltage pulse generation. Offers 14-bit vertical resolution with various built-in waveforms including sine, square, and ramp. Operates within temperature range 0°C to 50°C with RoHS compliance.

This product suits demanding industrial, laboratory, manufacturing, and telecommunications test applications, providing precise and flexible waveform generation. For more options, browse the Function Generator category or explore Tektronix brand products at EnvMart.
