Tektronix High-Performance Arbitrary Waveform Generator 100 MHz Max, 1 Hz Min AFG31101

Tektronix AFG31101 is a high-performance arbitrary Function Generator designed for precise signal generation in various industrial and laboratory applications. With a maximum frequency of 100 MHz and a minimum frequency capability of 1 Hz, this single-channel device offers versatile waveform generation options including sine, square, ramp, and pulse waveforms with low distortion due to its 14-bit vertical resolution.

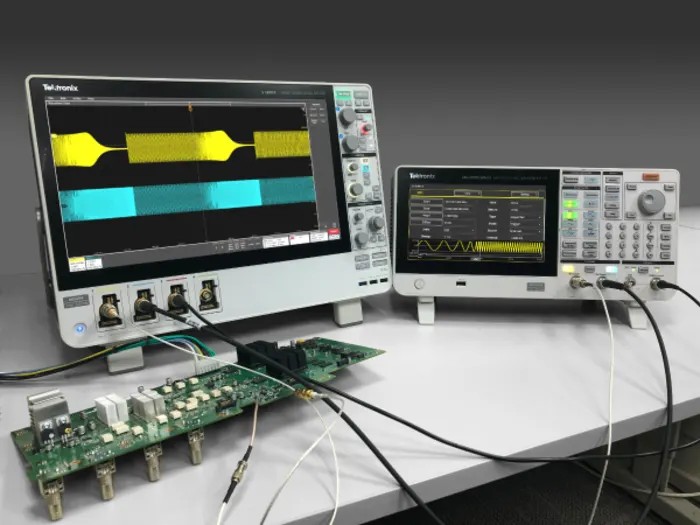

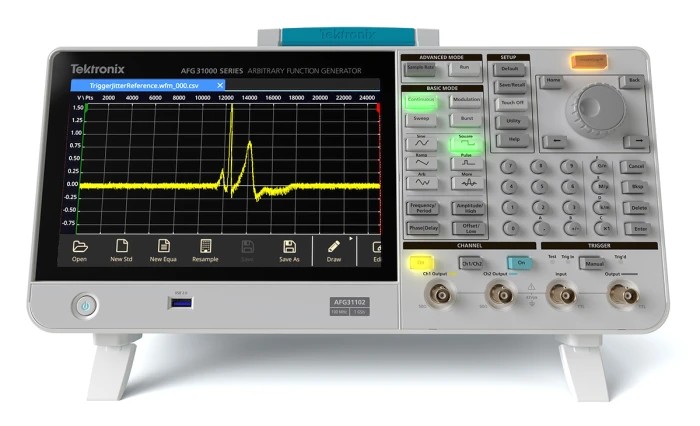

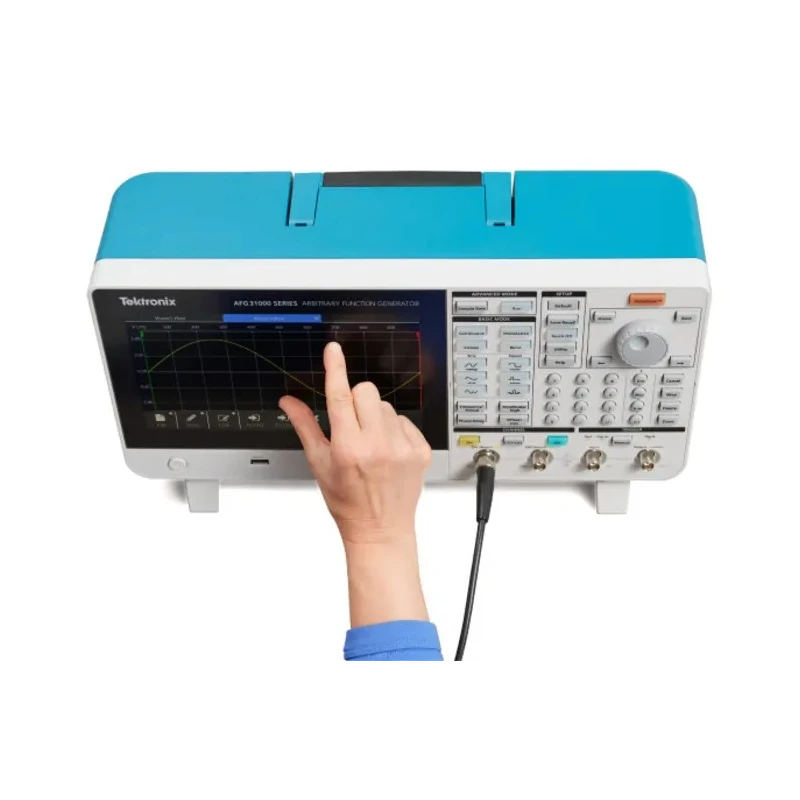

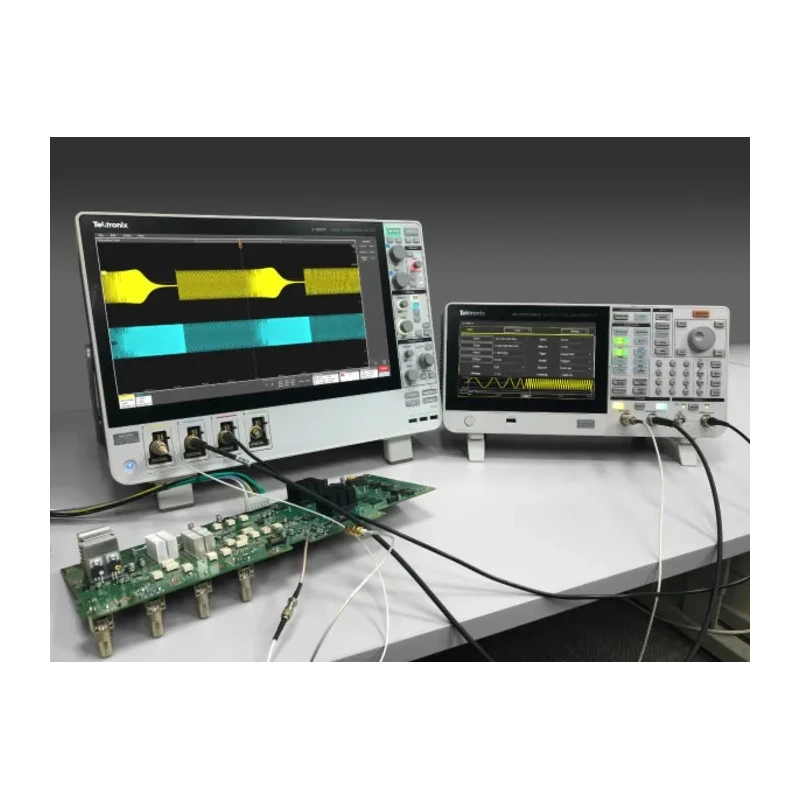

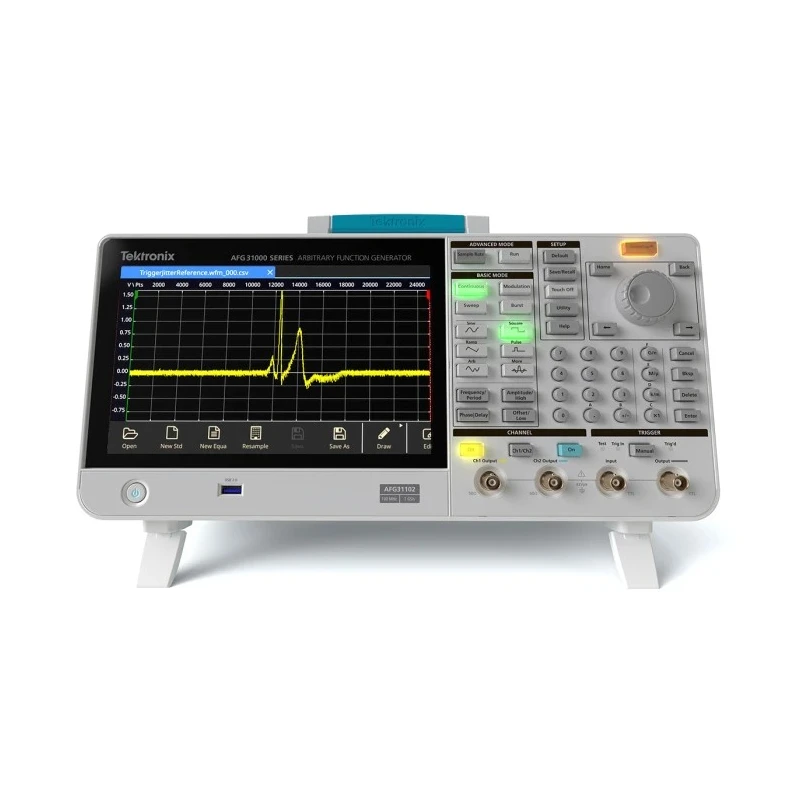

The device features a 9-inch capacitive touch screen that mimics a smart device interface, enabling intuitive operation with pinch, zoom, and scroll gestures. The patented InstaView™ technology stands out by allowing engineers to view the actual waveform at the Device Under Test (DUT) in real time without oscilloscope probes, enhancing measurement accuracy and reducing uncertainties caused by impedance mismatches.

Its sequencing capabilities accommodate programming of up to 256 steps in complex waveforms, while the built-in ArbBuilder allows waveform creation and editing directly on the instrument, eliminating the need for external computers. The outputs include protected circuitry to prevent damage from over voltage and current scenarios.

The AFG31101 maintains operational reliability from 0°C to 50°C and features a compact form factor with dimensions of 412.8 mm length, 143.3 mm width, and 191.8 mm height, weighing approximately 4.7 kg. It is compliant with RoHS standards.

This waveform generator is highly useful in industrial, laboratory, manufacturing, and research environments requiring precise and flexible signal generation, including testing, calibration, and development of electronic devices.

Features a 9-inch capacitive touch screen with modern user interface and shortcuts. Patented InstaView™ technology provides real-time waveform visualization at the device under test. Supports 14-bit vertical resolution for low distortion output waveforms.

Includes advanced waveform generation and programming capabilities with built-in arbuilder for custom wave creation. Equipped with output amplitude range from 1 mVpp to 10 Vpp into 50 Ω loads. Explore more on industrial measuring and testing equipment at EnvMart for cutting-edge Tektronix instrumentation.
