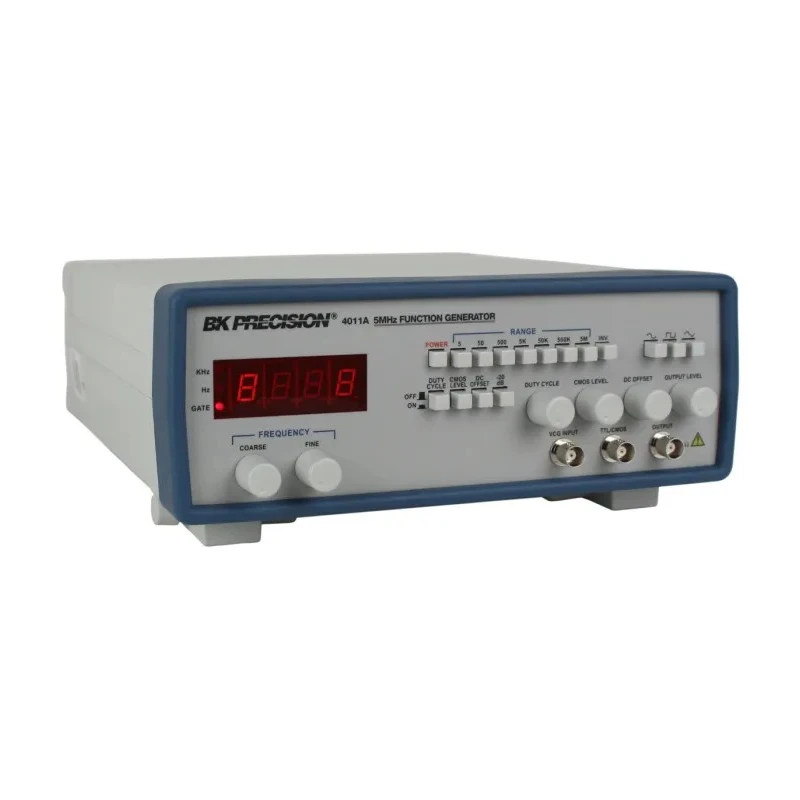

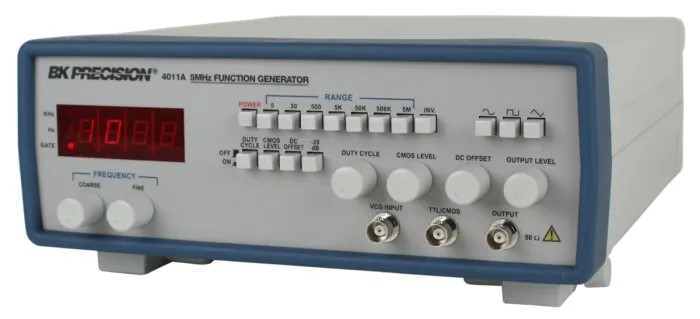

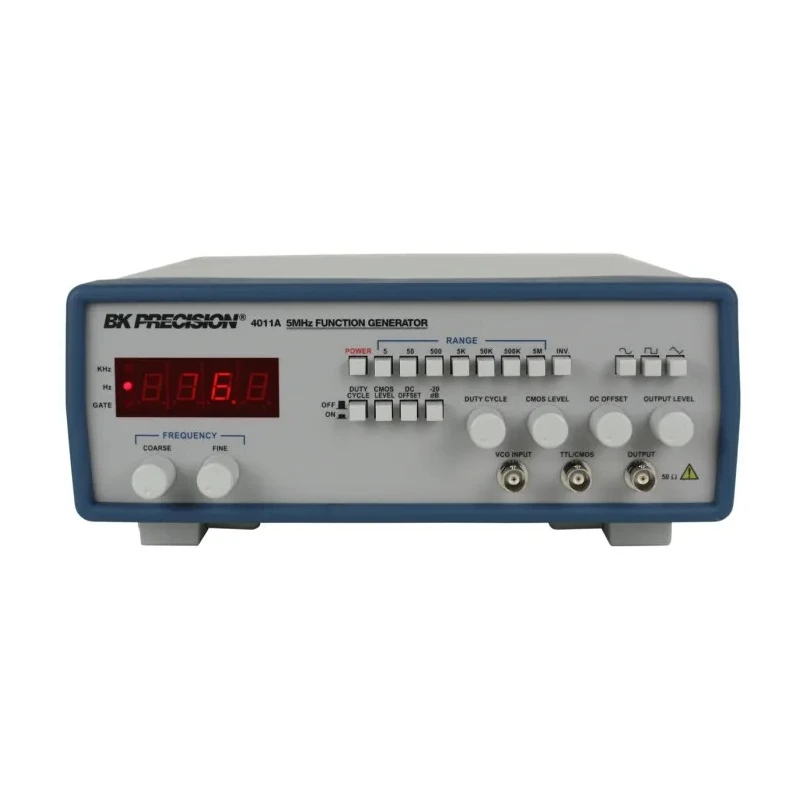

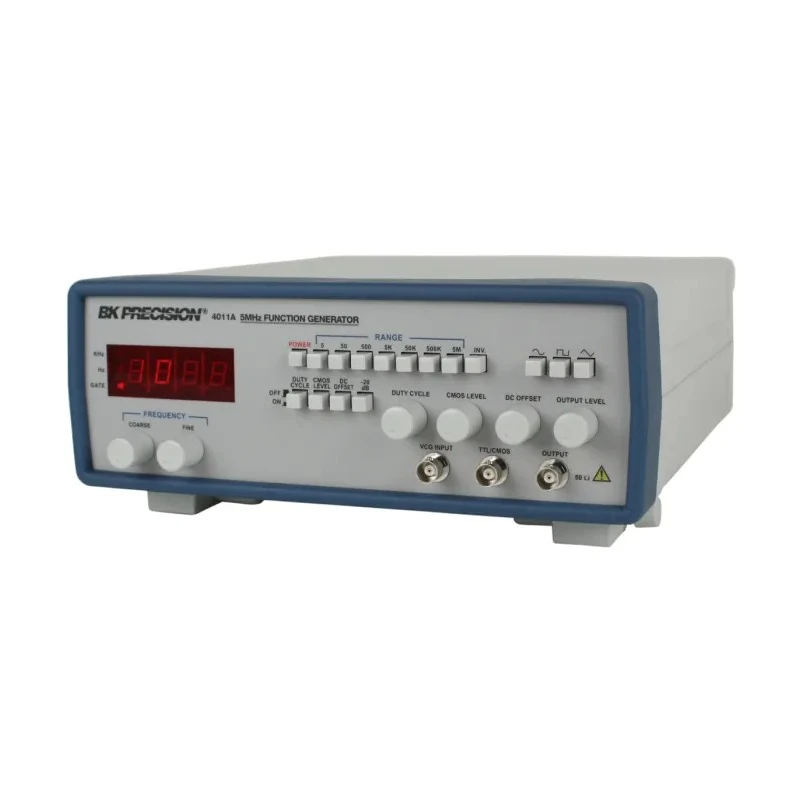

BK Precision Function Generator 0.5 Hz Min, 5 MHz Max 20 V Pk-Pk Output BK4011A
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | BK Precision |
| Height | 114mm |
| Length | 298mm |
| Model | BK4011A |
| Gross Weight | 1.8kg |
| Width | 264mm |
| Output Impedance | 50Ω |
| Input Impedance | 10kΩ |
| Attenuation | -20 dB |
| Time Base Accuracy | ±10 ppm |
| Standards/Approvals | UL |
| Maximum Frequency Range Sinewave | 5MHz |
| Minimum Frequency Range Sinewave | 0.5Hz |
| Maximum Frequency Range Square Pulse/Arbitrary Waveform | 5MHz |
| Minimum Frequency Range Square Pulse/Arbitrary Waveform | 0.5Hz |
| TTL Output Level | 2.4V |
| Output Amplitude | 20 V Pk-Pk |
| CMOS Output Level | 4 to 14 V Pk-Pk |
Key Features
- Outputs sine, square, triangle, pulse, and ramp waveforms for versatile testing.
- Features coarse and fine frequency tuning with a 4-digit LED display.
- Supports variable duty cycle, DC offset, and amplitude output plus a 20 dB attenuator.
- Provides 20 V Pk-Pk output open circuit and 10 V Pk-Pk into 50 Ω load impedance.
- Includes CMOS and TTL output levels suitable for various digital circuit testing.
- Compact design with dimensions 298mm (L) x 264mm (W) x 114mm (H) weighing 1.8 kg.
- Time base accuracy of ±10 ppm ensures precision signal generation.
- Equipped with 50 Ω output impedance and 10 kΩ input impedance for standard interfacing.
Product Description
BK Precision BK4011A is a high-performance function generator designed for industrial and laboratory applications requiring precision frequency generation. Covering a wide frequency range from 0.5 Hz to 5 MHz, it supports sine, square, triangle, pulse, and ramp waveforms, making it ideal for testing electronic circuits, signal processing, and communications equipment.
The instrument offers both coarse and fine tuning with a clear 4-digit LED display, facilitating effortless adjustments. Its output amplitude can be varied, and it includes a 20 dB attenuator to accommodate diverse testing scenarios while delivering up to 20 V peak-to-peak open circuit and 10 V peak-to-peak into 50 Ω load. Output impedance of 50 Ω and input impedance of 10 kΩ ensure compatibility with a variety of devices.
Additional features include variable duty cycle, variable DC offset, and CMOS output levels ranging from 4 to 14 V Pk-Pk, plus TTL output at 2.4 V, suitable for logic level transitions testing. The compact and robust design measures 298 mm length, 264 mm width, and 114 mm height, with a net weight of 1.8 kg, suitable for bench-top or portable use.
Versatile waveform generation including sine, square, triangle, pulse, and ramp. High precision with ±10 ppm time base accuracy. Adjustable amplitude output and duty cycle for flexible testing needs. CMOS and TTL compatible outputs for digital and analog circuit testing.
Compact dimensions and lightweight design for ease of use and transport. Standard 50 Ω output impedance for consistent signal characteristics.
Designed for industrial quality control, research laboratories, educational institutions, and electronic repair facilities, the BK4011A Function Generator meets the demanding requirements of modern electronics testing. Its durable construction and broad functionality make it a reliable choice for precision signal generation applications.
Explore more testing instruments and precision equipment on EnvMart to complement your measurement and diagnostic capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BK4011A function generator has a frequency range from 0.5 Hz to 5 MHz.
It can generate sine, square, triangle, pulse, and ramp waveforms.
The output amplitude can reach up to 20 V peak-to-peak open circuit and 10 V peak-to-peak into a 50 Ω load.
The output impedance is 50 Ω, while the input impedance is 10 kΩ.
The time base accuracy of the BK4011A is ±10 ppm.
This model measures 298 mm in length, 264 mm in width, and 114 mm in height, weighing 1.8 kg.
The TTL output level is 2.4 V, and the CMOS output levels range from 4 to 14 V peak-to-peak.
Yes, it supports variable duty cycle and DC offset adjustments.
It is suitable for testing electronic circuits, signal processing, and communications equipment.
The BK4011A features both coarse and fine frequency tuning with a 4-digit LED display for easy adjustments.
The maximum attenuation provided by the BK4011A is -20 dB.
The BK4011A complies with UL standards.
