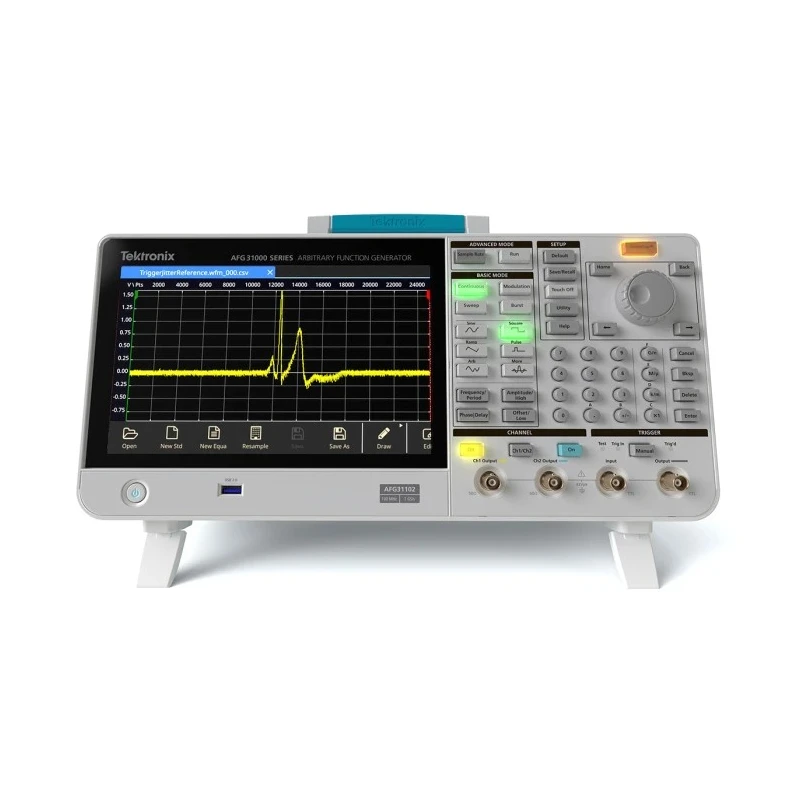

Tektronix Arbitrary Function Waveform Generator 50 MHz Max, 1 Hz Min USB Interface Capacitive Touch Display AFG31051

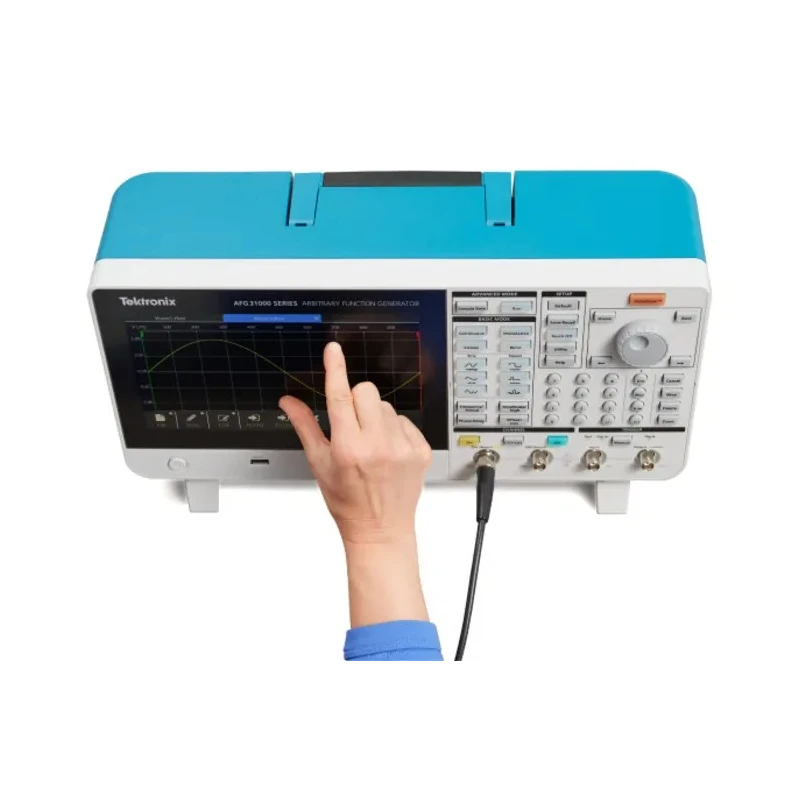

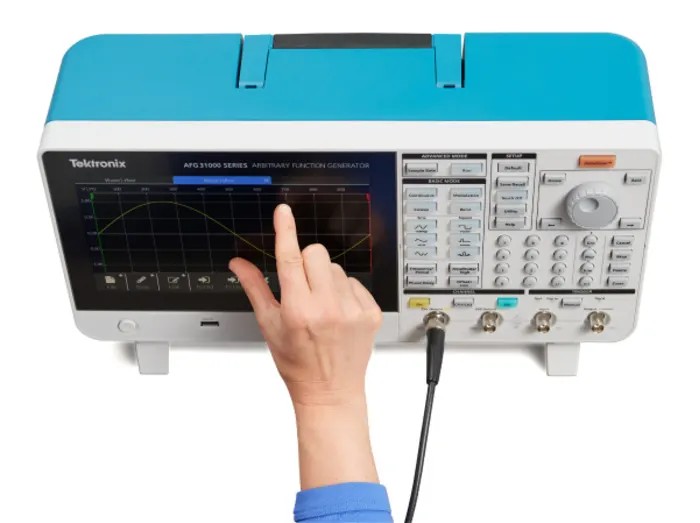

Tektronix AFG31051 is a high-performance arbitrary function waveform generator designed for precise signal generation and testing in industrial, laboratory, and electronic measurement applications. The instrument supports a maximum frequency of 50 MHz and a minimum of 1 Hz, providing flexibility for various signal requirements. It features a large 9-inch capacitive touch display that operates like a smart device, enabling users to pinch, zoom, and scroll for easy navigation of the instrument's settings.

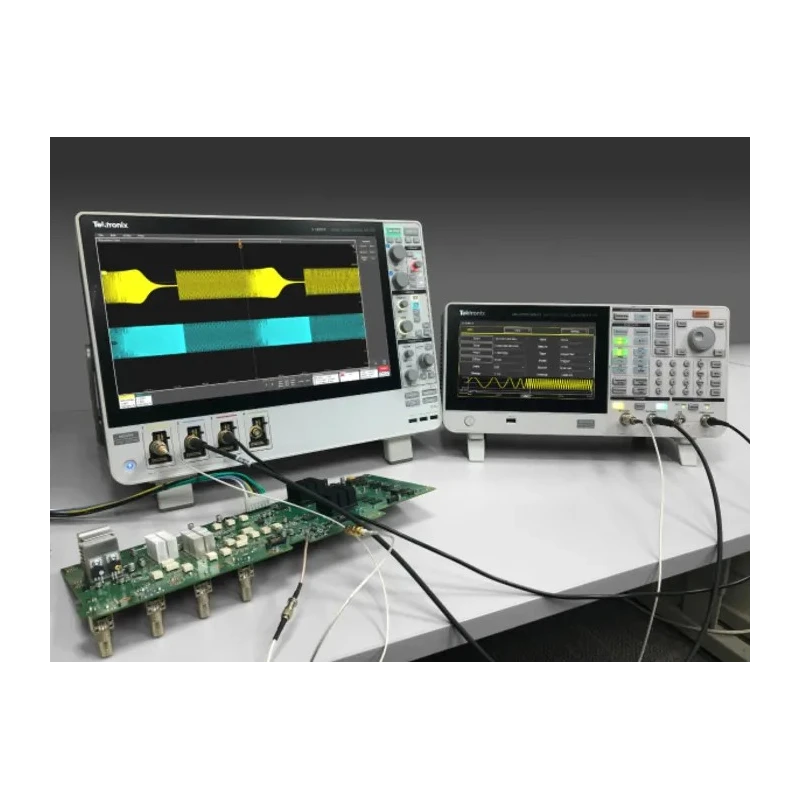

The USB interface offers seamless connectivity for data transfer and control. Its InstaView™ technology allows real-time visualization of the waveform directly at the device under test (DUT) without the need for an oscilloscope, reducing uncertainty caused by impedance mismatches.

With a 14-bit vertical resolution and 120kpts waveform memory per channel, this generator produces high-fidelity output with minimal distortion. The device supports a wide range of waveforms including sine, square, ramp, pulse, and noise, as well as linear sweep capability and trigger inputs for sophisticated testing sequences.

Designed to operate in environments ranging from 0°C to 50°C, it is compact and easy to integrate into existing test setups with physical dimensions of 412.8 mm in length, 143.3 mm in width, and 191.8 mm in height, weighing 4.7 kg. RoHS compliant, it meets modern regulatory standards.

9-inch capacitive touch screen interface enabling intuitive controls. InstaView™ technology for real-time waveform observation at the DUT. Supports up to 50 MHz frequency with 1 Hz minimum for versatile signal generation.

Built-in waveforms include sine, square, ramp, pulse, and noise for various test scenarios. USB connectivity enhances ease of control and integration. Linear sweep and trigger functionality for complex testing sequences.

Waveform memory of 120kpts per channel ensures detailed signal representation. Compact size and moderate weight enable portability within labs or production floors. Designed for use in industrial, laboratory, research, and educational environments.

This Tektronix AFG31051 arbitrary Function Generator is ideal for engineers and technicians requiring precise, flexible waveform generation across a spectrum of testing and measurement applications. Explore the full range of Tektronix waveform generators and other precision instrumentation at EnvMart for your industrial and laboratory needs.
