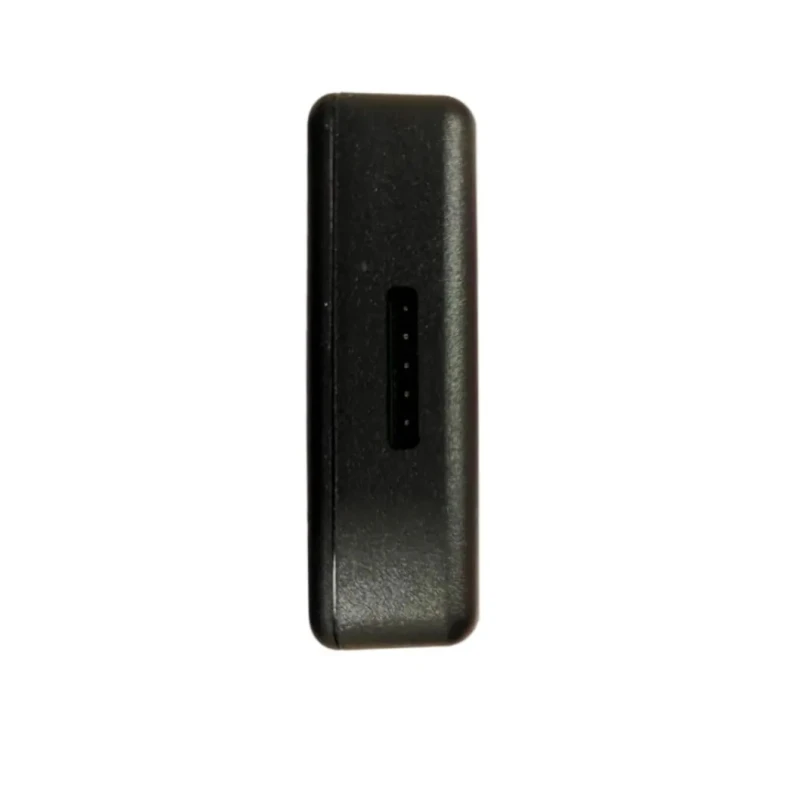

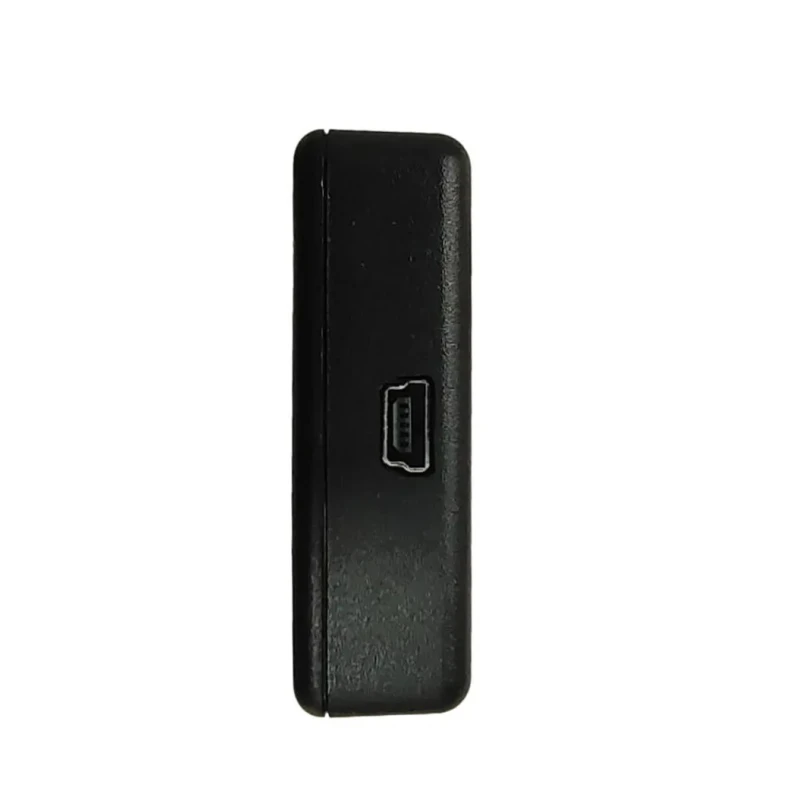

IKALOGIC Logic Analyzer & Function Generator 10 kHz Min Frequency, 200 MHz Max Sinewave, 4 Channels, USB Interface SQ200
Specifications
| Country of Origin | France |
|---|---|
| Brand | IKALOGIC |
| Height | 15mm |
| Length | 50mm |
| Model | SQ200 |
| Gross Weight | 80g |
| Width | 50mm |
| Output Impedance | 270Ω |
| Maximum Operating Temperature | 40°C |
| Input Impedance | 100kΩ |
| Minimum Operating Temperature | -10°C |
| Interfaces | USB connection bandwidth |
| Number Of Channels | 4 |
| Time Base Accuracy | 50 ppm |
| Interface Type | USB |
| Standards/Approvals | IEC/EN |
| Maximum Frequency Range Sinewave | 200MHz |
| Minimum Frequency Range Sinewave | 10kHz |
| Maximum Frequency Range Square Pulse/Arbitrary Waveform | 50MHz |
| Minimum Frequency Range Square Pulse/Arbitrary Waveform | 10kHz |
| TTL Output Level | 5V |
| CMOS Output Level | 1.6 to 5 V |
Key Features
- Supports frequency sweep with FM modulation for versatile signal generation.
- Equipped with 4 channels for simultaneous signal analysis.
- Interfaces via USB for easy connection to Windows, macOS, and Linux systems.
- Compact dimensions of 50mm length, 50mm width, and 15mm height facilitate portability.
- Operates within temperature range from -10°C to 40°C ensuring reliable performance.
- Has TTL output level at 5V and CMOS output levels between 1.6 to 5 V.
- Includes internal linear and logarithmic sweep functions for detailed signal testing.
- Input impedance is 100kΩ, and output impedance is 270Ω to match diverse circuits.
Product Description
IKALOGIC SQ200 Logic Analyzer & Function Generator combines high performance and portability for precision testing and signal analysis in industrial and laboratory environments. This device covers a broad frequency range from 10 kHz minimum to 200 MHz maximum sinewave frequency, making it suitable for diverse signal generation and measurement applications.
With 4 separate channels, it allows simultaneous logic analysis and function generation, equipped with a USB interface compatible with Windows, macOS, and Linux platforms for versatile usage. The compact size with dimensions 50mm x 50mm x 15mm and light weight of 80 grams makes it a convenient tool for fieldwork and embedded systems development.
The SQ200 supports variable sweep function and FM modulation, enhancing its flexibility to generate complex test signals. Output impedance of 270Ω and input impedance of 100kΩ ensure compatibility with various electronic circuits. The TTL output operates at 5V and CMOS output ranges from 1.6 to 5 V, supporting diverse logic levels.
Designed for reliable operation in environments with temperatures ranging from -10°C to 40°C, it complies with IEC/EN quality standards. The integrated internal linear and logarithmic sweep features provide advanced testing capabilities for electronics development, firmware debugging, and serial protocol analysis including I2C, SPI, UART, and 1-Wire.
Supports frequency sweep with FM modulation for versatile signal generation. Equipped with 4 channels for simultaneous signal analysis. Interfaces via USB for easy connection to Windows, macOS, and Linux systems. Compact dimensions of 50mm length, 50mm width, and 15mm height facilitate portability.
Operates within temperature range from -10°C to 40°C ensuring reliable performance. Has TTL output level at 5V and CMOS output levels between 1.6 to 5 V. Includes internal linear and logarithmic sweep functions for detailed signal testing.
Input impedance is 100kΩ, and output impedance is 270Ω to match diverse circuits. Compliant with IEC/EN standards assuring quality and safety. Lightweight design with gross weight of 80 grams enhances usability.
This multifunctional instrument is ideal for embedded systems development, firmware debugging, serial communication analysis, and reverse engineering, supporting industrial, laboratory, educational, and manufacturing use cases.
Explore more measuring and testing instruments and Function Generators on EnvMart for comprehensive solutions in your technical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SQ200 operates with a minimum frequency of 10 kHz and a maximum frequency of 200 MHz for sinewave signals.
This model is equipped with 4 channels, allowing for simultaneous signal analysis and function generation.
It provides a TTL output level of 5V and CMOS output levels ranging from 1.6 to 5 V.
The device has compact dimensions of 50mm in length, 50mm in width, and 15mm in height, with a gross weight of 80 grams.
The input impedance is 100kΩ, while the output impedance is 270Ω, suitable for various electronic circuits.
It operates reliably within a temperature range of -10°C to 40°C.
This model features a USB interface, compatible with Windows, macOS, and Linux systems.
Yes, it includes internal linear and logarithmic sweep functions for detailed signal testing.
It complies with IEC/EN standards, ensuring quality and safety in its operation.
The time base accuracy of this unit is 50 ppm.
It is ideal for embedded systems development, firmware debugging, serial communication analysis, and reverse engineering.
This model can generate sinewave signals up to 200 MHz and square pulse/arbitrary waveforms up to 50 MHz.
