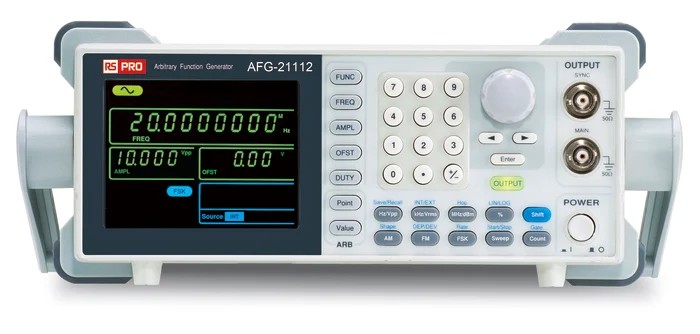

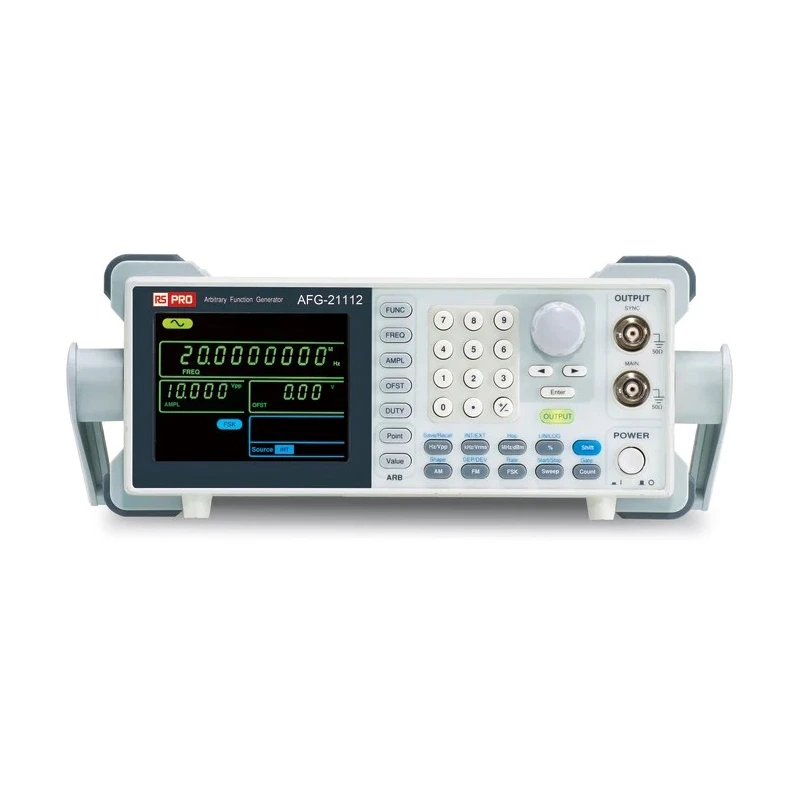

RS PRO Function Generator & Counter 0.1 Hz Min, 12 MHz Max, FM Modulation, Variable Sweep AFG21112
Specifications
| Country of Origin | China |
|---|---|
| Display | screen |
| Brand | RS PRO |
| Height | 107mm |
| Length | 266mm |
| Model | AFG21112 |
| Gross Weight | 2.5kg |
| Width | 293mm |
| Output Impedance | 300Ω |
| Sampling rate | , 10-bit vertical resolution and 4k point memory for Arbitrary Waveform |
| Maximum Operating Temperature | 40°C |
| Input Impedance | 1kΩ |
| Minimum Operating Temperature | 0°C |
| Plug Type | UK |
| Interfaces | USB device interface for remote control and waveform editing for additional functionality |
| Time Base Accuracy | ±20 ppm |
| Interface Type | USB |
| Standards/Approvals | CE |
| Maximum Frequency Range Sinewave | 12MHz |
| Minimum Frequency Range Sinewave | 0.1Hz |
| Maximum Frequency Range Square Pulse/Arbitrary Waveform | 12MHz |
| Minimum Frequency Range Square Pulse/Arbitrary Waveform | 0.1Hz |
| Maximum Frequency Range Triangle/Saw | 1MHz |
| Output Amplitude | 2 to 20 mV Pk-Pk |
| AFG-21000 range is supplied with | Power cord, test lead, instruction manual |
| AFG-21100 range is supplied with | Power cord, test lead x2, instruction manual |
Key Features
- Features a 3.5-inch LCD screen for clear viewing of waveform parameters.
- Outputs sine, square, ramp, noise, and arbitrary waveforms up to 12 MHz frequency.
- Offers AM/FM/FSK modulation, sweep functions, and digital frequency counter.
- Provides USB interface for remote control and waveform editing.
- Adjustable duty cycle from 1% to 99% for square waveforms.
- Includes 20MSa/s sampling rate and 4k point memory for arbitrary waveforms.
- Operates reliably within 0°C to 40°C temperature range.
- Output amplitude ranges from 2 to 20 mV peak-to-peak.
Product Description
RS PRO AFG21112 Function Generator & Counter is a professional-grade DDS (Direct Digital Synthesis) signal generator designed for industrial, laboratory, and electronic testing use. It provides accurate and reliable signal output with a clear 3.5-inch LCD display that shows waveform parameters including amplitude and DC offset simultaneously. This device supports sine, square, ramp, noise, and arbitrary waveforms with frequency capabilities from 0.1 Hz up to 12 MHz, making it suitable for a wide range of applications.
The instrument incorporates AM, FM, and FSK modulation options along with internal and external amplitude modulation. It features a USB device interface for convenient remote control and waveform editing, facilitating integration into automated test setups. The adjustable duty cycle and 20MSa/s sampling rate enhance waveform fidelity and flexibility.
Compact and robust, this unit measures 293mm wide, 266mm long, and 107mm high, weighing 2.5 kg. It operates effectively in ambient temperatures from 0°C to 40°C, ensuring dependable performance in various industrial and laboratory environments. The product is CE certified and manufactured with quality standards in China.
Applications include signal generation for circuit testing, calibration, education, research, and development. Ideal for engineers, technicians, and educators requiring versatile and precise waveform generation with modulation capabilities and digital frequency measurement.
Features a 3.5-inch LCD screen for clear waveform parameter visualization. Supports sine, square, ramp, noise, and arbitrary waveform outputs up to 12 MHz. Offers sweep, AM, FM, and FSK modulation for versatile signal generation.
Includes digital frequency counter functionality. USB interface enables remote control and waveform editing. Adjustable duty cycle from 1% to 99% for comprehensive testing needs. Compact size and moderate weight for ease of use and transport.
Operating temperature range of 0°C to 40°C ensures stable performance. CE certification guarantees compliance with safety and quality standards. Suitable for use in industrial, laboratory, educational, and research applications.
Explore more Function Generators and counters at EnvMart for reliable electronic test and measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum frequency output of this model is 12 MHz for sine, square, and arbitrary waveforms, and 1 MHz for triangle and sawtooth waveforms.
It can generate sine, square, ramp, noise, and arbitrary waveforms, providing versatility for various applications.
The output amplitude ranges from 2 to 20 mV peak-to-peak, allowing for adjustable signal strength.
This model features a sampling rate of 20 MSa/s with a 10-bit vertical resolution and 4k point memory for arbitrary waveforms.
It supports AM, FM, and FSK modulation, enhancing its functionality for various signal generation needs.
The dimensions are 293 mm wide, 266 mm long, and 107 mm high, with a weight of 2.5 kg, making it compact and portable.
It operates effectively within a temperature range of 0°C to 40°C, ensuring reliable performance in various environments.
Yes, it includes a USB device interface for remote control and waveform editing, facilitating integration into automated test setups.
The input impedance for this function generator is 1 kΩ, which is standard for most applications.
The time base accuracy is ±20 ppm, providing reliable timing for signal generation.
It is supplied with a power cord and a test lead, which are essential for operation and testing.
This model is CE certified, ensuring compliance with safety and quality standards.
