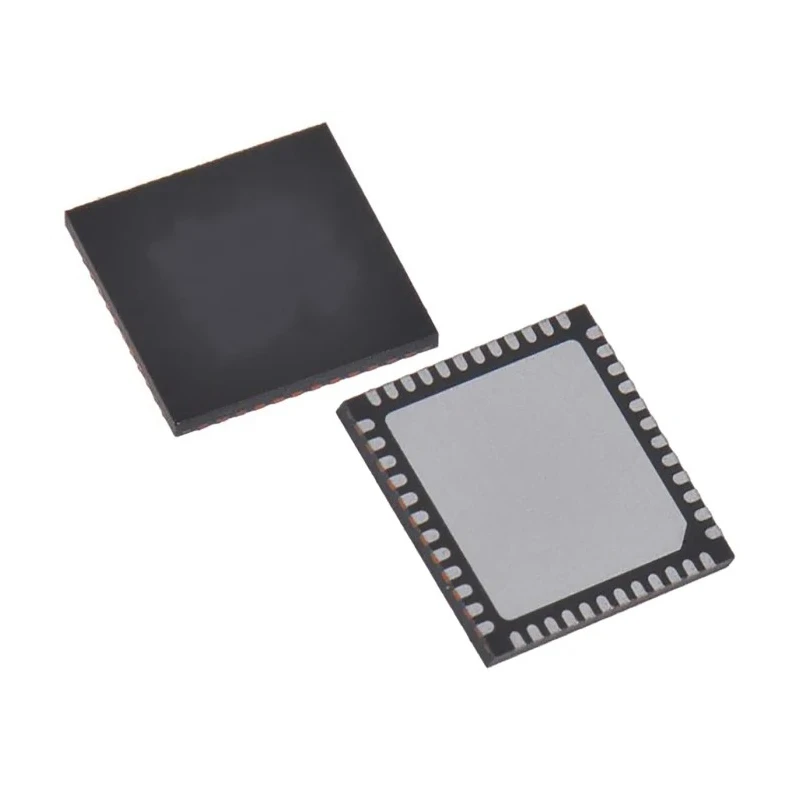

STMicroelectronics STM32F072CBU7 32 bit ARM Cortex M0 Microcontroller 48 MHz 128kB FLASH 48-Pin UFQFPN

STMicroelectronics STM32F072CBU7 is a 32-bit ARM Cortex M0 microcontroller running at a maximum clock frequency of 48 MHz. It integrates 128kB of embedded Flash memory along with 16kB of SRAM, housed in a compact 48-pin UFQFPN surface-mount package. This microcontroller is engineered to operate efficiently within industrial temperature conditions ranging from -40°C to 105°C and supports supply voltages between 2V and 3.6V, with a maximum power dissipation of 625 mW.

Equipped with rich peripherals, the STM32F072CBU7 offers versatile timers including four 16-bit timers and one 32-bit timer, 13 channels of 12-bit ADC, one 12-bit DAC with two channels, and two analogue comparators. Communication interfaces include two I2C buses, two SPI/I2S ports, one HDMI CEC, four USARTs, one USB full-speed device (crystal-less), and one CAN interface, making it highly suitable for complex embedded systems.

The microcontroller implements a RISC instruction set architecture based on the ARM Cortex M0 core, ensuring a balance of performance and low power consumption. It is ideal for a wide range of industrial and commercial applications including application control, user interfaces, handheld equipment, A/V receivers, digital TV, PC peripherals, gaming, GPS platforms, industrial automation, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVAC systems.

Equipped with ARM Cortex M0 32-bit RISC core operating at up to 48 MHz. Embedded 128kB Flash memory and 16kB SRAM for versatile embedded purposes. Wide array of communication interfaces including USB, CAN, USART, SPI, I2C, and HDMI CEC.

Rich set of analog peripherals comprising 13-channel 12-bit ADC and 12-bit DAC with two channels. Designed with industrial temperature range compliance and low power consumption. Compact 48-pin UFQFPN surface-mount package for efficient board integration.

Suitable for a diverse range of industrial, consumer, and embedded applications. Explore STMicroelectronics Microcontrollers and other advanced semiconductor solutions on EnvMart for your embedded system design requirements.
