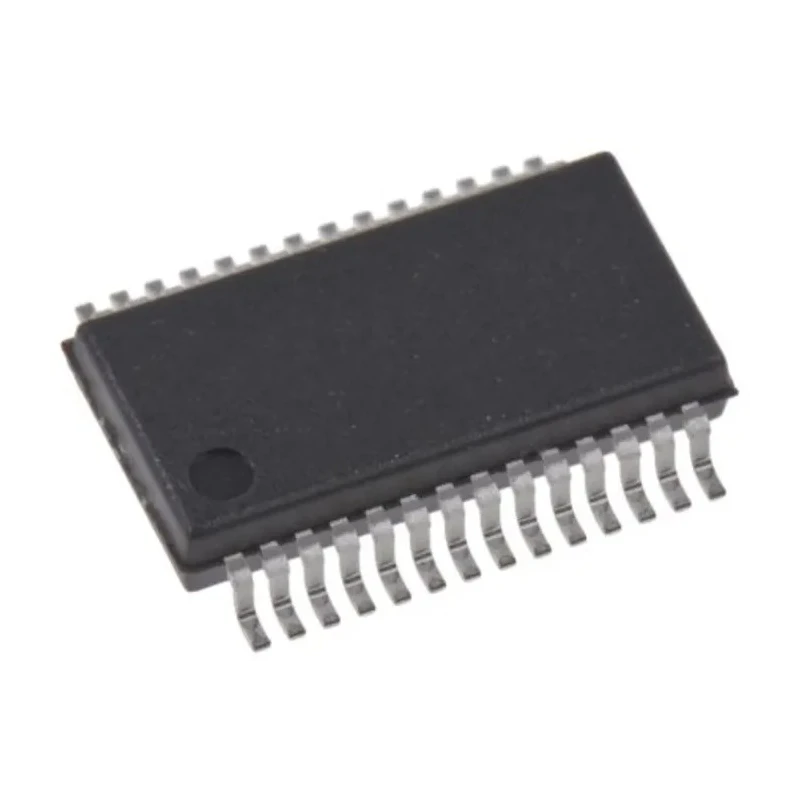

Infineon 8-bit PSoC M8C Microcontroller 24 MHz 8kB Flash 28-Pin SSOP CY8C21534-24PVXIT

Infineon CY8C21534-24PVXIT is an 8-bit PSoC microcontroller featuring the M8C core architecture operating at up to 24 MHz. It provides 8 kB of flash program memory and 512 bits of SRAM. Housed in a 28-pin SSOP surface mount package, this device is designed for embedded applications requiring efficient processing and flexible peripheral integration.

This microcontroller operates at voltages from 3.0 V up to 5.25 V, suitable for industrial and automotive environments with temperature ranges from -40°C to +85°C. It integrates advanced analog and digital peripherals, including up to 28 channels of 10-bit ADCs, one 8-bit DAC, and two analog comparators, enabling precise sensor interfacing.

The device features 24 programmable I/O pins configurable with various drive modes: pull-up, pull-down, strong drive, or open drain, with 25 mA sink and 10 mA source capabilities. Timing peripherals include two 8- to 32-bit timers and pulse width modulators (PWMs). Communication interfaces support UART and SPI protocols with full- or half-duplex modes.

Designed with flexible memory management, the microcontroller supports partial flash updates, EEPROM emulation in flash memory, and includes on-chip watchdog and sleep timers for low power applications. It also has cyclic redundancy check (CRC) and pseudo-random sequence (PRS) modules for error detection and signal generation.

Additional features include an internal ±5% 24 MHz oscillator, as well as an internal low-speed oscillator for watchdog and sleep operations, with optional external oscillator support up to 24 MHz. These capabilities make this microcontroller ideal for industrial control, automotive systems, consumer electronics, and other embedded control applications.

Features M8C core Harvard architecture for efficient processing. Operating voltage range from 2.7 V to 5.25 V for versatile application use. Includes 512-bit SRAM and 8 kB flash memory for program storage. Advanced analog and digital peripherals integrated on-chip.

Wide operating temperature range suitable for automotive environments. Supports UART and SPI communication protocols. In-system serial programming and EEPROM emulation enhance flexibility. Compact 28-pin SSOP package dimensions: 10.4 x 5.6 x 1.85 mm.

Complies with RoHS standards for environmental safety.

This microcontroller aligns with industrial, automotive, and embedded system design requirements, offering a robust, low-power, and highly programmable solution. Explore further Infineon Microcontrollers and semiconductor products at EnvMart for comprehensive application support.
