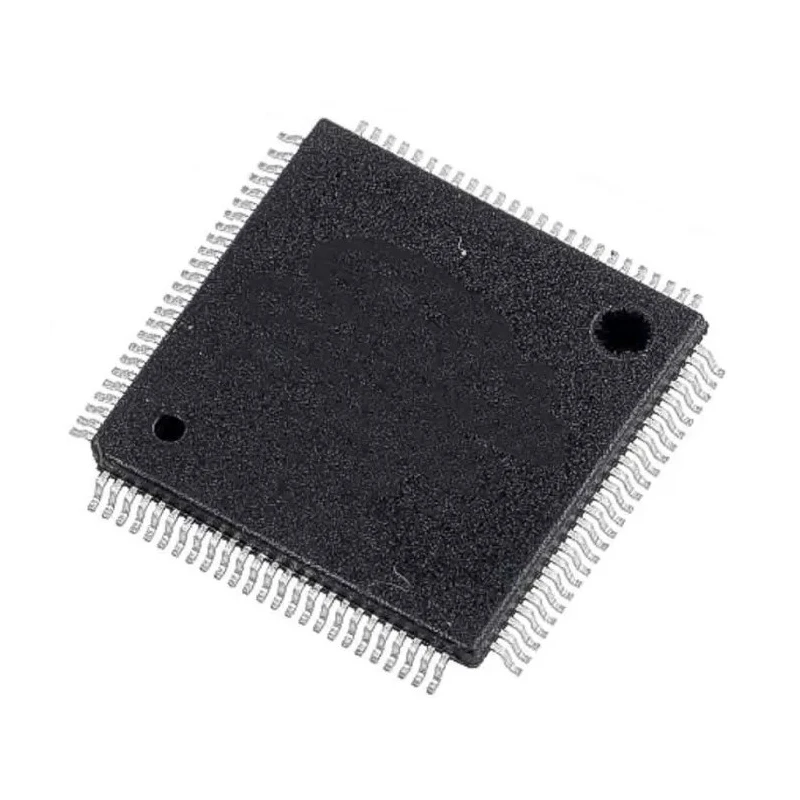

STMicroelectronics 32 bit ARM Cortex M4 Microcontroller 168 MHz 512kB FLASH 100-Pin LQFP STM32F417VET6

STMicroelectronics STM32F417VET6 is a 32-bit ARM Cortex-M4 microcontroller designed for high-performance embedded applications. It is built on an ARM Cortex-M4 core operating at a high speed of 168 MHz, enabling efficient execution of complex algorithms and signal processing tasks. Featuring 512kB of flash memory and 192kB of SRAM, this microcontroller offers substantial on-chip storage and fast data access for demanding applications.

The device includes a floating point unit (FPU) supporting single precision calculations, as well as a full set of DSP instructions and a memory protection unit to enhance application security. The 100-Pin LQFP package ensures a compact footprint compatible with surface mount technology, measuring 14.2 mm in both length and width with a low profile height of 1.45 mm.

With 140 programmable I/O pins, three 12-bit ADCs, and two 12-bit DACs, the STM32F417VET6 provides extensive analog and digital interfacing options. It features two general-purpose 16-bit timers and two general-purpose 32-bit timers including PWM capability for motor control and other precision timing purposes. The operating voltage range from 1.8V to 3.6V and the robust temperature tolerance from -40°C to 85°C make it suitable for diverse industrial, automotive, and embedded applications.

Additional peripherals include a low-power real-time clock, a true random number generator for security, and a cryptographic acceleration unit, allowing integration into secure and mission-critical systems. This microcontroller’s architecture complies with RISC instruction set standards, promoting efficient performance and low power consumption.

The STM32F417VET6 microcontroller is ideal for use in applications such as industrial automation, motor control, consumer electronics, automotive modules, and embedded computing platforms requiring reliable, high-speed processing and versatile connectivity.

High-performance ARM Cortex-M4 32-bit RISC core operating at 168 MHz. 512kB embedded FLASH memory and 192kB SRAM for demanding applications. Floating point unit and DSP instructions accelerate complex calculations. Rich peripheral set including ADCs, DACs, timers, and programmable I/Os.

Compact 100-Pin LQFP surface mount package with 14.2 mm x 14.2 mm dimensions. Wide operating voltage from 1.8V to 3.6V with low power consumption. Operating temperature range from -40°C to 85°C for harsh environments. Security features include memory protection and cryptographic acceleration.

Suitable for industrial, automotive, and embedded system use cases. Enhanced motor control support and real-time clock integration. Explore our Microcontroller category on EnvMart for more high-quality industrial-grade semiconductor components and Microcontrollers.
