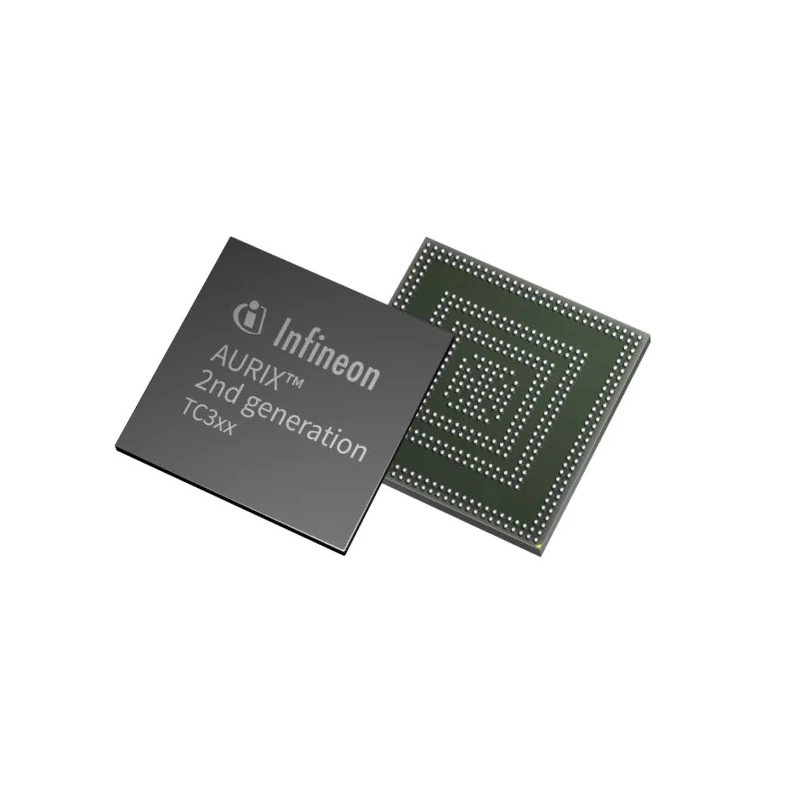

Infineon 32 bit TriCore AURIX Microcontroller, 300 MHz, 12.288MB FLASH, 1.5MB RAM, 292-Pin LFBGA TC3E7QX192F300SAAKXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon 32 bit TriCore AURIX Microcontroller, 300 MHz, 12.288MB FLASH, 1.5MB RAM, 292-Pin LFBGA TC3E7QX192F300SAAKXUMA1

Name: Infineon 32 bit TriCore AURIX Microcontroller, 300 MHz, 12.288MB FLASH, 1.5MB RAM, 292-Pin LFBGA TC3E7QX192F300SAAKXUMA1
Brand: Infineon
SKU: 423183
Price: 68.46 USD
Availability: InStock



Category Microcontroller Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Model	TC3E7QX192F300SAAKXUMA1
Mount Type	Surface Mount
Series	AURIX
Package Type	LFBGA
Interfaces	Ethernet and up to 20 CAN FD
Ram size	1.5MB
Standards/Approvals	AUTOSAR 4.2, RoHS, ISO 26262 ASIL-D
Pin Count	292
Device Core	TriCore
Program Memory Size	12.288MB
Maximum Clock Frequency	300MHz
Instruction Set Architecture	TriCore
Program Memory Type	FLASH

Key Features

Features 4 TriCore cores operating at 300 MHz with 2 additional checker cores delivering 2700 DMIPS.
Includes up to 12 MB Flash memory and 1.5 MB SRAM for enhanced performance.
Offers extensive connectivity options including 1 Gbit Ethernet, up to 20 CAN FD channels, 4 FlexRay channels, 24 LINs, and 6 QSPI interfaces.
Complies with ISO 26262 ASIL-D safety standard for automotive applications.
Equipped with eVita full HSM for advanced security features.
Supports AUTOSAR 4.2 architecture.
292-pin LFBGA surface mount package for compact design integration.
Operates at high junction temperature up to 165°C for reliability in harsh environments.

Product Description

Infineon TC3E7QX192F300SAAKXUMA1 is a 32 bit TriCore microcontroller from the AURIX TC3Ex family, delivering high performance at a maximum clock frequency of 300 MHz. It integrates 4 TriCore processing cores and 2 checker cores, collectively providing 2700 DMIPS, suitable for complex automotive and industrial control systems.

Equipped with 12.288 MB of FLASH program memory and 1.5 MB of SRAM, the device supports advanced computation and storage needs. The 292-pin LFBGA package allows for surface mount installation in compact spaces.

Connectivity is a major strength, featuring 1 Gbit Ethernet, up to 20 CAN FD channels, 4 FlexRay channels, 24 LIN bus interfaces, and 6 QSPI high-speed communication channels, enabling comprehensive networking for domain controllers and connected gateway ECUs.

Security is assured with the eVita full Hardware Security Module (HSM), compliant with the latest standards, protecting sensitive operations and data. It supports the AUTOSAR 4.2 platform for automotive software architectures and meets rigorous ISO 26262 ASIL-D safety requirements.

The device operates reliably in harsh industrial environments with a junction temperature tolerance up to 165°C and standby mode controller for energy efficiency. Features 4 TriCore cores running at 300 MHz and 2 additional checker cores delivering 2700 DMIPS.

Up to 12 MB flash memory and 1.5 MB SRAM for enhanced storage and processing. Connectivity with 1 Gbit Ethernet and multiple CAN FD, FlexRay, LIN, and QSPI interfaces. ISO 26262 ASIL-D safety certified and AUTOSAR 4.2 compliant.

eVita full HSM for secure hardware implementations. 292-pin LFBGA surface mount package with high junction temperature tolerance.

This microcontroller is ideally suited for automotive domain controllers, industrial automation, and connected gateway applications, delivering scalability and security for modern electronic designs.
