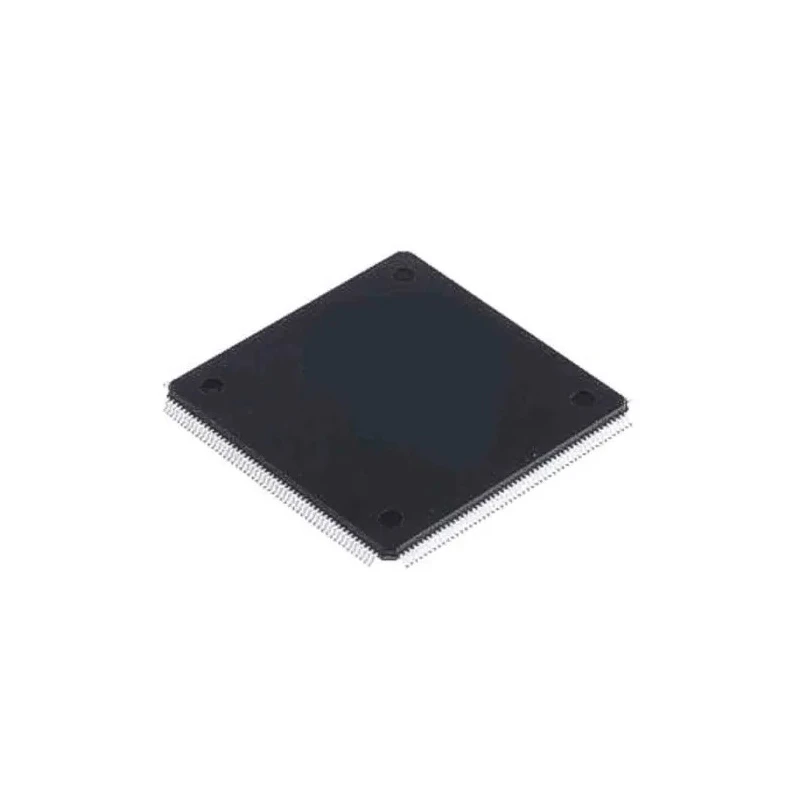

STMicroelectronics 32 bit ARM Cortex M7 Microcontroller, 216 MHz, 2.048MB FLASH, 512kB RAM, 176-Pin LQFP STM32F777BIT6

STMicroelectronics STM32F777BIT6 is a high-performance 32-bit microcontroller based on the Arm Cortex-M7 core operating at 216 MHz. This device features a floating point unit supporting both single and double precision data processing and a full set of DSP instructions, ideal for advanced embedded applications requiring high processing power and real-time performance.

The MCU integrates 2.048MB of high-speed Flash memory along with 512kB of SRAM, including 128kB of data TCM RAM and 16kB instruction TCM RAM for critical real-time data handling. It supports 168 programmable input/output pins, two 12-bit DACs, and three 12-bit ADCs, enabling precise analog interfacing for sensor and actuator control in industrial, automotive, and consumer electronics applications.

Operating temperature ranges from -40°C to 85°C and power supply ranges from 1.7V to 3.6V, ensuring versatility in harsh environments. The device includes advanced peripherals such as USB OTG (FS and HS), SDMMC interfaces, Quad-SPI Flash memory interface, camera interface for CMOS sensors, and a cryptographic acceleration cell for enhanced data security.

Additional features include two general-purpose 16-bit timers, two 32-bit timers, a true random number generator, and an extensive range of communication interfaces. The device conforms to RISC instruction set architecture and is housed in a 176-pin LQFP surface mount package measuring 24.1mm by 24.1mm with a height of 1.45mm.

This microcontroller is suitable for industrial automation, motor control, audio processing, IoT devices, and automotive embedded systems needing robust computational capabilities and rich peripheral integration.

Features high-performance Arm Cortex-M7 core with floating point unit supporting DSP instructions. Includes 2 x 12-bit DACs and 24 x 12-bit ADCs for versatile analog interfacing. Provides 168 programmable I/Os and multiple timers including PWM timers for motor control.

Operates over a wide temperature range from -40°C to +85°C and supply voltage from 1.7V to 3.6V. Integrated Flash memory of 2.048MB with 512kB SRAM including instruction and data TCM RAM for critical real-time tasks. Equipped with cryptographic acceleration cell and true random number generator enhancing security features.

Supports advanced communication interfaces including USB OTG, SDMMC, Quad-SPI, and camera interface. Available in a compact 176-pin LQFP surface mount package with dimensions 24.1mm x 24.1mm x 1.45mm. Explore the full range of STMicroelectronics Microcontrollers at EnvMart for embedded system design and industrial control applications.
