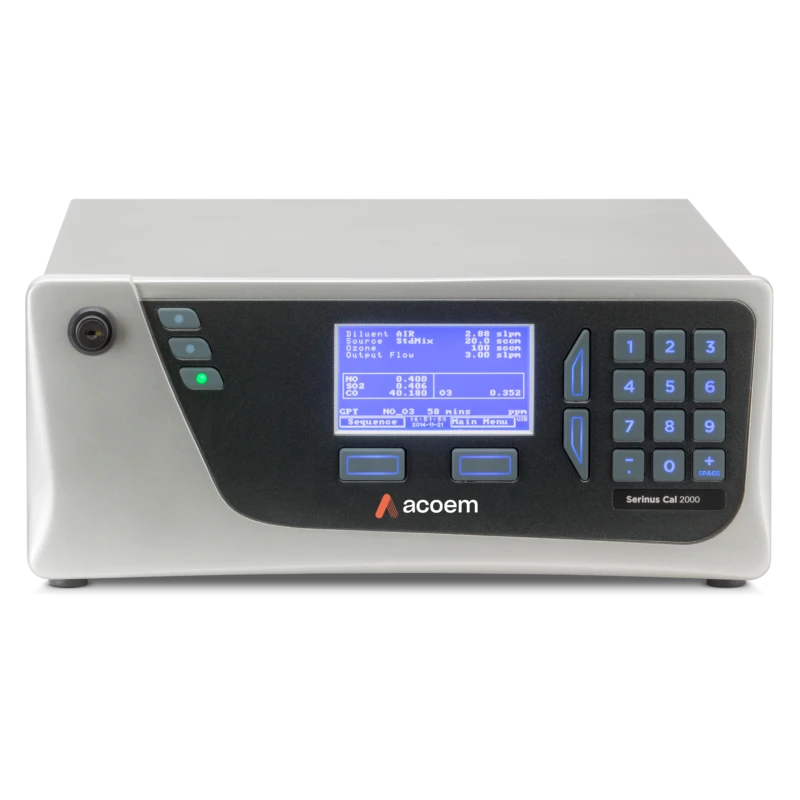

Serinus Cal 2000
Specifications
| Repeatability | Less Than 1 % short term (24 hours) 5 % long term at constant temperature & humidity |
|---|---|
| Power Consumption | 165 VA maximum (typical at start-up) 95 VA after warm-up |
| Linearity | Within 0.15 % of full scale |
| Pressure | Maximum altitude 3000 m above sea level |
| Flow Rate | Variable dependent on Dilution Mass Flow Controller installed |
| Operating Voltage (V) | 100 - 240 V VAC 50 / 60 Hz (autoranging) |
| Response time | Less Than 5 seconds |
| Zero drift | Less Than 0.6 % per year |
| Weight | 20.5 kg |
| Dilution gas inputs | 1 standard 100 - 200 kPa (g) (2 optional) |
| Source gas inputs | 4 standard 100 - 200 kPa (g) (8 optional) |
| Dilution mass flow controller | 10 SLPM 0 Deg 1 ATM (std) 1 SLPM 2 SLPM 5 SLPM or 20 SLPM (optional) 2nd MFC (optional) |
| Source mass flow controller | 50 SCCM 0 Deg 1 ATM (std) 10 SCCM 20 SCCM 100 SCCM 500 SCCM or 1 SLPM 2 SLPM (optional) 2nd MFC (optional) |
| Flow accuracy (constant temp) | Within 1 % of full scale |
| Flow repeatability | Within 0.15 % of full scale |
| Operating gas pressure | 100 - 200 kPa |
| Output manifold | 4 output ports standard |
| Dilution ratio | Variable 10 1 to 2000 1 (std configuration) |
| Case dimensions rack length | 597 mm (23.5 inch) (front to rear) |
| Total length (with latch release) | 638 mm (25.1 inch) |
| Chassis width | 418 mm (16.5 inch) |
| Front panel width | 429 mm (16.9 inch) |
| Chassis height | 163 mm / uses 4RU (6.4 inch) |
| Front panel height | 175 mm (6.9 inch) |
| Operating conditions ambient temperature range | 0 - 45 C (32 - 104 F) 20 - 35 C for optimum performance |
| Output concentration | 3 ppb to 5000 ppb |
Key Features
- All the calibration ability and ease of use found in the Serinus Cal 1000
- Internal ozone generator produces 3 ppm to 5 ppm of ozone
Product Description
With all the features of its Serinus Cal 1000 stablemate, the Serinus Cal 2000 adds features essential for the calibration of your NOx and O3 analysis equipment.An internal ozone generator enables regular ozone checks and gas phase titrations (GPT).
- Ability to premix ozone and source gas before dilution to perform gas phase titrations (GPT)
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output concentration of this model ranges from 3 ppb to 5000 ppb.
The maximum power consumption is 165 VA at start-up and typically 95 VA after warm-up.
It operates on a voltage range of 100 to 240 V VAC at 50/60 Hz, with autoranging capability.
The response time is less than 5 seconds.
It weighs 20.5 kg.
The chassis dimensions are 597 mm in length, 418 mm in width, and 163 mm in height.
The flow accuracy is within 1% of full scale.
It has 4 standard source gas inputs and 1 standard dilution gas input, with options for additional inputs.
The ambient temperature range for operation is from 0 to 45 °C, with optimum performance between 20 to 35 °C.
The dilution ratio is variable from 10:1 to 2000:1 in the standard configuration.
