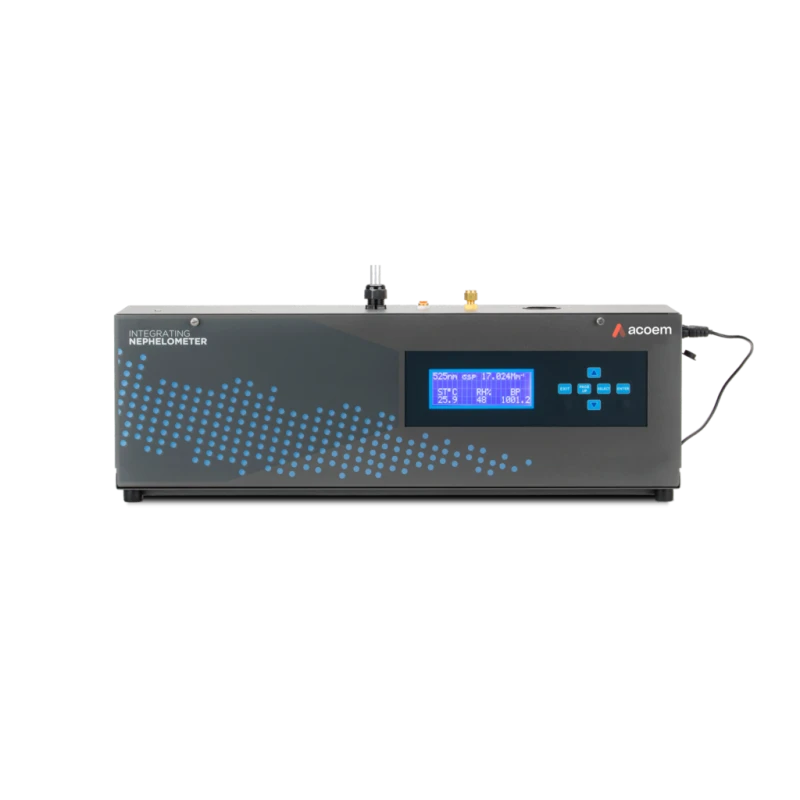

Aurora 2000 PM2.5 Correlating Nephelometer
Specifications
| Power Consumption | 13 W nominal 45 W with heater active |
|---|---|
| Ranges | 0 - 2000 g/m3 & 0 - 20000 Mm-1 |
| Operating Temperature | - 20 to 45 Degree C |
| Flow Rate | 5 l/min with default blower. Higher flow can be obtained using the external pump option (e.g. in case of common inlet) |
| Dimensions | 170 x 700 x 215 mm |
| Operating Voltage (V) | 12 VDC (incl 110 - 240 VAC 50/60 Hz power supply converter) |
| Light Source | Stable LED light source (US patent 7671988) |
| Lower detectable limit | 3 g/m3 (Less Than 0.3 Mm-1) (60 second averaged data) |
| Altitude | 2000 m. |
| Calibration | Span gas available for CO2 SF6 FM-200 R-12 R-22 R-134 or a user defined gas |
| Wavelength | 450 nm (blue) 525 nm (green) or 635 nm (red) |
| Measured parameters | g/m3 & sScat |
| Secondary measurements | Sample air temperature relative humidity (RH) barometric pressure & enclosure temperature |
| Operating RH | 10 to 95 % |
| Optics | Reference light source measurement |
| Weight | 11.2 kg |
Key Features
- Enables real-time PM2.5 concentration measurement in conjunction with a Spirant™ BAM
- 12V DC (110-240 VAC, 50/60 Hz power converter included) 13 watts nominal, 45 watts max
Product Description
The Aurora 2000 PM Correlating Nephelometer is part of the new generation nephelometers using a single wavelength and a BETA monitor to measure aerosol light scattering and derive particulate concentrations.The Aurora 2000 enables the calculation of a correlation factor based on a PM2.5 reference method which is then used to derive every minute PM2.5 concentrations along with the usual light scattering. The correction factor can be entered manually or automatically derived from hourly averages from a continuous PM2.5 monitor.
