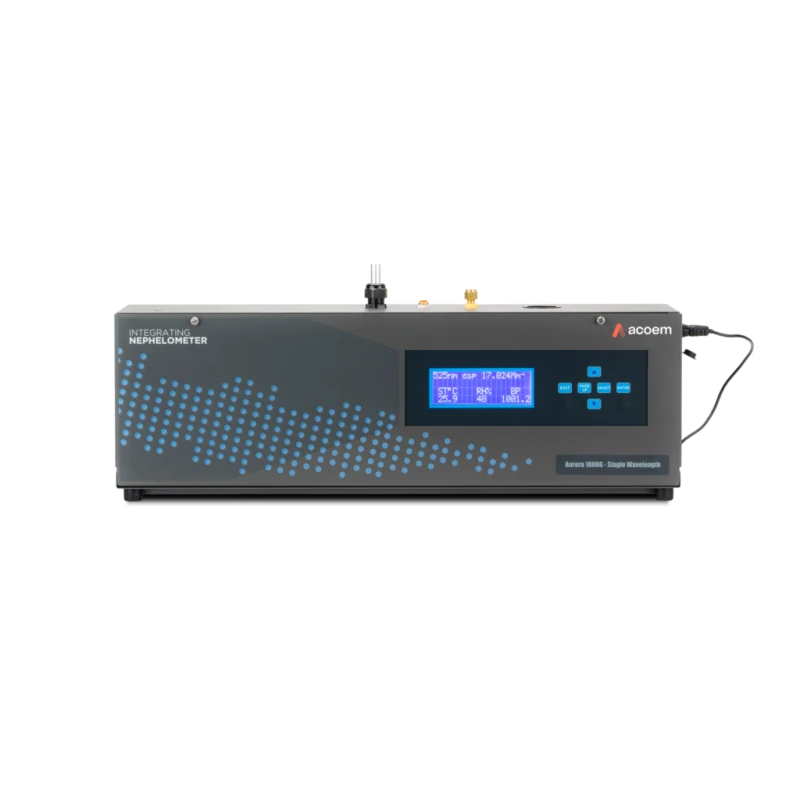

Aurora 1000 Integrating Nephelometer
Specifications
| Power Consumption | 13 W nominal 45 W with heater active |
|---|---|
| Ranges | 0.0 to Greater Than 20000 Mm-1 |
| Operating Temperature | - 20 to 45 Degree C |
| Flow Rate | 5 l/min with default blower. Higher flow can be obtained using the external pump option (e.g. in case of common inlet) |
| Dimensions | 170 x 700 x 215 mm |
| Operating Voltage (V) | 12 VDC (incl 110-240 VAC 50/60 Hz power supply converter) |
| Light Source | Stable LED light source (US patent 7671988) |
| Lower detectable limit | Less Than 0.3 Mm-1 (60 second averaged data) |
| Altitude | 2000 m (15000 m with 12 V operation) |
| Calibration | Span gas available for CO2 SF6 FM-200 R-12 R-22 R-134 or a user defined gas |
| Wavelength | 450 nm (blue) 525 nm (green) 635 nm (red) |
| Measured parameters | Light scattering coefficient (ssp) at (450 525 or 635 nm) |
| Secondary measurements | Sample air temperature relative humidity (RH) barometric pressure & enclosure temperature |
| Operating RH | 10 to 95 % |
| Optics | Reference light source measurement |
| Weight | 11.2 kg |
Key Features
- Fully automatic calibration using internal valves
- Single wavelength, available in 450 nm, 525 nm or 635 nm
Product Description
Easy to use and maintain, the Aurora 1000 lowers the cost of ownership for aerosol light scattering, visibility, and particulate monitoring instrumentation.The Aurora 1000 uses a single wavelength LED for light scattering coefficient and visibility measurements.Ecotech, collaborating with globally renowned atmospheric research institutes, now provides the scientific community with the most advanced commercially available nephelometers.Using a single wavelength LED light source, the Aurora 1000 can be equipped with any of the following light sources:450nm (blue) for fine and ultra-fine particulates525nm (green) for visibility635nm (red) for large particulates
- Wide measurement range (0.3 to 20,000 Mm-1)
- Ideal for remote locations
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement range is from 0.0 to greater than 20,000 Mm-1.
This model can be equipped with light sources at 450 nm (blue), 525 nm (green), or 635 nm (red).
The nominal power consumption is 13 W, increasing to 45 W when the heater is active.
It operates within a temperature range of -20 to 45 degrees Celsius.
The lower detectable limit is less than 0.3 Mm-1, based on 60-second averaged data.
The default blower provides a flow rate of 5 l/min, with higher flow achievable using an external pump.
The dimensions are 170 x 700 x 215 mm.
It operates at 12 VDC, and includes a 110-240 VAC 50/60 Hz power supply converter.
It measures sample air temperature, relative humidity, barometric pressure, and enclosure temperature.
It can operate at altitudes up to 2000 m, or 15,000 m with 12 V operation.
Calibration can be performed using a span gas available for CO2, SF6, FM-200, R-12, R-22, R-134, or a user-defined gas.
The operating relative humidity range is from 10% to 95%.
