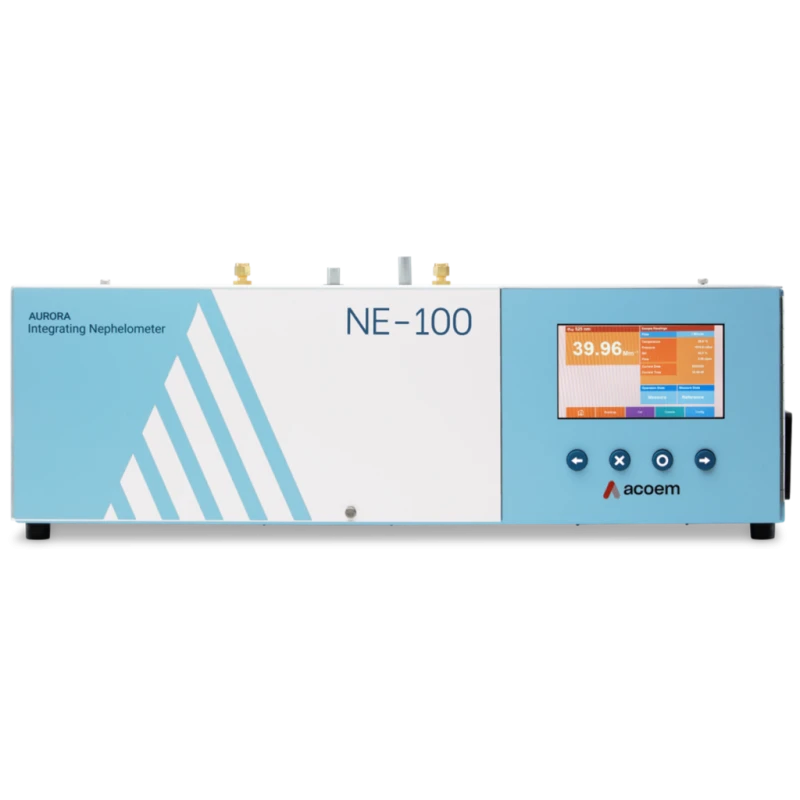

Aurora NE-100
Specifications
| Ranges | 0.0 to Greater Than 20000 Mm-1 |
|---|---|
| Operating Temperature | - 20 to 45 Degree C |
| Flow Rate | 3 - 9 slpm with internal pump & flow sensor 5 - 17 slpm with External pump & MFC option |
| Dimensions | 260 x 730 x 240 mm |
| Operating Voltage (V) | 12 VDC (incl 110 - 240 VAC 50/60 Hz power supply converter) |
| Light Source | Stable LED light source (US patent 7671988) |
| Lower detectable limit | Less Than 0.1 Mm-1 Full scatter and backscatter(60 second averaged data) |
| Altitude | 2000m (15000m with 24 VDC operation) |
| Calibration | Span gas available for CO2 SF6 FM-200 R-12 R-22 R-134 or a user defined gas |
| Wavelength | 525 nm (green) 450 nm (blue) 635 nm (red) |
| Measured parameters | Light scattering coefficient at (450 525 and 635 nm) |
| Secondary measurements | Sample temperature Pressure and relative humidity (RH) Multiple Instrument Parameter |
| Operating RH | 10 to 95 % |
| Optics | Reference light source measurement |
| Intensity function | Full scatter 7 to 173 Degree Back scatter 90 to 173 Degree |
| Weight | 13.8 kg |
Key Features
- High powered LED light source increases measurement accuracy
- Single light source and detector used for all wave-lengths
- Heat generated by the LED light source is a fraction of that generated by a flash lamp, minimising changes in sample RH
Product Description
Easy to use and maintain, the Acoem Aurora NE-100 delivers affordable excellence for aerosol light scattering, visibility and particulate monitoring.It uses a single wavelength for scattering coefficient visibility measurements at one of three user-specified wavelengths.
- Easy automatic calibration, ensures repeatability of measurement
- Automatic optical reference calibration
- Facilitates a wide measuring range (0 to 20,000 Mm-1)
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a measuring range of 0.0 to greater than 20,000 Mm-1.
This model can measure light scattering coefficients at 450 nm (blue), 525 nm (green), and 635 nm (red).
The operating temperature range is from -20 to 45 degrees Celsius.
It weighs 13.8 kg.
It features easy automatic calibration and an optical reference calibration to ensure repeatability of measurements.
The operating relative humidity range is from 10% to 95%.
It uses a stable LED light source, which minimizes heat generation compared to traditional flash lamps.
It can achieve a flow rate of 3 to 9 slpm with the internal pump and flow sensor, and 5 to 17 slpm with an external pump and MFC option.
The dimensions are 260 x 730 x 240 mm.
The lower detectable limit is less than 0.1 Mm-1 for full scatter and backscatter, based on 60-second averaged data.
It operates at 12 VDC and includes a power supply converter for 110 - 240 VAC at 50/60 Hz.
