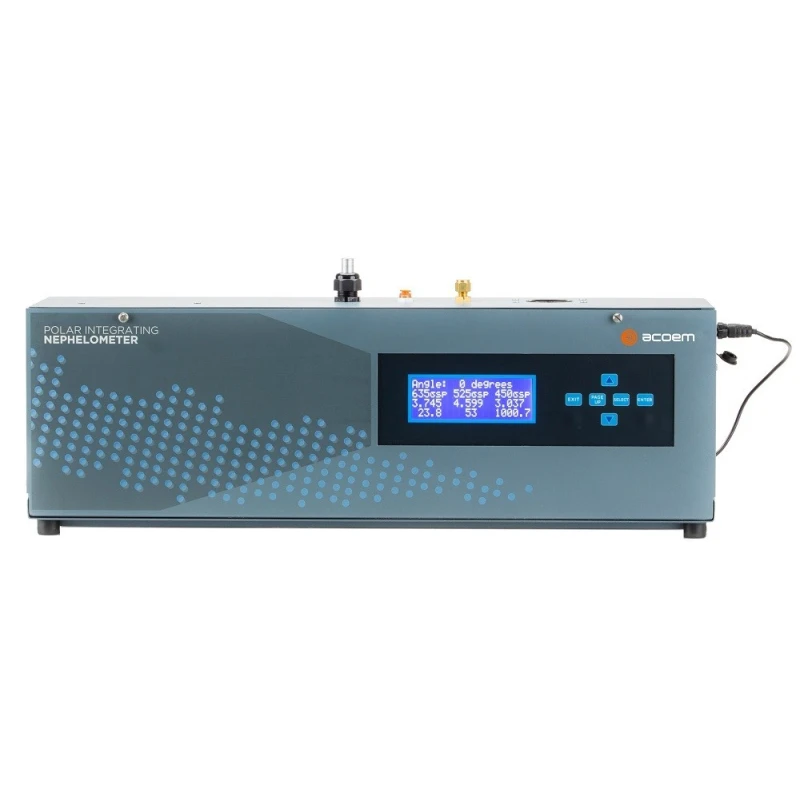

Aurora 4000 Polar Nephelometer
Specifications
| Ranges | 0.0 to Greater Than 20000 Mm-1 |
|---|---|
| Operating Temperature | - 20 to 45 Degree C |
| Flow Rate | 5 l/min (1 to 17 l/min for MFC option) |
| Dimensions | 170 x 700 x 215 mm |
| Operating Voltage (V) | 12 VDC (incl 110 - 240 VAC 50/60 Hz power supply converter) 13 watts nominal 45 watts with heater active |
| Light Source | Stable LED light source (US patent 7671988) |
| Lower detectable limit | Less Than 0.3 Mm-1 over all sectors (60 second averaged data) (0.1 Mm-1 full scatter and backscatter) |
| Altitude | 2000m (15000m with 12V operation) |
| Calibration | Span gas available for CO2 SF6 FM-200 R-12 R-22 R-134 or a user defined gas |
| Wavelength | 525 nm (green) 450 nm (blue) 635 nm (red) |
| Measured parameters | Light scattering coefficient (ssp) at (450 525 and 635 nm) over 2 to 18 angular sectors |
| Secondary measurements | Sample air temperature enclosure temperature sample relative humidity and sample pressure. (sample flow for MFC option) |
| Operating RH | 10 to 95 % |
| Optics | Reference light source measurement |
| Intensity function | 9 to 170 Dergee |
| Weight | 11.2 kg |
| Angular resolution | 1 deg increments within 0.3 deg accuracy |
Key Features
- High powered LED light source increases measurement accuracy
- 12 VDC operation (60 watts maximum, 15 watts nominal)
Product Description
Aerosol particles in the atmosphere directly influence the earths radiative balance by absorbing and scattering solar radiation and indirectly, by changing the clouds microphysical properties.The phase function, defined as the amount of light scattered as a function of the scattering angle, is a key parameter to accurately model the influence of aerosol scattering on the earths radiative balance. The Aurora 4000 provides integrated scattering measurements at a number of angles, assisting in the calculation of the phase function.The Aurora 4000 is the first commercially available polar nephelometer in the world.
- Higher flow available via the external pump and MFC option
