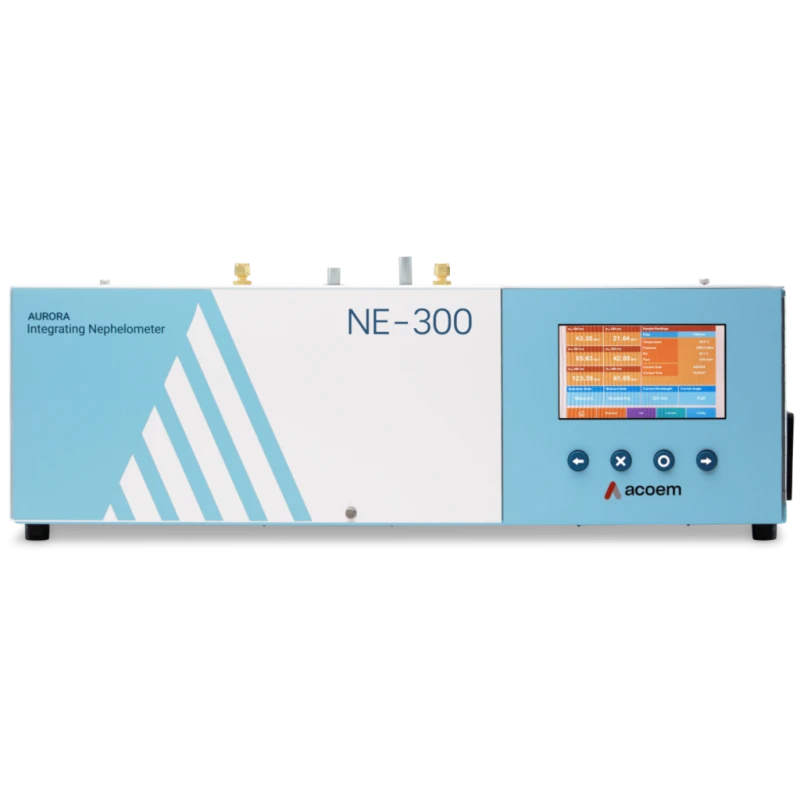

Aurora NE-300 3 Wavelength Integrating Nephelometer with backscatter functionality
Specifications
| Ranges | 0.0 to Greater Than 20000 Mm-1 |
|---|---|
| Operating Temperature | - 20 to 45 Degree C |
| Flow Rate | 3 - 9 slpm with internal pump & flow sensor 5 - 17 slpm with External pump & MFC option |
| Dimensions | 260 x 730 x 240 mm |
| Operating Voltage (V) | 12 VDC (incl 110 - 240 VAC 50/60 Hz power supply converter) 120 watts Maximum |
| Light Source | Stable LED light source (US patent 7671988) |
| Lower detectable limit | Less Than 0.1 Mm-1 Full scatter and backscatter(60 second averaged data) |
| Altitude | 2000m (15000m with 24 VDC operation) |
| Calibration | Span gas available for CO2 SF6 FM-200 R-12 R-22 R-134 or a user defined gas |
| Wavelength | 525 nm (green) 450 nm (blue) 635 nm (red) |
| Measured parameters | Light scattering coefficient at (450 525 and 635 nm) |
| Secondary measurements | Sample temperature Pressure and relative humidity (RH) Multiple Instrument Parameter |
| Operating RH | 10 to 95 % |
| Optics | Reference light source measurement |
| Intensity function | Full scatter 7 to 173 Degree Back scatter 90 to 173 Degree |
| Weight | 14.2 kg |
Key Features
- High powered LED light source increases measurement accuracy
- Single light source and detector used for all wave-lengths
- Heat generated by the LED light source is a fraction of that generated by a flash lamp, minimising changes in sample RH
Product Description
The amount of sunlight reaching the Earths surface, rather than being scattered back to space, is an essential parameter to accurately model the influence of aerosol scattering on the Earths radiative balance.The Acoem Aurora NE-300 contributes to this measurement by reporting both the integrated full and backscatter coefficients at 3 wavelengths.
- Easy automatic calibration, ensures repeatability of measurement
- Automatic optical reference calibration
- Facilitates a wide measuring range (0 to 20,000 Mm-1)
