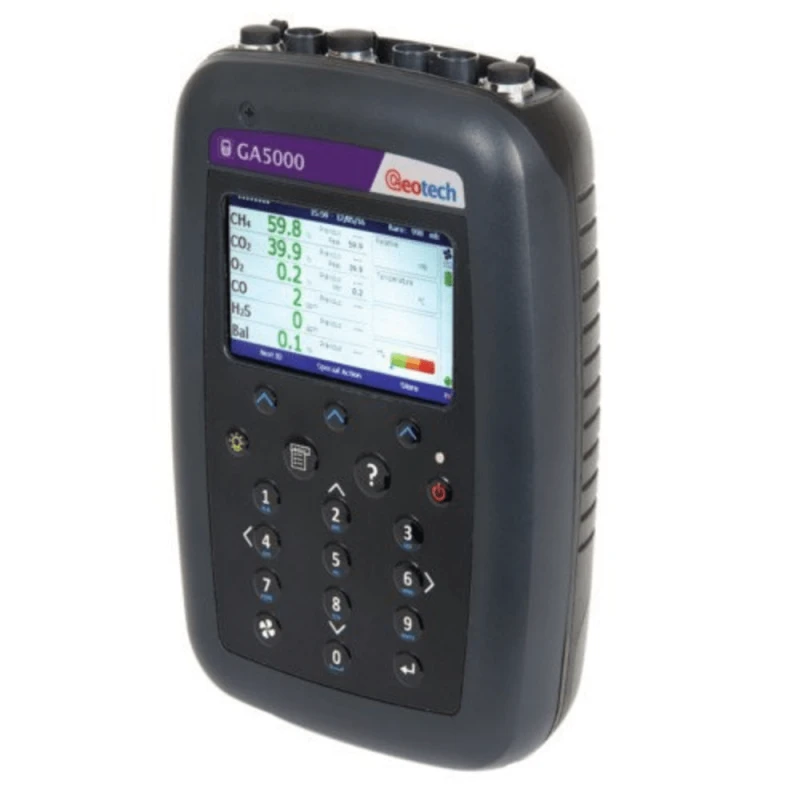

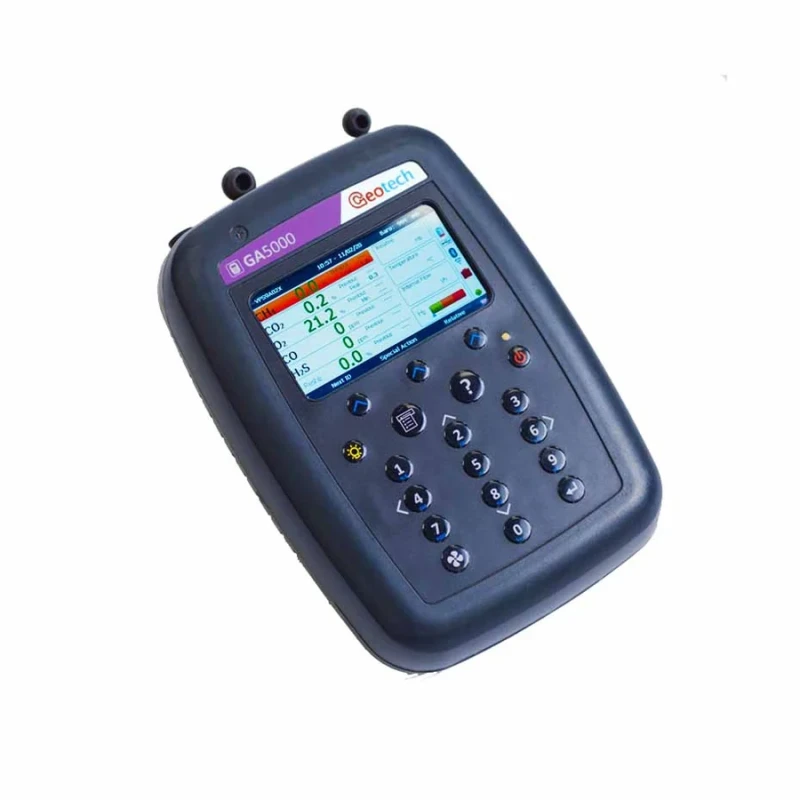

Geotech GA5000 Portable Biogas Analyser, Landfill Gas Detector, CH4/CO2/O2/H2S/CO, Internal Pump
Specifications
| Brand | Geotech |
|---|---|
| Power Supply | Rechargeable NiMH battery pack (not user replaceable) |
| Operating Temperature | -10°C to +50°C |
| Temperature Measurement Range | -10°C to +75°C (with optional probe) |
| Model | GA5000 |
| Response Time (T90) | CH4/CO2 ≤10s, O2 ≤20s, CO/H2S ≤30s, NH3/H2 ≤90s |
| Pump Flow Rate | 550 ml/min |
| Measuring range CO2 | 0–100% vol |
| Detection Gases | CH4, CO2, O2, H2S, CO, NH3, H2 (selectable at manufacture) |
| Measuring Range CH4 | 0–100% vol |
| Measuring Range O2 | 0–25% vol |
| Optional Measuring Cells | CO: 0–500/1000/2000 ppm (H2 compensated); H2S: 0–50/200/500/1000/5000/10000 ppm; NH3: 0–1000 ppm; H2: 0–1000 ppm |
| Battery Charger Input | 100–240V AC |
Key Features
Geotech GA5000 portable biogas analyser for accurate measurement of landfill, biogas, and contaminated land gases.
- Simultaneously measures CH4, CO2, O2, H2S, and CO for comprehensive gas analysis.
- Equipped with an internal pump and high-precision infrared and electrochemical sensors.
- Built-in barometric pressure, relative pressure, and temperature measurement.
- Intrinsically safe with ATEX, CSA, IECEx certifications for hazardous environments.
- Quick response time with T90 of ≤10–30 seconds for most gases.
- Durable construction using ABS/polypropylene and rubber over-moulded case.
- Operates in a wide temperature range: -10°C to +50°C, up to +75°C with optional probe.
- Data logging with large memory for up to 2,000 IDs, 4,000 readings, and 2,000 events.
- Supplied with sample tube kit, charger, and sturdy hard carry case.
Product Description
Geotech GA5000 portable biogas analyser GA5000 is a high-precision instrument designed for accurate on-site measurement of landfill, biogas, and contaminated land gases including methane (CH4), carbon dioxide (CO2), oxygen (O2), hydrogen sulfide (H2S), and carbon monoxide (CO), with optional NH3 and H2. The analyser integrates infrared and electrochemical detection methods, supported by an internal pump for effective sample intake.
This analyser offers simultaneous multi-gas measurement with rapid T90 response times and comprehensive data storage. It measures barometric and relative pressure, as well as environmental temperature, supporting users in complying with environmental legislation and standardising site monitoring routines. The GA5000 is intrinsically safe (ATEX II 2G Ex ib IIA T1 Gb) and is certified for operation in hazardous zones. Its robust ABS/polypropylene body with rubber over-moulding ensures industrial durability and field reliability. Other features include GPS capabilities, user-selectable alarms, data logging, a high-resolution TFT display, and user-friendly USB connectivity for data transfer.
- Simultaneously measures CH4, CO2, O2, H2S (up to 10,000ppm), NH3, and H2, with CO (H2 compensated).
- Built-in barometric pressure and relative pressure sensors for comprehensive onsite gas profiling.
- ATEX, CSA, and IECEx certified for intrinsic safety in hazardous environments (-10°C to +50°C).
- Internal pump with a typical flow rate of 550 ml/min and flow fail/vacuum safety features.
- Battery-powered (NiMH pack), provides up to 8 hours of typical operation from a full charge.
- Robust, waterproof (IP65) construction, suitable for rugged field use and harsh weather.
- Data logging for 2,000 IDs, 4,000 readings, 2,000 events; large colour TFT display for simultaneous viewing of all gas readings.
- Supplied standard with sample tube kit and intelligent battery charger in a protective hard carry case.

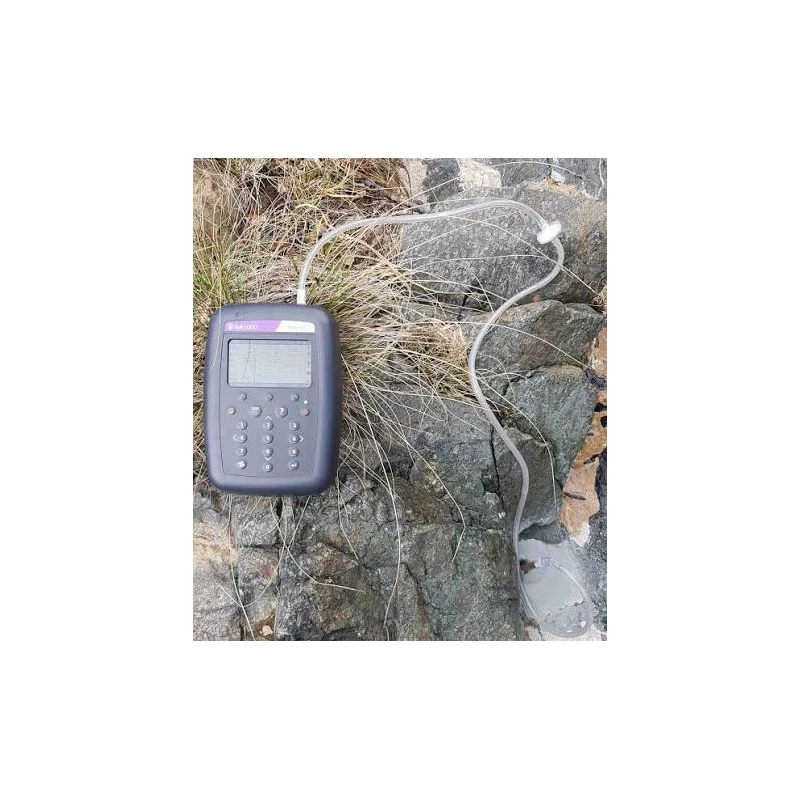

Industrial and laboratory uses include landfill gas monitoring, waste-to-energy plant measurement, contaminated land assessment, regulatory compliance, environmental reporting, and process optimisation in renewable energy and waste management sectors.
Available GA5000 Configurations
Select the part number that matches the required gas sensors and optional functions such as internal flow, GPS and Service Plus registration.
| Part Number | Description |
|---|---|
| GA5K0000-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0000-011 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2. Supplied with a sample tube kit and charger in a hard carry case. Registered for the Service Plus scheme. |
| GA5K0000-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, and internal flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0000-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2 and internal flow. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0000-210 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2 and GPS. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0000-310 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, internal flow and GPS. Supplied with a sample tube kit and charger in a hard carry case |
| GA5K00A0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, and H2S (0-50 ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K00A0-011 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2S 0-50ppm. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K00B0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2S (0-200ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K00B0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, and H2S 0-200ppm and fitted with internal flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K00C0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2S 0-1000ppm. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K00C0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, and H2S (0-1,000ppm) with internal flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K00C0-311 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2S (0-1000ppm), internal flow and GPS. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K00D0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, and H2S 0-5000ppm. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K00D0-011 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, and H2S 0-5000ppm . Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K00D0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2S 0-5000ppm and Internal Flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K00E0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2 and H2S (0-10,000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K00F0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO 0-1000ppm. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K00F0-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-1000ppm). With Internal Flow. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0AA0-311 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2S (0-50ppm) and CO (0-2000ppm with H2compensated), internal flow & GPS. Supplied with a sample tube kit and charger in a hard carry case. Registered for the Service Plus scheme. |
| GA5K0AB0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated),H2S (0-200ppm) and internal flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0AB0-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated), H2S (0-200ppm) and internal flow. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard Carry case |
| GA5K0AC0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated) and H2S (0-1000ppm).Supplied in a hard carry case, complete with sample tube, water trap filter, and battery charger. |
| GA5K0AC0-011 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated) and H2S (0-1000ppm). Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0AC0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated), H2S (0-1000ppm) and internal flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0AC0-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated), H2S (0-1000ppm) and internal flow. Registered for the Service Plus Scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0AC0-211 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated), H2S (0-1000ppm), GPS. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0AC0-311 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2), H2S 0-1000ppm, internal flow and GPS. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0AD0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated), H2S (0-5000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0AD0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated), H2S (0-5000ppm) and internal flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0AD0-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated), H2S (0-5000ppm) & internal flow. Supplied with a sample tube kit and charger in a hard carry case. Registered for Service Plus. |
| GA5K0AD0-210 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated) , H2S (0-5000ppm) & GPS. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0AD0-311 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated), H2S (0-5000ppm), internal flow and GPS. Registered for the Service Plus scheme. With a sample tube kit and charger in a hard carry case. |
| GA5K0AE0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated), and H2S (0-10,000ppm) and internal flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0AE0-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4,CO2, O2, CO (0-2000ppm with H2 compensated),and H2S(0-10,000ppm) & internal flow. Supplied with a sample tube kit & charger in a hard carry case. Registered for Service Plus. |
| GA5K0AE0-210 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated), H2S (0-10,000ppm) with GPS. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0AE0-211 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated), H2S (0-10,000ppm) with GPS. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5K0AE0-310 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated) and H2S (0-10,000ppm), with internal flow and GPS. Supplied in a hard carry case, complete with a sample tube. |
| GA5K0AE0-311 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm with H2 compensated) & H2S (0-10,000ppm), with internal flow and GPS. Registered for the Service Plus scheme. Supplied in a hard carry case, complete with a sample tube (Non-BT) |
| GA5KA000-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2S (500ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KA0F0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2S 0-500ppm, CO 0-1000ppm. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KAA00-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2S (0-500ppm), CO (0-2000ppm with H2compensated) and internal flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KAA00-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2S (0-500ppm), CO (0-2000ppm with H2compensated) and internal flow. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KB000-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-500ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KB0A0-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-500ppm), H2S (0-50ppm) and internal flow. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KB0B0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-500ppm), H2S (0-200ppm) and internal flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KB0B0-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-500ppm), H2S (0-200ppm) and internal flow. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KB0C0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-500ppm) and H2S (0-1000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KB0C0-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-500ppm), H2S (0-1000ppm) and internal flow. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KB0C0-310 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-500ppm), H2S (0-1000ppm), Internal Flow and GPS. Supplied with a sample tube kit and charger in a hard carry case |
| GA5KB0C0-311 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-500ppm), H2S (0-1000ppm), Internal Flow and GPS. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case |
| GA5KB0D0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-500ppm),H2S (0- 5000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KB0D0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-500ppm),H2S (0- 5000ppm) and internal flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KB0D0-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-500ppm),H2S (0- 5000ppm) and internal flow. Supplied with a sample tube kit and charger in a hard carry case. Registered for Service Plus. |
| GA5KB0E0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-500ppm), H2S (0-10,000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KC000-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, NH3 0-1000ppm. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KC0C0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, NH3 (0-1000ppm) and H2S (0-1000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KC0D0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, NH3 (0-1000ppm), H2S (0-5000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KC0D0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, NH3 (0-1000ppm), H2S (0-5000ppm).With Internal Flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KC0E0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, NH3 0-1000ppm, H2S 0-10000ppm. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KCAB0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, NH3 (0-1,000ppm) CO (0-2000ppm with H2compensated) and H2S (0-200ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KCAC0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, NH3 (0-1,000ppm) CO (0-2000ppm with H2compensated)and H2S (0-1,000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KCAC0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, NH3 (0-1,000ppm) CO (0-2000ppm with H2compensated) and H2S (0-1,000ppm) with Internal Flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KCAC0-210 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, NH3 (0-1,000ppm) CO (0-2000ppm with H2compensated)and H2S (0-1,000ppm) and GPS. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KCAD0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2,O2, NH3 (0-1,000ppm), hydrogen compensated CO (0-2,000ppm) andH2S (0-5,000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KCAD0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, NH3 (0-1,000ppm), hydrogen compensated CO (0-2,000ppm), H2S (0-5,000ppm) with Internal Flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KCAE0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, NH3 (0-1,000ppm) CO (0-2000ppm with H2compensated)and H2S (0-10,000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KCAE0-210 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, NH3 (0-1000ppm), CO (0-2000ppm with H2),H2S (0-10000ppm) and GPS. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG000-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (1,000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG000-210 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (1,000ppm) and GPS. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG0A0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (1,000ppm) and H2S (0-50ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG0A0-211 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (1,000ppm) and H2S (0-50ppm) No GPS. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG0C0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (1000ppm) and H2S (0-1000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG0C0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (1000ppm) and H2S (0-1000ppm), with Internal Flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG0C0-210 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (1000ppm) and H2S (0-1000ppm) and GPS. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG0D0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (0-1000ppm) and H2S (0-5000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG0D0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (0-1000ppm) and H2S (0-5000ppm) with Internal Flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG0D0-210 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (0-1000ppm) and H2S (0-5000ppm) and GPS. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG0D0-310 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (0-1000ppm) and H2S (0-5000ppm), internal flow and GPS. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG0E0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 0-1000ppm, H2S 0-10000ppm. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG0E0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 0-1000ppm, H2S 0-10000ppm and internal flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KG0F0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (0-1000ppm) and CO(0-1000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KGAA0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (0-1000ppm), CO (0-2000ppm with H2compensated) and H2S (0-50ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KGAA0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (0-1000ppm), CO (0-2000ppm with H2compensated) and H2S (0-50ppm). Internal Flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KGAA0-310 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (0-1000ppm), CO (0-2000ppm with H2 compensated) and H2S (0-50ppm). With Internal Flow and GPS. |
| GA5KGAB0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2 .H2 0-1000ppm. CO (0-2000ppm with H2 compensated)H2S 0-200ppm. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KGAB0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2. H2 0-1000ppm. CO (0-2000ppm with H2 compensated)H2S 0-200ppm with Internal Flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KGAB0-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2. H2 0-1000ppm. CO (0-2000ppm with H2 compensated)H2S 0-200ppm with Internal Flow. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KGAB0-210 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 0-1000ppm, CO (0-2000ppm with H2compensated), H2S 0-200ppm and GPS. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KGAC0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (1000ppm) CO (0-2000ppm with H2 compensated)and H2S (0-1000ppm). Supplied in a hard carry case, complete with a sample tube, filter, and charger. |
| GA5KGAC0-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 (1,000ppm) CO (0-2000ppm with H2compensated), H2S (0- 1000ppm), internal flow. Registered for the Service Plus scheme. Supplied with a sample tube kit & charger in a hard carry case. |
| GA5KGAC0-310 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, H2 0-1000ppm, CO (0-2000ppm with H2compensated), H2S 0-1000ppm, internal flow and GPS. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KGAD0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2,000ppm with H2 compensated), H2 (0-1,000ppm) and H2S (0-5,000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KGAD0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2,000ppm with H2 compensated), H2 (0-1,000ppm) and H2S(0-5,000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KGAD0-310 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2,000ppm with H2 compensated), H2 (0-1,000ppm) and H2S (0-5,000ppm), internal flow, GPS. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KGAE0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2,000ppm with H2 compensated), H2 (0-1,000ppm) and H2S (0-9,999ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KGAE0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2,000ppm with H2 compensated), H2 (0-1,000ppm) and H2S (0-9,999ppm), and internal flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KI000-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-1,000ppm)). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KI0B0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-1,000ppm), H2S (0-200ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KI0C0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO 0-1000ppm, H2S 0-1000ppm. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KI0C0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-1000ppm), H2S (0-1000ppm) with Internal Flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KI0C0-210 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO 0-1000ppm, H2S 0-1000ppm, includes GPS. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KI0C0-311 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO 0-1000ppm, H2S 0-1000ppm, internal flow and GPS. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KI0D0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-1000ppm),H2S (0- 5000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KI0D0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-1,000ppm) and H2S (0-5,000ppm) with Internal Flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KI0E0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-1,000ppm) and H2S (0-10,000ppm) with Internal Flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KK0C0-011 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm) and H2S (0-1000ppm). Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KK0C0-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm), H2S (0-1000ppm) with Internal Flow. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KK0D0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm) and H2S (0-5000ppm). Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KK0D0-110 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm) and H2S (0-5000ppm) with Internal Flow. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KK0D0-111 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO (0-2000ppm) and H2S (0-5000ppm) with Internal Flow. Registered for the Service Plus scheme. Supplied with a sample tube kit and charger in a hard carry case. |
| GA5KK0E0-010 | GA5000 ATEX, CSA, IECEx certified gas analyser. Measures CH4, CO2, O2, CO 0-2000ppm, H2S 0-10000ppm. Supplied with a sample tube kit and charger in a hard carry case. |
Package contents: 1 portable GA5000 analyser, 1 sample tube kit, 1 charger, supplied in a hard carry case.
Browse more Geotech gas analysis and landfill monitoring solutions in the Gas Analyzer category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure methane (CH4), carbon dioxide (CO2), oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO), ammonia (NH3), and hydrogen (H2).
The response time (T90) is ≤10 seconds for CH4 and CO2, ≤20 seconds for O2, and ≤30 seconds for CO and H2S. NH3 and H2 have a response time of ≤90 seconds.
The GA5000 operates within a temperature range of -10°C to +50°C, and can measure temperatures up to +75°C with an optional probe.
It features an internal pump with a flow rate of 550 ml/min, facilitating effective sample intake.
This model is powered by a rechargeable NiMH battery pack, which is not user-replaceable.
The specific dimensions and weight are not provided in the available data; please refer to the manufacturer's specifications for detailed measurements.
The analyser is intrinsically safe and certified with ATEX, CSA, and IECEx for operation in hazardous environments.
It can log data for up to 2,000 IDs, 4,000 readings, and 2,000 events, allowing for comprehensive data management.
Optional measuring cells include CO (0–500/1000/2000 ppm, H2 compensated), H2S (0–50/200/500/1000/5000/10000 ppm), NH3 (0–1000 ppm), and H2 (0–1000 ppm).
It comes standard with a sample tube kit, a charger, and is supplied in a sturdy hard carry case.
This analyser is suitable for landfill gas monitoring, waste-to-energy plant measurement, contaminated land assessment, and regulatory compliance.
Yes, it features a robust and waterproof construction rated at IP65, making it suitable for rugged field use and harsh weather conditions.
Related Products
$11,466.18
$10,892.87
Save 5%
Tax included
Quantity
Global Payments 140+ Countries
Global Shipping Fedex/UPS/DHL/Aramex/
BlueDart/Delhivery/DP World
24/7 Customer Support Email/Chat/Telephonic Support
Comments (0)
Your review appreciation cannot be sent
Report comment
Report sent
Your report cannot be sent
