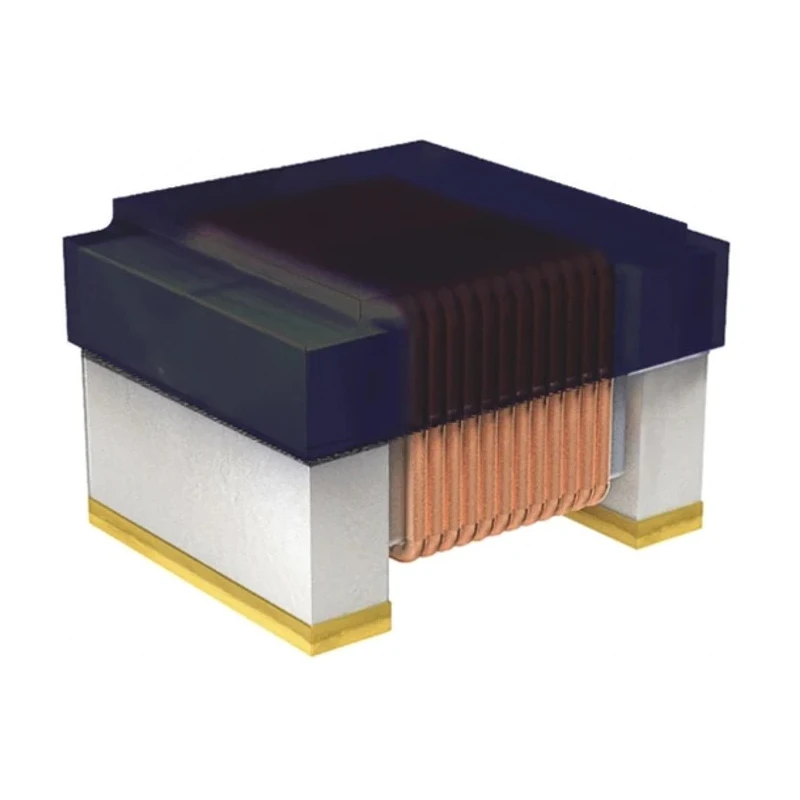

EPCOS WE-RFI 0805 Shielded Wirewound Surface Mount Inductor 680 nH ±5 % 400 mA 744760268A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | EPCOS |
| Height | 1.2mm |
| Length | 2mm |
| Model | 744760268A |
| Depth | 1.25mm |
| Packaging | Tape & Reel |
| Series | WE-RFI |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 680nH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, REACH, RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 400mA |
| Maximum DC Resistance | 1.2Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 188MHz |
| Minimum Quality Factor | 35 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Inductance value is precisely 680 nanoHenries with ±5% tolerance.
- Maximum DC current rating of 400 mA ensures stable performance under load.
- Compact 0805 surface mount package measuring 2 x 1.25 x 1.2 mm.
- Ferrite core construction provides high-quality magnetic properties and shielding.
- Maximum self-resonant frequency of 188 MHz supports RF applications.
- Operating temperature range from -40°C to 85°C suitable for automotive and industrial use.
- Compliant with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards.
- Automotive qualified to AEC-Q200 standard for durability and reliability.
Product Description
Wurth Elektronik 744760268A is a 0805 series shielded wirewound surface mount inductor featuring a ferrite core with an inductance of 680 nH ±5 %. Designed for robust performance, this inductor can handle a maximum DC current of 400 mA while maintaining low DC resistance of 1.2 Ω.
It is supplied in a compact tape and reel packaging optimized for automated PCB assembly. The inductor operates reliably across a wide temperature range from -40°C to 85°C, making it suitable for industrial, automotive, and electronic applications requiring high-frequency RF and RFID performance.
The ferrite core and wirewound construction ensure minimal acoustic noise and low leakage flux, important for sensitive electronic environments. The device complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards, and meets the demanding AEC-Q200 automotive qualification, providing assurance of quality and durability.
Its small 2 mm length, 1.25 mm depth, and 1.2 mm height package enables high-density PCB layouts. The maximum self-resonant frequency is 188 MHz, supporting a variety of low-frequency RF circuit designs.
Inductance precisely 680 nH with tight ±5% tolerance. 400 mA maximum DC current capability. 0805 surface mount package, compact size for space-saving PCB design. Ferrite core material ensures efficient magnetic performance and shielding.
Low DC resistance of 1.2 Ω minimizes power loss. Wide operating temperature range (-40°C to 85°C) for harsh environments. Conforms to global environmental and automotive standards. Wirewound construction reduces noise and leakage flux.
This Wurth Elektronik WE-RFI series inductor is ideal for applications in industrial electronics, telecommunications, automotive systems, RFID devices, and other electronic circuits requiring stable and reliable inductive components.
Explore the extensive category of Surface Mount Inductors on EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value is precisely 680 nanoHenries with a tolerance of ±5%.
It has a maximum DC current rating of 400 mA, ensuring stable performance under load.
The package measures 2 mm in length, 1.25 mm in depth, and 1.2 mm in height.
The maximum self-resonant frequency is 188 MHz, which supports RF applications.
It operates reliably across a temperature range from -40°C to 85°C, suitable for harsh environments.
It features a ferrite core construction, which provides high-quality magnetic properties and shielding.
It complies with IEC 61249-2-21, JEDEC JS709B, REACH, and RoHS standards, and is automotive qualified to AEC-Q200.
The termination style is surface mount, optimized for automated PCB assembly.
The minimum quality factor is 35, which indicates its efficiency in RF applications.
The maximum DC resistance is 1.2 Ω, which helps minimize power loss.
It uses wirewound construction, which reduces acoustic noise and leakage flux.
It is supplied in tape and reel packaging, which is optimized for automated assembly processes.
