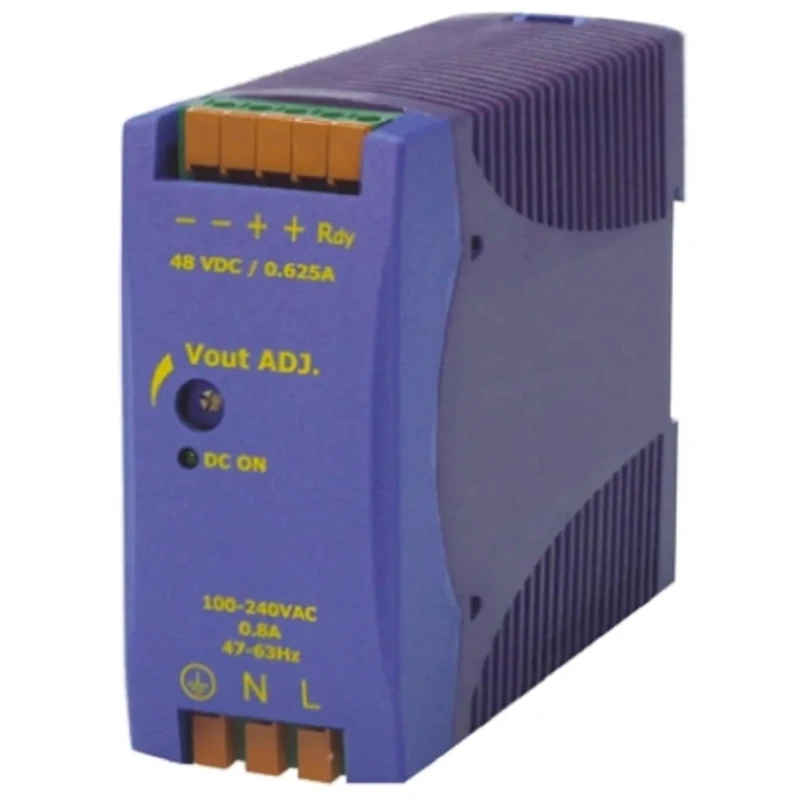

Chinfa DRAN30 Switched Mode DIN Rail Power Supply 30W 264V AC Input 48V DC Output 625mA DRAN30
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Chinfa |
| Power | 30W |
| Efficiency | 86% |
| Height | 90mm |
| Model | DRAN30 |
| Depth | 114mm |
| Width | 114mm |
| Series | DRAN30 |
| Output Current | 625mA |
| Maximum Operating Temperature | 71°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 48V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Universal AC input voltage range from 85V to 264V supports global compatibility.
- Compact dimensions of 114mm width, 90mm height, and 114mm depth fit standard DIN rails.
- High efficiency of 86% ensures energy-saving operation.
- Operates reliably in ambient temperatures from -40°C to 71°C.
- Equipped with remote signal DC-OK function for status monitoring.
- Single output providing stable 48V DC voltage at 625mA output current.
- Complies with safety and EMC standards including UL 508, UL 62368-1, EN 55032, EN 61558 series, and EN 62368-1.
- Designed for industrial control automation applications with robust internal input filter and short circuit protection.
Product Description
Chinfa DRAN30 is a switched mode DIN rail power supply rated for 30W output power. It accepts a wide AC input voltage range of 85 to 264V AC and delivers a regulated 48V DC output voltage with a current output of 625mA. Its compact form factor (114mm x 90mm x 114mm) enables easy installation on standard DIN rails in industrial panels.
This power supply features universal mains input, internal input filtering, and short circuit protection to ensure durability in demanding industrial environments. It operates efficiently at 86% efficiency and supports ambient temperatures from -40°C to +71°C making it suitable for harsh conditions.
The unit offers a remote signal DC-OK output for monitoring power supply status and meets a comprehensive range of safety and EMC requirements including UL 508, UL 62368-1, EN 55032, EN 61558-1, EN 61558-2-16, and EN 62368-1 certifications. It is an ideal choice for industrial control automation requiring stable and reliable DC power supplies.
Universal input voltage range 85V to 264V AC. Single DC output delivering 48V at 625mA. High efficiency of 86% for power savings. Compact and robust DIN rail mounting form factor. Wide operating temperature from -40°C to +71°C.
Remote DC-OK signal for operational status monitoring. Compliant with major safety and EMC standards. Short circuit protection and internal input filter included. Manufactured in Taiwan, Province Of China.
This power supply is widely used in industrial, manufacturing, automation, and control panel applications requiring reliable DIN rail mounted power sources. Explore a wide selection of power supplies and related components at EnvMart to complete your industrial electrical system requirements.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It accepts a wide AC input voltage range from 85V to 264V.
The DRAN30 provides a regulated output of 48V DC at a current of 625mA.
This unit has compact dimensions of 114mm in width, 90mm in height, and 114mm in depth.
It operates with an efficiency of 86%, ensuring energy-saving operation.
The DRAN30 functions reliably in ambient temperatures ranging from -40°C to +71°C.
Yes, it is equipped with short circuit protection and an internal input filter.
It is designed for industrial control automation applications, providing stable and reliable DC power.
It complies with UL 508, UL 62368-1, EN 55032, EN 61558 series, and EN 62368-1 standards.
This model features a single output.
The power supply is manufactured in Taiwan.
It operates on a single electrical phase.
Yes, it includes a remote signal DC-OK function for status monitoring.
