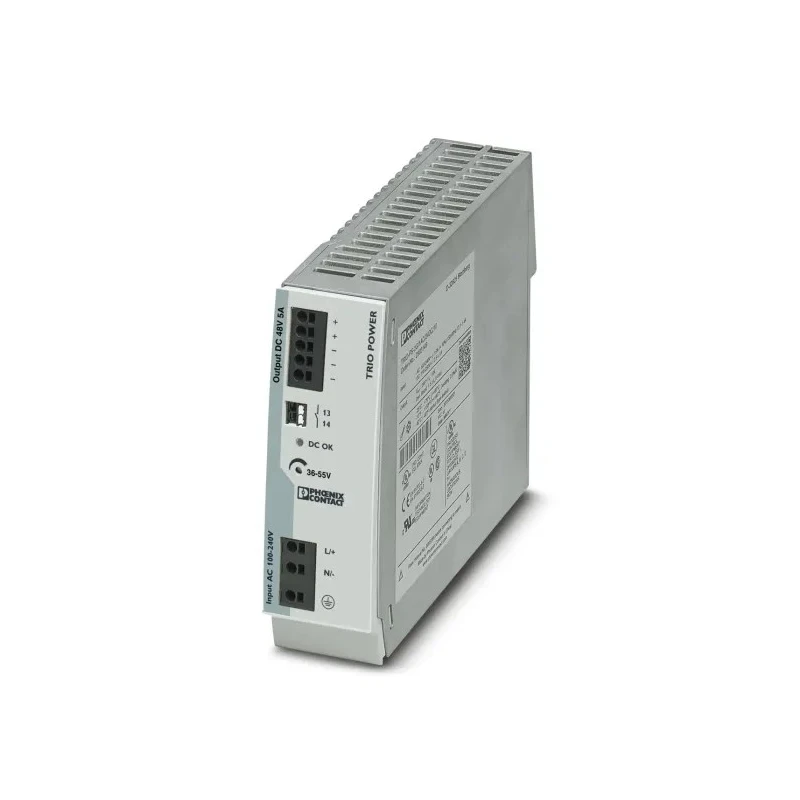

Phoenix Contact TRIO POWER Switched Mode DIN Rail Power Supply 240V AC Input 48V DC Output 5A 240W 2903159
Specifications
| Country of Origin | China |
|---|---|
| Brand | Phoenix Contact |
| Power | 240W |
| Efficiency | 91% |
| Height | 130mm |
| Model | 2903159 |
| Depth | 160mm |
| IP Rating | IP20 |
| Width | 42mm |
| Series | TRIO POWER |
| Output Current | 5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 2 |
| Maximum Input Voltage | 240V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 48V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Equipped with two outputs for versatile industrial applications.
- Input voltage range from 85V to 240V AC supports wide compatibility.
- High efficiency rate of 91% reduces energy consumption and heat.
- Operating temperature range from -25°C to +70°C ensures durability in harsh environments.
- Safety features include IP20 rating and terminals protected against accidental contact.
- Compact dimensions (42mm W x 130mm H x 160mm D) fit standard DIN rail systems.
- Mean time between failures (MTBF) of 2,000,000 hours at 25°C promises long-term reliability.
- Integrated dynamic boost system allows starting loads up to 150% nominal current.
Product Description
Phoenix Contact 2903159 TRIO POWER Switched Mode DIN Rail Power Supply provides dependable power output with 5A current capacity and 240W rating from a 240V AC input. Designed for DIN rail mounting, this power supply unit supports industrial and commercial electrical components requiring stable 48V DC power.
This switched mode power supply features two outputs for flexible connectivity and supports input voltages ranging from 85V to 240V AC, or 110V to 250V DC. It ensures energy efficiency with a 91% rating and includes an internal 6.3A fuse for short-circuit protection and safety against electric shock.
The robust thermoplastic housing and IP20 rating provide impact resistance and protection against accidental contact with live parts. Rated to operate reliably in temperatures from -25°C to 70°C, it is suitable for demanding industrial environments. Its slim dimensions (42mm width, 130mm height, 160mm depth) allow compact installations on standard DIN rails.
Additional features include a dynamic current boost up to 150% of nominal rating for starting difficult loads, and a high MTBF of 2 million hours at 25°C ensuring long-term durability. Compliance with several EN standards ensures electromagnetic compatibility and safety.
Typical applications include industrial automation, manufacturing equipment, control systems, and telecommunications infrastructure where reliable 48V DC power is essential. This power supply unit minimizes installation costs with features such as a grounding terminal block and push-in connection technology.
Two outputs enable versatile power distribution. Wide input voltage range supports global usage. 91% efficiency promotes energy savings. Temperature range covering -25°C to 70°C for harsh conditions. Safe design with IP20 rating and fuse protection.
Compact dimensions for easy DIN rail integration. Dynamic current boost supports challenging loads. High reliability with 2 million hours MTBF. Suitable for various industrial and commercial sectors.
This Phoenix Contact DIN rail power supply is an optimal choice for industries requiring efficient and reliable 48V DC power solutions. Explore other power supplies and related products at EnvMart to meet your electrical component needs.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power supply has an output capacity of 240W and can deliver a current of 5A.
It supports an input voltage range from 85V to 240V AC.
The dimensions are 42mm in width, 130mm in height, and 160mm in depth.
The efficiency rating is 91%, which helps reduce energy consumption and heat generation.
It operates reliably within a temperature range of -25°C to 70°C.
It has a robust thermoplastic housing that provides impact resistance.
It includes an IP20 rating and terminals that are protected against accidental contact.
The maximum operating temperature is 70°C.
It is suitable for applications in industrial automation, manufacturing equipment, control systems, and telecommunications infrastructure.
This model is classified as a switched mode power supply.
