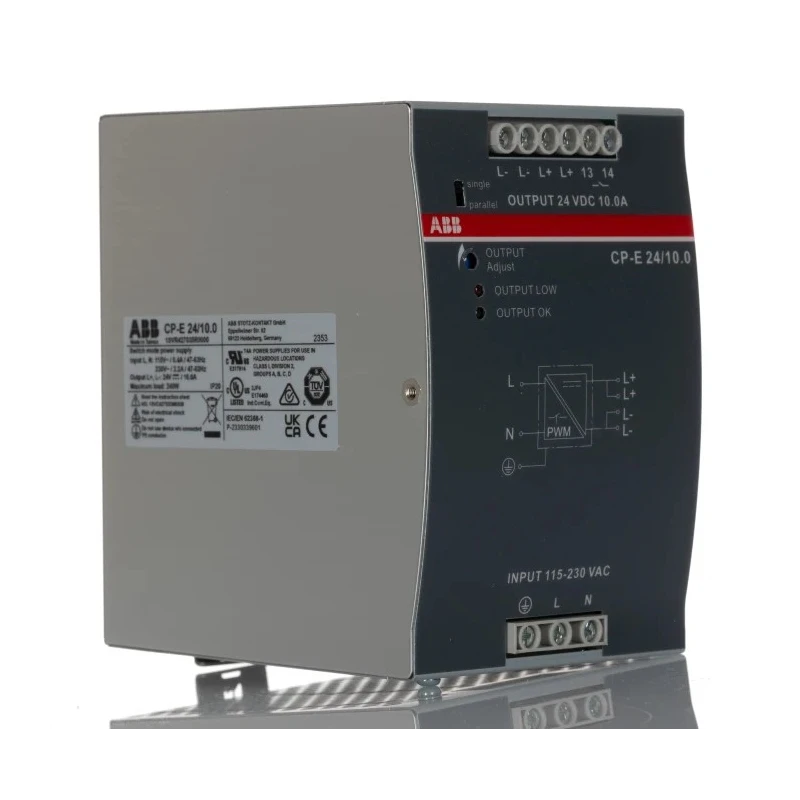

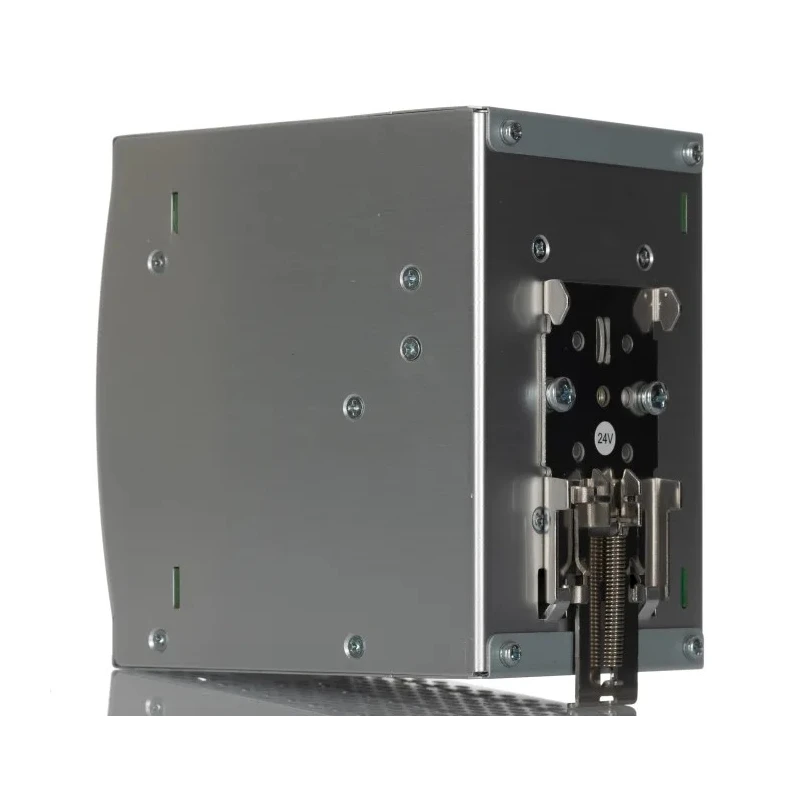

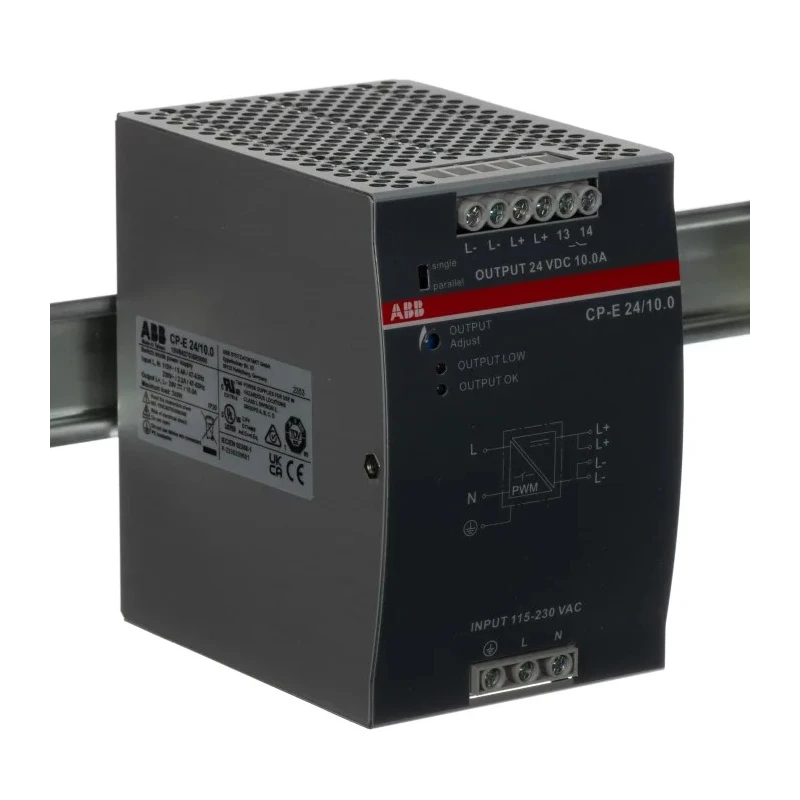

ABB CPE Switched Mode DIN Rail Power Supply AC/DC Input 230V, 24V DC Output, 10 A, 240 W 1SVR427035R0000 CP-E 24/10.0

Free Delivery in India | Lowest Global Shipping Charges

ABB CPE Switched Mode DIN Rail Power Supply AC/DC Input 230V, 24V DC Output, 10 A, 240 W 1SVR427035R0000 CP-E 24/10.0



Category DIN Rail Power Supplies Brand ABB Condition New

Specifications

Country of Origin	Taiwan
Brand	ABB
Power	240W
Efficiency	89%
Height	123.6mm
Model	1SVR427035R0000 CP-E 24/10.0
Depth	123.6mm
IP Rating	IP20
Width	83mm
Series	CPE
Output Current	10A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	230V ac
Electrical Phase	1
Standards/Approvals	UL 60950-1
Maximum Output Voltage	24V dc
Minimum Input Voltage	115V ac

Key Features

Supports both AC and DC input voltage for versatile operation.
Output voltage is fixed at 24V DC with a current output of 10 A.
Compact DIN rail mount design with IP20 rating for indoor use.
High efficiency of 89% minimizes energy loss and heat generation.
Wide operating temperature range from -40°C to 70°C suitable for diverse environments.
Built-in protections against short circuits and overloads enhance safety.
LED indicators provide clear status identification for operational convenience.
Silent free-convection cooling eliminates the need for fans or ventilators.

Product Description

ABB 1SVR427035R0000 CP-E 24/10.0 Switched Mode DIN Rail Power Supply is designed for industrial and automation applications requiring stable DC power delivery.

Featuring a wide input voltage range supports single-phase AC/DC input from 115V to 230V, this power supply ensures flexible installation environments. It delivers a fixed DC output of 24V at a current rating of 10 A with a power capacity of 240 W.

The device utilizes free-convection cooling, providing silent operation and eliminating the need for maintenance-heavy fans or ventilators. It maintains an efficient operation with an energy efficiency rating of 89%, minimizing power losses and reducing thermal stress.

Durability is assured with an IP20 enclosure suitable for indoor installations, and it operates safely over a broad temperature range from -40°C to 70°C. The unit includes internal protections against overloads and short circuits, reducing risk to connected equipment.

LED indicators on the front panel allow easy status monitoring for system operators. Certified to UL 60950-1, this power supply meets rigorous standards for electrical safety and reliability.

Common industrial use cases include powering security and alarm systems, industrial sensors, transmitters, receivers, and relay modules within electrical control panels or distribution boards.

Supports both AC and DC input voltage for versatile operation. Output voltage is fixed at 24V DC with a current output of 10 A. Compact DIN rail mount design with IP20 rating for indoor use. High efficiency of 89% minimizes energy loss and heat generation.

Wide operating temperature range from -40°C to 70°C suitable for diverse environments. Built-in protections against short circuits and overloads enhance safety. LED indicators provide clear status identification for operational convenience.

Silent free-convection cooling eliminates the need for fans or ventilators. Complies with UL 60950-1 standard for safety and performance. Explore more ABB power supplies and DIN rail mounted devices for your industrial and electronic applications on EnvMart.
